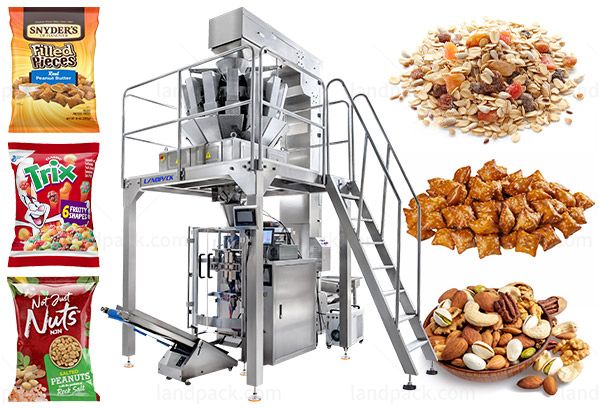

Automatic Almond Vffs Packaging Machine With Linear Weigher
Model: LD-720AS
Application:
Suitable for packing all kinds of grain material, sheet material, strip material, and abnormity material such as almonds, nuts, hazelnut, peanut, pistachio, macadamia nut, cashew, sunflower seeds, peanut, etc.
Advantage:
It can be applied to products of various shapes and sizes, and has strong adaptability.
Application:
Automatic almond vffs packaging machine(LD-720AS) with linear weigher, it can be applied to products of various shapes and sizes, and has strong adaptability.
Examples:
Almonds, nuts, hazelnut, peanut, pistachio, macadamia nut, cashew, sunflower seeds, peanut, etc.
Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Product weight
3. Foil Bag/ Gusset Bag/ Sachet dimension
4. Foil Bag/ Gusset Bag/ Sachet material
Packaging Exambers:
Model | LD-420C | LD-520C | LD-720C |
| Film Width | Max.420mm | Max.520mm | Max.720mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm |
| Roll Diameter | Max.320mm | Max.320mm | Max.320mm |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Measuring Range | 150-1500ml | 2000ml | 4000ml |
| Packing Speed | 5-60 bags/min | 5-60 bags/min | 5-55 bags/min |
| Power | 220V, 50/60Hz, 2KW | 220V, 50/60Hz, 3KW | 220V, 50/60Hz, 3KW |
| Machine Size(L*W*H) | 1217*1015*1343mm | 1488*1080*1490mm | 1780*1350*2050mm |
| Machine Weight | About 650kg | About 680kg | About 750kg |
| Option Device | 1. Date Printing, 2. Hole Punching Device(Pinhole, Round hole, the butterfly hole), 3. Air-filling Device, 4. Tear Notch Device | ||
1. New design with perfect fashion, more reasonable structure, and more advanced technology.
2. Imported PLC control system, colorful touch screen, easy operation, Intuitionistic and efficient.
3. Standard positioning with imported servo film transporting system and mark sensor, excellent capability for complete machine, perfect packaging.
4. With auto warning protection function to minimize loss.
5. Various kinds of bags, could provide the hand hole bag, link bag, etc.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
