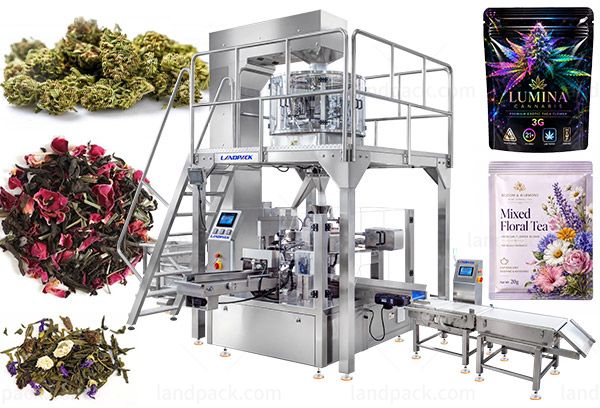

High-Precision Cannabis Premade Pouch Packing Machine 8 Station Rotary Packaging Machine
Model: LD-8230
Automatic premade pouch packing machine with multihead weighing, ribbon coding, double sealing and finished pouch weight inspection.
Application:
Cannabis Packaging Machine is designed for cannabis buds, dried cannabis flowers, CBD flowers, hemp products, cannabis herbal materials, dried herbs, and botanical materials.
Application:
It can be used in tea processing, snack food, dried fruit and nut, confectionery, grain, agricultural product and health food production lines where automatic weighing, pouch feeding, coding, filling, sealing and weight inspection are required. Such as chrysanthemum flowers, mixed herbal tea, dried fruit pieces, roasted peanuts, cashew nuts, almonds, sunflower seeds, pumpkin seeds, candy, chocolate beans, granola, breakfast cereal, puffed snacks, dried mushrooms, goji berries, red dates, raisins, coffee beans, spice pieces, beans, rice, pet treats and other free-flowing granular or irregular solid products.
Package Type:
Suitable for premade stand-up pouches, zipper pouches and flat pouches made from laminated heat-sealable packaging materials.
Workflow:
Premade Pouch Feeding → Bag Opening → Product Weighing → Filling → Vibration Settling → Sealing → Date Coding → Weight Checking → Finished Bag Output
| Type | LD-8230 | LD-8260 | LD-8300 | LD-8400 |
| Bag Type | 3-side, 4 side sealing bag, doypack, box pouch, zipper pouch, stand up pouch, side gusset bag, etc. | |||
| Bag Size | 150-380mm*80-230mm (L*W) | 150-380mm/140-260mm (L*W) | 150-430mm/180-300mm (L*W) | 200-500mm/270-400mm (L*W) |
| Filling Range | 10g-1000g | 1500g | 2000g | 3000g |
| Packing Speed | 20-60 bags/min | 20-50 bags/min | 10-40 bags/min | 10-25 bags/min |
| Voltage | Standard AC380V+10%, three-phase 50HZ; | |||
| Total Power | 3.75KW | 3.75KW | 3.85KW | 4.5KW |
| Air Consumption | 0.4m³/min | |||
| Dimensions | 1740*1380*1450mm(L*W*H) | 2460*1830*1460mm(L*W*H) | 2260*2200*1520mm(L*W*H) | |
| Machine Weight | 1300KG | 1300KG | 1700KG | 2000KG |

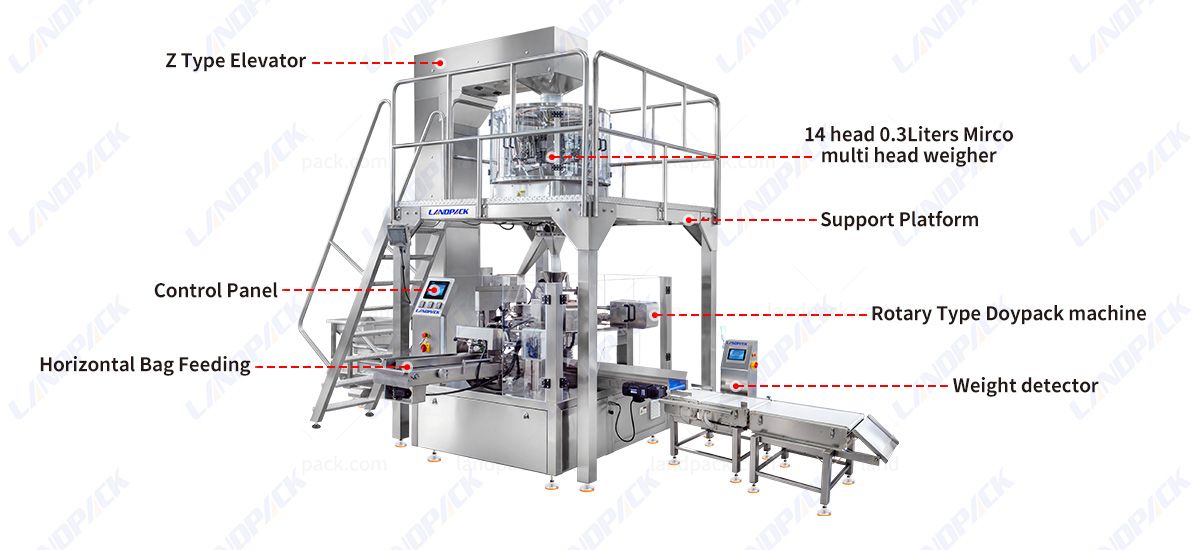

Machine Key Components:
Feature:

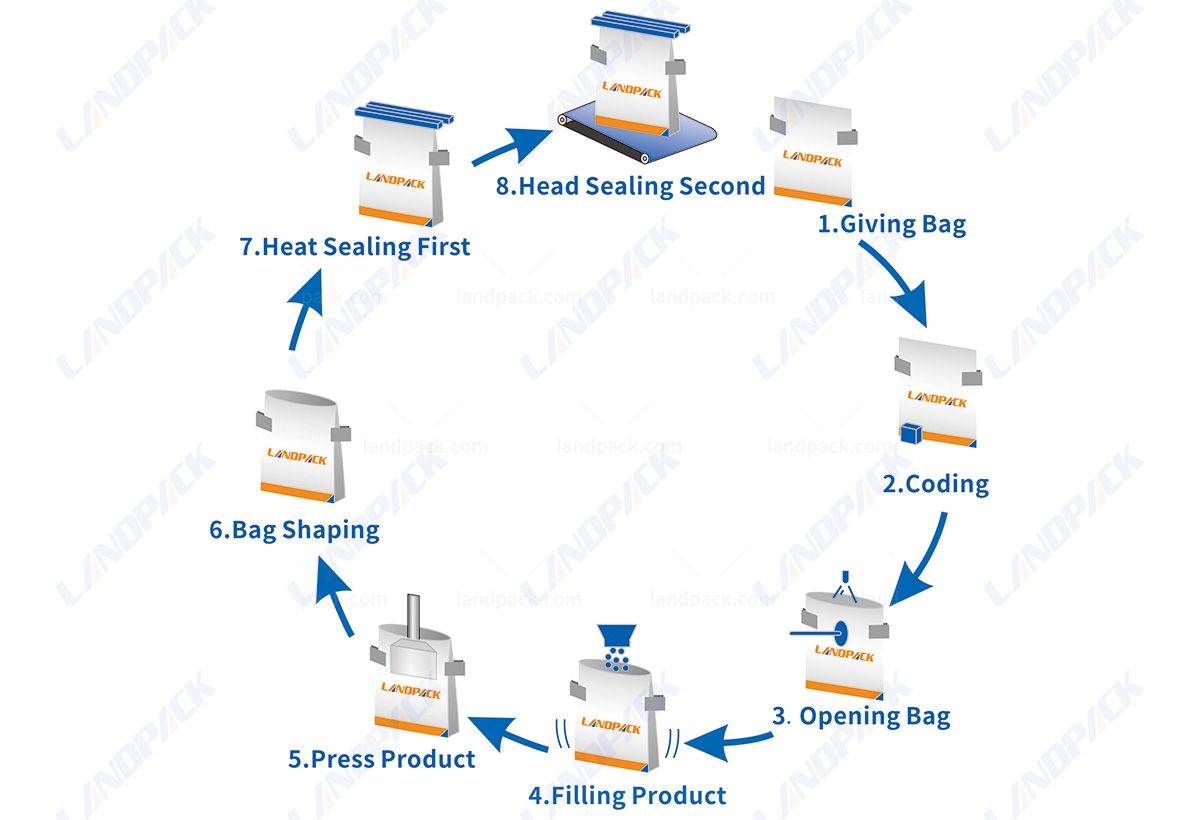

1. The eight-station rotary pouch system completes pouch feeding, coding, opening, filling, shaping and sealing in one continuous process.

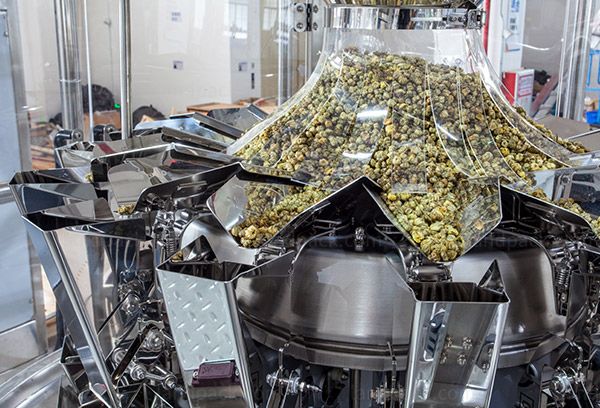

2. The high-precision multihead weigher measures lightweight and irregular flower tea products according to the preset target weight.
3. The weighing system can remove abnormal portions before filling to reduce incorrect product discharge into the pouch.
4. The ribbon coder prints production dates, batch numbers and other coding information directly on the premade pouch.
5. The pouch opening detection system helps prevent product filling when a pouch is missing or not opened correctly.
6. The product settling and pouch shaping stations help loose flower tea enter the pouch and keep the package profile organized before sealing.
7. Two heat-sealing stations reinforce the pouch opening and improve sealing consistency for laminated premade bags.
8. The downstream checkweigher verifies each finished pouch and rejects packages outside the configured weight range.
9. The PLC and HMI allow operators to adjust pouch handling, weighing, sealing temperature and production parameters from one control interface.
10. The line can be connected with material elevators, feeding conveyors, metal detectors and finished product collection systems according to production requirements.
