Automatic Case Packing Robot Carton Palletizing Packing Systems End of Line Packaging Solutions
Model: End-of-Line Packaging System
This end-of-line packaging system is suitable for end-of-line carton packaging and palletizing in various industries.
Application:
Suitable for snack cartons, beverage cartons, frozen food cartons, detergent cartons, tissue cartons, cosmetic cartons, medicine cartons, healthcare product boxes.
Application:
This end-of-line packaging system is suitable for automatic carton handling, case packing, sealing and palletizing in the food, beverage, pharmaceutical, healthcare, cosmetic and daily-use industries, such as snack cartons, beverage cartons, frozen food cartons, instant food cartons, detergent cartons, tissue cartons, cosmetic cartons, medicine cartons, healthcare product boxes and other packaged consumer goods.
Package Type:
It is designed for automatic secondary packaging and palletizing of various packaged products, including cartons, bottles, cans, jars, stand-up pouches, pillow bags, making it suitable for complete end-of-line packaging solution in food, daily chemical, pharmaceutical and consumer goods industries.

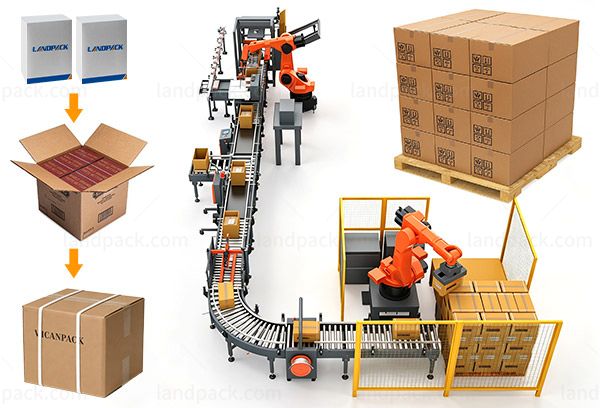

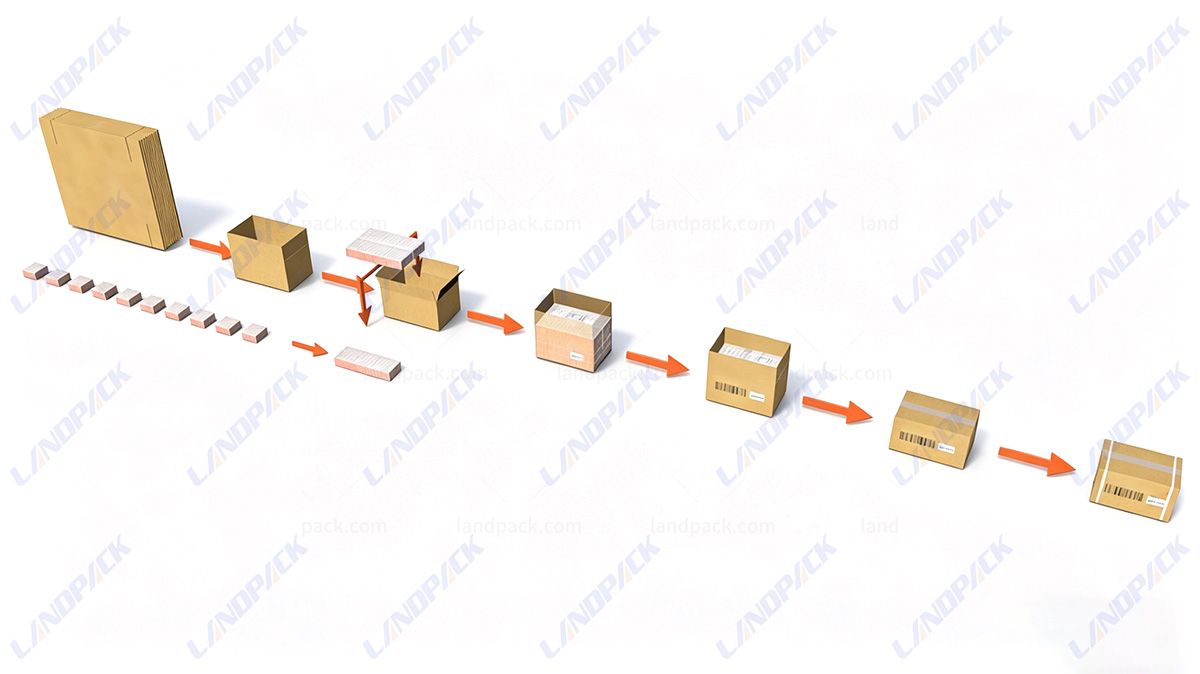

Workflow:
Carton conveying → Product Feeding→ Automatic case packing → Carton sealing→ Carton transfer → Robotic palletizing → Pallet conveying → Finished pallet output
| Box Case Sealer Sealing Machine | |||||
| Model | LD-ZHJ300 | ||||
| Power supply | 220V, 50Hz, 0.75kW | ||||
| Air pressure requirement | 0.5-0.8MPa | ||||
| Machine material | Aluminum + stainless steel | ||||
| Applicable | L: 120-300mm, W: 30-150mm, H: 20-60mm | ||||
| Size of carton | Customizable | ||||
| Box material | 300-450g cardboard paper, corrugated paper | ||||
| Working speed | 30-50 cartons/min | ||||
| Machine size | 4008*1354*1633 mm | ||||
| Weight | About 1500kg | ||||
| Carton erecting machine | |||||
| Carton opening speed | 10-12 cartons/min | ||||
| Carton size range | L: 270-450*W: 150-400*H: 100-400mm (Min and max cannot exist at the same time) | ||||
| Power supply | 220V, 50/60Hz, 1 Phase | ||||
| Power | 2400W | ||||
| Adhesive tape width | 48/60/75mm | ||||
| Carton storage quantity | 80-100pcs(800-1000mm) | ||||
| Air consumption | 450NL/min | ||||
| Air compressing | 6kg/cm³ | ||||
| Discharge table height | 600+30 mm | ||||
| Machine size | L2100*W2100*H1450mm | ||||
| Machine weight | 450Kg | ||||

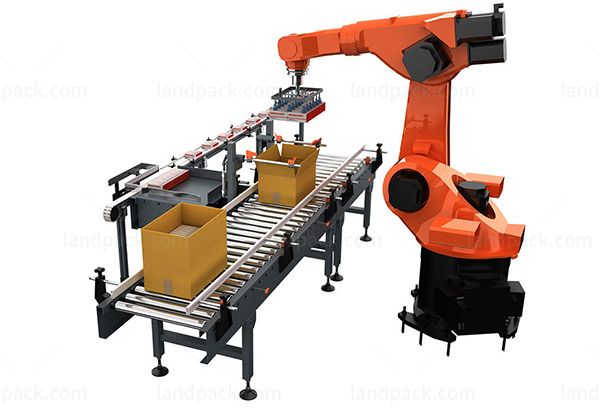

| Automatic Carton Packing Machine | |||||
| Model | LD-B8 | LD-B18 | LD-B30 | LD-B42 | LD-B48 |
| Capacity | 480case/h | 1100case/h | 1800case/h | 2500case/h | 2800case/h |
| Air consumption | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ |
| Power | 3.7KW | 3.7KW | 4.5KW | 4.5KW | 5.2KW |
| Suitable products | Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized) | ||||
| Packing way | Paper carton packer, plastic boxes(customized) | ||||
| Packing method | Side push, drop, servo, sprocket, robot, spider hand(customized) | ||||

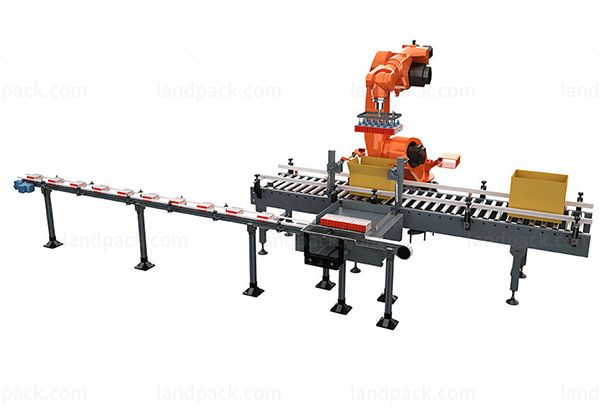

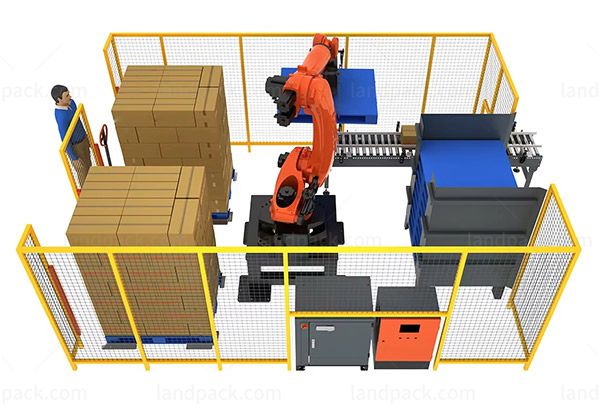

| Automatic Robot palletizer | |||
| Model | LD60-PL | LD120-PL | LD1800-PL |
| Arm Reach | 2000mm | 2400mm | 3060mm |
| Maximum Load | 60kg | 120kg | 180kg |
| Weight | 500kg | 1050kg | 1120kg |
| Pallet Dimensions | 1200*1200 | 1200*1200 | 1400*1400 |
| Palletizing Speed | 8 cycle/min | 8 cycle/min | 8 cycle/min |
| Stretch Wrapping | |
| Pallet Size | L1200 × W1200 mm |
| Turntable Speed | Variable speed with soft start & stop function |
| Wrapping Height | 1800 mm |
| Loading Weight | MP 303B: 2000 kg; MP 303A: 1000 kg |
| Pre-stretch Ratio | 150% |
| Turntable Height | 550 mm |

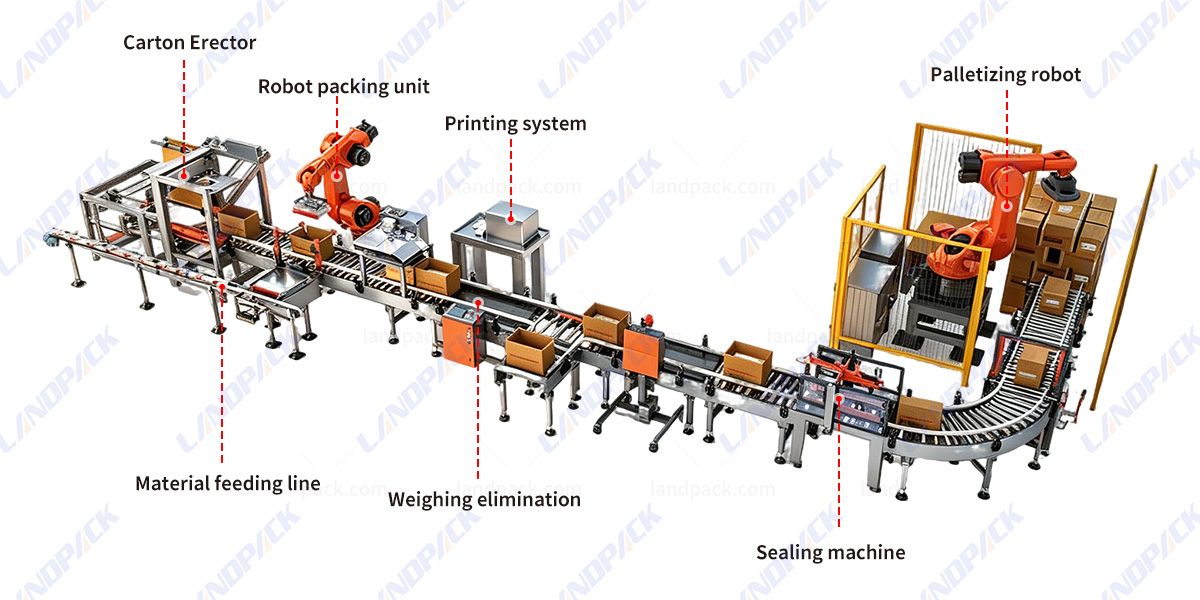

Machine Key Components:
1. Carton Erector 2. Palletizing robot 3. Robot packing unit 4. Printing system 4. Material feeding line 5. Weighing elimination 6. Sealing machine
Feature:
1. Customized secondary packaging solution for cartons, bottles, bags and plastic ampoules.
2. Fully automatic process from carton erecting, product loading, sealing, labeling to strapping.
3. Can connect with robotic palletizing and logistics systems for intelligent factory automation.
4. Fast-loading tape structure makes tape replacement quicker and easier.
5. Heavy-duty motor and durable conveyor system ensure stable long-time operation.
6. Supports large-size cartons with an adjustable height ruler for flexible carton adjustment.
7. Integrated weighing, rejection and label inspection functions improve packaging accuracy and quality control.
