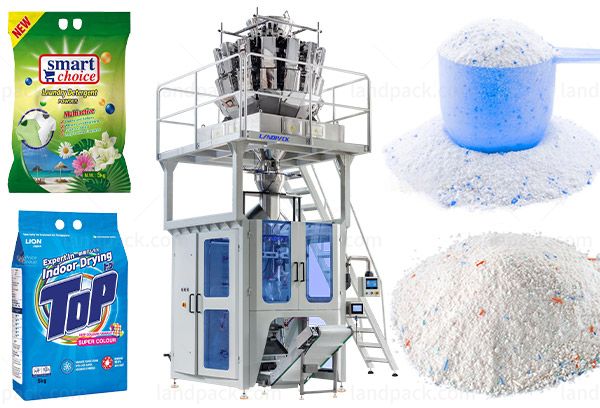

2kg 3kg 5kg Detergent Powder Packing Machine | High-Speed Automatic Filler
Model : LD-900A
Application :
The Big Bag Powder Packaging Machine is engineered for heavy-weight packing of non-liquid powders across chemical, food and agricultural sectors.
Application :
The Big Bag Powder Packaging Machine is engineered for heavy-weight packing of non-liquid powders across chemical, food and agricultural sectors. Featuring full-automatic inside/outside thermal transfer coding, a 14-head 7.5 L electronic weigher for high-speed precision, and pouch widths up to 450 mm.
Examples :
Detergent powder, milk powder, protein powder, spice blends, fertilizer, animal feed, coffee creamer and similar products.
kindly Reminder :
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Sample :
| Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
1. Dual-sided thermal transfer printing automatically marks batch codes, dates, and logos on both bag surfaces for complete traceability and brand consistency.

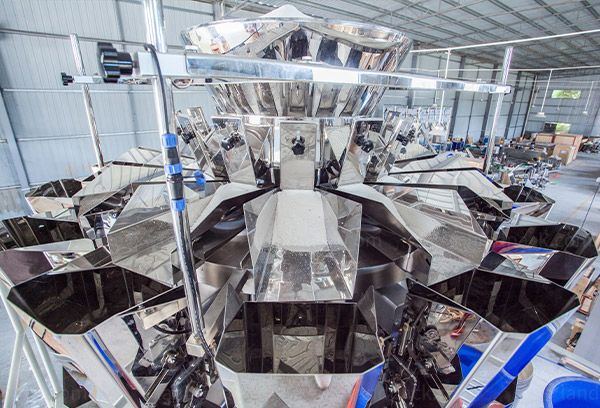

2. High-precision 14-head weighing system with 7.5L hoppers delivers rapid, accurate dosing to optimize fill consistency and reduce product giveaway.
3. Handles wide bags up to 450mm, perfect for bulk packaging of detergents, fertilizers, feed, and other granular/powdered products.

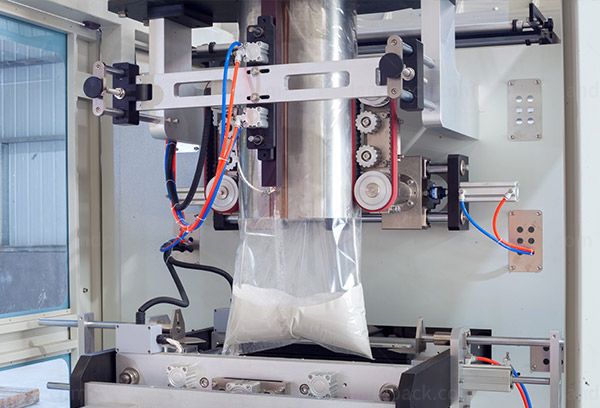

4. Servo-driven film feeding with PLC control ensures precise material alignment, high-speed operation, and self-cleaning dust removal for contamination-free sealing.
5. User-friendly touchscreen interface allows single-command operation, live performance tracking, and swift adjustments between packaging formats.
6. Built-in vacuum dust extraction at filling and sealing stations maintains workspace cleanliness and prevents product cross-mixing.
7. Hygienic stainless-steel design features tool-free disassembly for effortless cleaning, complying with food/pharmaceutical sanitation requirements.
8. Integrated conveyor system with inspection zone enables uninterrupted production flow and quality verification before palletizing.
9. Expandable with multi-screw filler attachment for blending different powders into single bags, increasing formulation flexibility.
10. Robust construction with leveling feet provides vibration-free operation at peak speeds of 90 bags/minute.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
