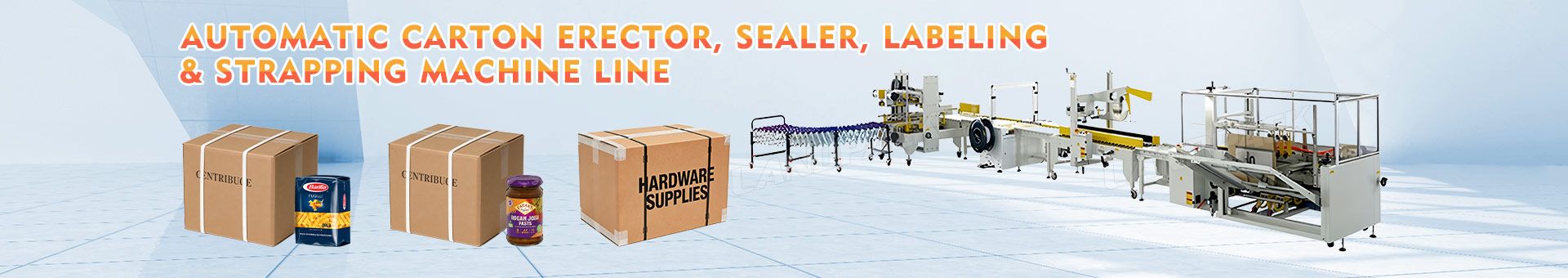

End of line Packaging Case Erector Packer Case Sealer Robotic Case Packing System
Model: End-of-line Packaging System

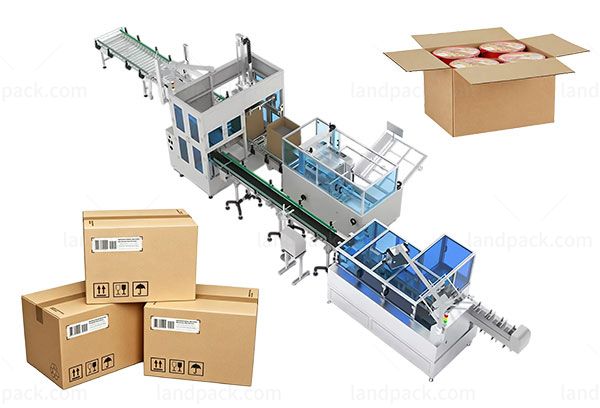

This end-of-line packaging system is suitable for automatic secondary packaging of various products.
Application:
Suitable for snacks, biscuits, frozen food, seasoning products, detergent, tissue, shampoo, cosmetic products, medicine boxes, healthcare products, medical supplies.
Application:
This end-of-line packaging system is suitable for automatic secondary packaging of various products such as snacks, biscuits, frozen food, seasoning products, detergent, tissue, shampoo, cosmetic products, medicine boxes, healthcare products, medical supplies.
Package Type:
The end-of-line packaging system supports various packaged products such as cartons, bottles, cans, stand-up pouches, pillow bags and jars packing into case. It can also connect with robotic palletizing systems to achieve a complete end-of-line packaging solution.
Workflow:

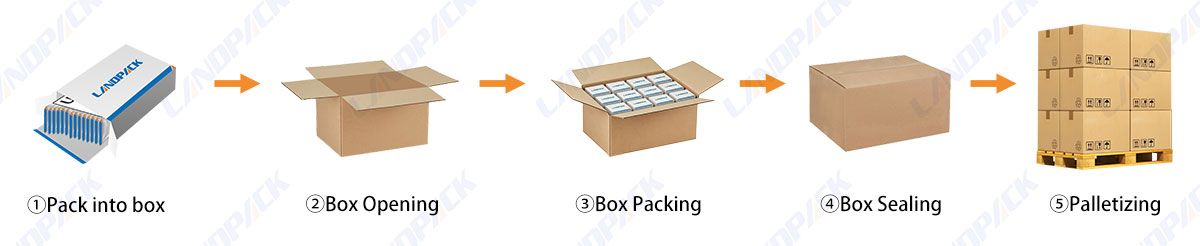

Cartoning → Carton conveying→ Automatic carton grouping → Case Erecting→ Robotic case packing → Case sealing → Finished case output
| Model | LD-60 | LD-60L |
| Cartoning speed | 30-60 Cartons/min | 20-45 Cartons/min |
| Quality requirement | 250-450g/m² (According to box dimensions) | |
| Carton Dimension range (L×W×H) | L: 70-250mm W: 50-180mm H: 20-90mm | L: 120-360mm W: 50-260mm H: 20-90mm |
| Customization | Special size can be customized | |
| Working pressure | ≥ 0.6Mpa | |
| Air consumption | 20m³ | |
| Power supply | 220V / 50Hz | |
| Motor power | 4.5kW | 2kW |
| Machine dimension (L×W×H) | 4528mm x 1630mm x 1950mm | 5630mm x 1821mm x 1950mm |
| Machine weight | 1000kg | 1200kg |
| Box Case Sealer Sealing Machine | |||||
| Model | LD-ZHJ300 | ||||
| Power supply | 220V, 50Hz, 0.75kW | ||||
| Air pressure requirement | 0.5-0.8MPa | ||||
| Machine material | Aluminum + stainless steel | ||||
| Applicable | L: 120-300mm, W: 30-150mm, H: 20-60mm | ||||
| Size of carton | Customizable | ||||
| Box material | 300-450g cardboard paper, corrugated paper | ||||
| Working speed | 30-50 cartons/min | ||||
| Machine size | 4008*1354*1633 mm | ||||
| Weight | About 1500kg | ||||
| Carton erecting machine | |||||
| Carton opening speed | 10-12 cartons/min | ||||
| Carton size range | L: 270-450*W: 150-400*H: 100-400mm (Min and max cannot exist at the same time) | ||||
| Power supply | 220V, 50/60Hz, 1 Phase | ||||
| Power | 2400W | ||||
| Adhesive tape width | 48/60/75mm | ||||
| Carton storage quantity | 80-100pcs(800-1000mm) | ||||
| Air consumption | 450NL/min | ||||
| Air compressing | 6kg/cm³ | ||||
| Discharge table height | 600+30 mm | ||||
| Machine size | L2100*W2100*H1450mm | ||||
| Machine weight | 450Kg | ||||
| Automatic Carton Packing Machine | |||||
| Model | LD-B8 | LD-B18 | LD-B30 | LD-B42 | LD-B48 |
| Capacity | 480case/h | 1100case/h | 1800case/h | 2500case/h | 2800case/h |
| Air consumption | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ |
| Power | 3.7KW | 3.7KW | 4.5KW | 4.5KW | 5.2KW |
| Suitable products | Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized) | ||||
| Packing way | Paper carton packer, plastic boxes(customized) | ||||
| Packing method | Side push, drop, servo, sprocket, robot, spider hand(customized) | ||||

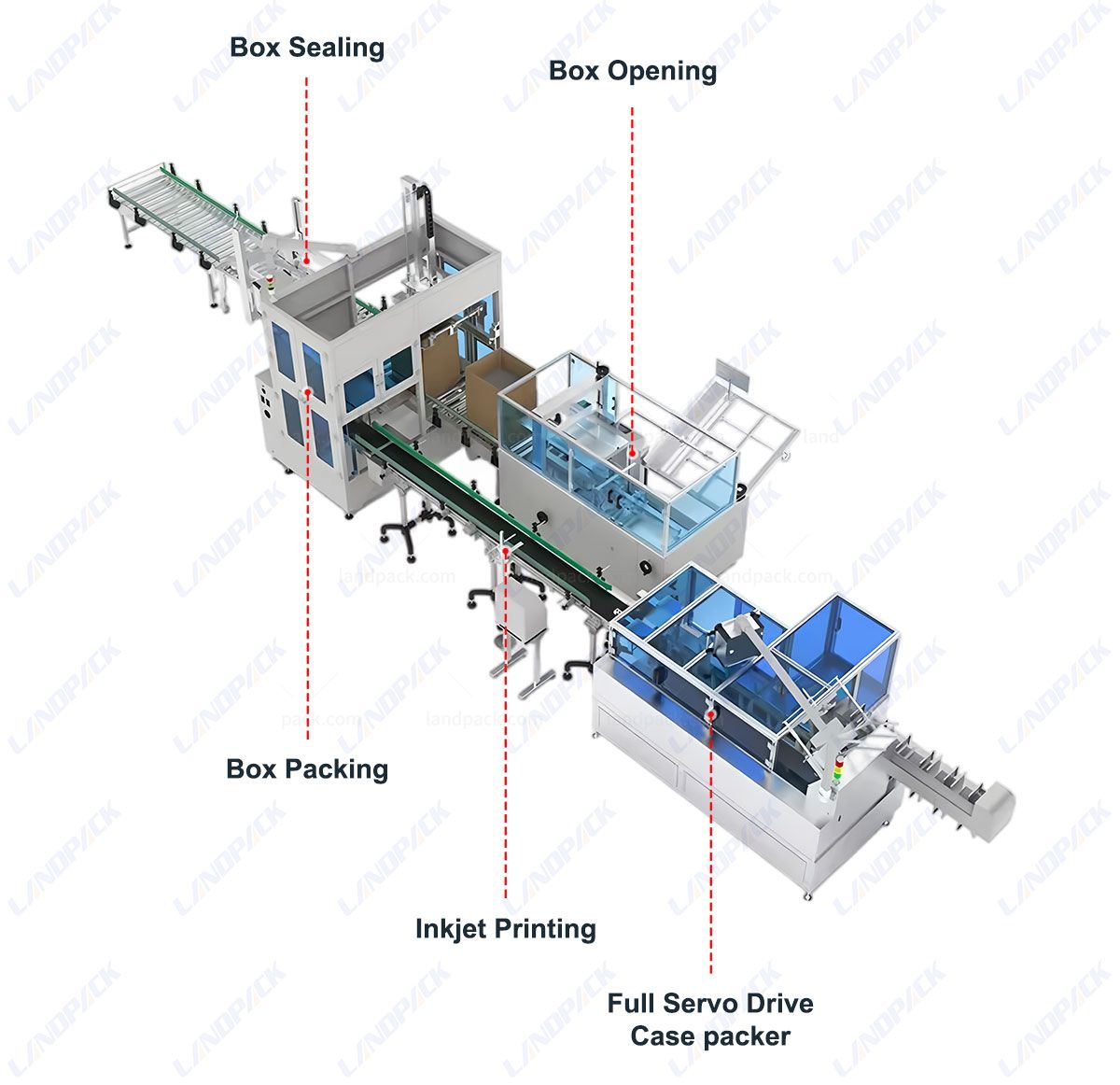

Machine Key Components:
1. Box Sealing 2. Box Opening 3. Box Packing 4. Inkjet Printing 4. Full Servo Drive Case packer
Feature:
1. Fully automatic carton erecting, packing and sealing greatly improves production efficiency.
2. Flexible adjustment for different carton sizes and packaging requirements.
3. Servo-controlled robotic system ensures accurate and stable product loading.
4. Carton erecting success rate reaches ≥99.9% for smooth and reliable operation.
5. Imported cylinders provide fast, stable and low-noise carton sealing performance.
6. Real-time coding and labeling support product traceability and quality management.
7. Equipped with alarm, emergency stop and safety protection systems for safer operation.
