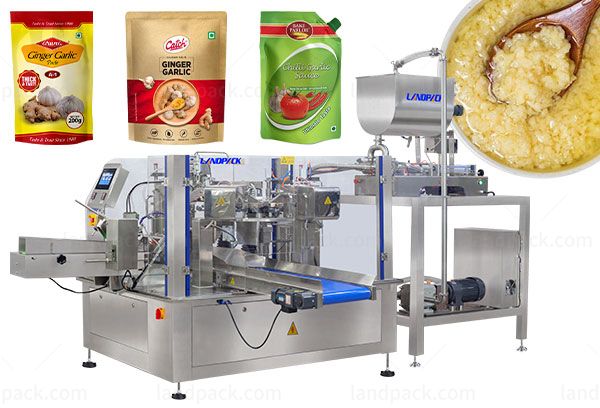

Automatic Garlic Paste Rotary Spout Pouch Doypack Filling Sealing Machine
Model: LD8200
Application:
It is suitable for the quantitative filling of various pastes such as garlic paste, mayonnaise, ketchup, cream, tomato sauce, hot sauce, chili sauce, honey, chocolate sauce, etc.
Advantages:
Suitable for different sizes of bags, the range is flexible and adjustable.
Application:
It is suitable for the quantitative filling of various pastes such as garlic paste, mayonnaise, ketchup, cream, tomato sauce, hot sauce, chili sauce, honey, chocolate sauce, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Sample:
| Model | LD-8200/LD-8250 |
| Packing material | Spout bags, zipper bags, stand up pouches, etc |
| Size | W: 70-200/100-250 |
| Filling range | 10-1000g/20-2500g |
| Packing speed | 40-60 bags/min |
| Average precision | ≤ ±1% |
| Total power | 2.5KW |
| Dimensions | 1900mm*1570mm*1700mm (L*W*H) |
| Workflow | giving bag→coding →opening →filling 1 →filling 2→auxiliary→exhaust→heat sealing→forming and output product |
| Main standard parts | 1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system |

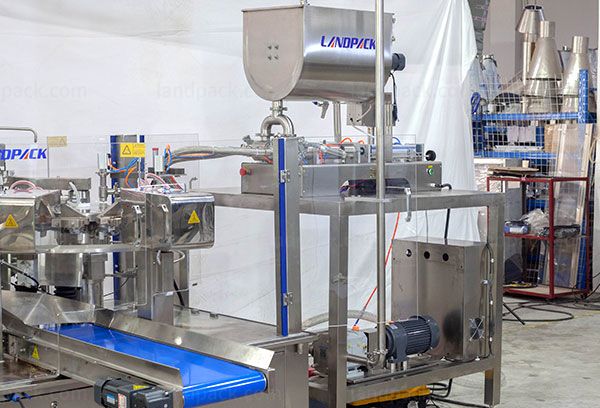

1. Automatic Rotor Pump Feeding to Material Bin: The rotor pump ensures efficient and automatic feeding of materials into the storage bin.

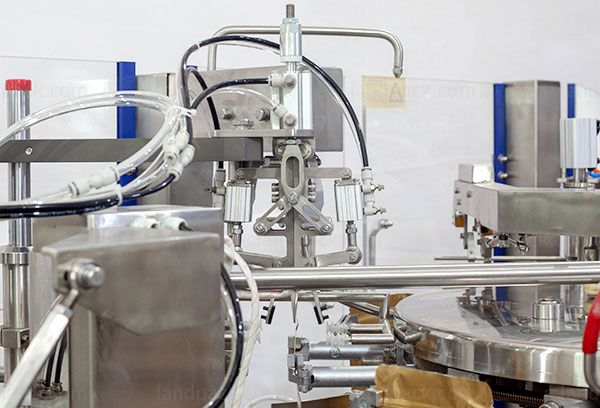

2. Zipper Bag Opening: Seamlessly opens zipper bags for easy filling.

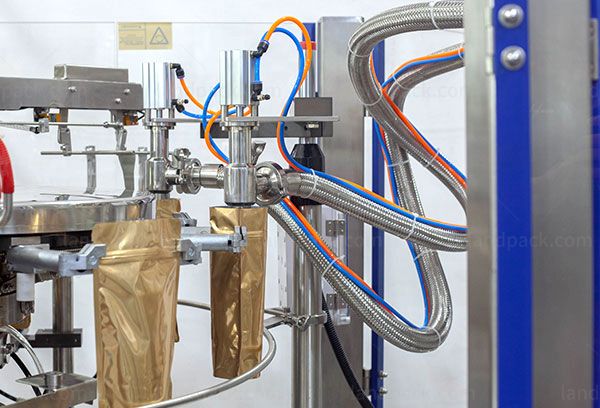

3. Dual-Head Filling: Equipped with dual filling heads, enhancing productivity and accuracy.
Workflow:
1. Piston metering device
2. Horizontal bags feeding
3. Date printing
4. Zip lock opening
5. Up/down bag opening
6. Double heads filling
7. Twice heating sealing
8. Finished product output
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
