Application:
A large barrel filling machine is ideal for efficiently filling liquids into containers ranging from 5L to 200L. It is widely used across various industries for packaging high-volume liquid products.
Typical applications include edible oils, soy sauce, vinegar, and juice concentrates in the food industry;
lubricants, solvents, detergents, and chemicals in the industrial sector;
Liquid fertilizers and pesticides in agriculture, as well as personal care products like shampoo and body wash.
Additionally, it can be adapted for pharmaceutical or medical-grade liquids such as disinfectants and alcohol, depending on compliance requirements.
Advantage:
The product adopts advanced general control technology by using a PLC touch screen, and intelligent filling to make operation simpler, more convenient, and easier to study, can set the filling amount and filling speed through the touch screen.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Sample:
Parameters:
| Model | LFH-HX-4 |
| Filling Range | 50-1000ml(customizable) |
| Filling Speed | 15-25 Bottles/min (100-500ml range) |
| Measurement Accuracy | ±1% |
| Bottle Diameter | Φ30mm-Φ135mm(customizable) |
| Bottle Height | 40mm-200mm(customizable) |
| Control system | PLC |
| Total production line power | 6.5KW |
| Power supply | 220V、50Hz |
| Airconsumption | 0.8-1.2m³/min |
| Equipment material | 304 |
| Description of main packaging process: | unscramble bottle → 4 head piston filling → lifting upper cover → servo capping → aluminum foil sealing → labeling → receiving bottle |
Features:

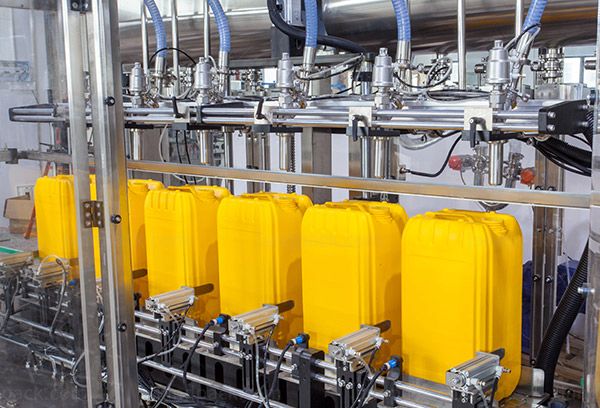

1. Precision Filling Accuracy – Advanced weighing technology guarantees precise filling for each bucket, reducing waste and ensuring batch consistency.
2. Fully Integrated Automation – Incorporates automatic filling, inner lid placement, sealing, and labeling to enhance productivity and cut down on manual operations.
3. Intuitive Touchscreen Interface – Smart PLC system with adjustable settings and live status updates for easy control and minimal training.

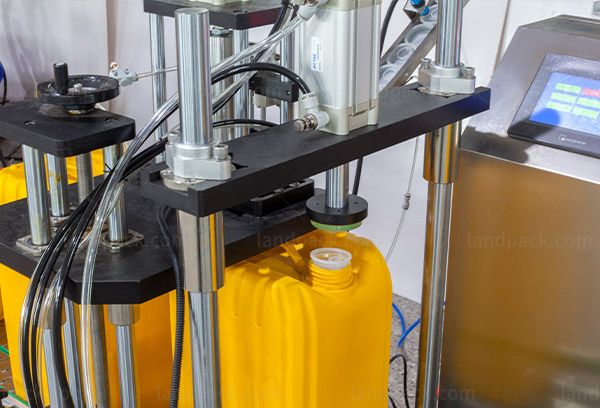

4. Reliable Inner Lid Application – Automatically installs the inner cap securely, enhancing leak prevention and product shelf life.

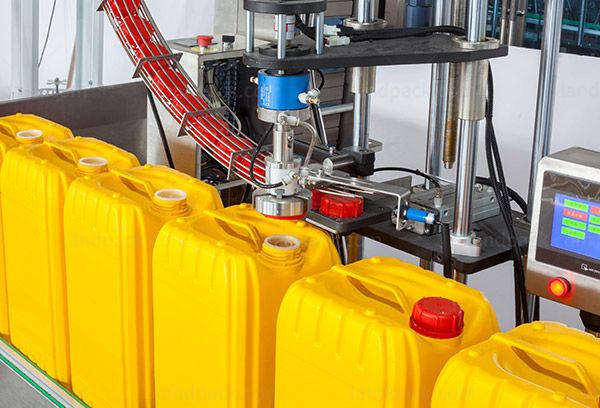

5. Servo-Driven Capping Mechanism – Applies consistent capping force for tight, uniform seals without damaging the container.
6. Versatile Bucket Compatibility – Easily adapts to various large containers, ranging from 5L to 30L, with quick changeovers.
7. Durable, Corrosion-Resistant Build – Built with chemical-resistant materials, suitable for filling corrosive or reactive liquids such as fertilizer solutions.
