High Accuracy Medicine Pills Capsule Counting Rotary Doypack Packing Machine
Model: LD-8230A

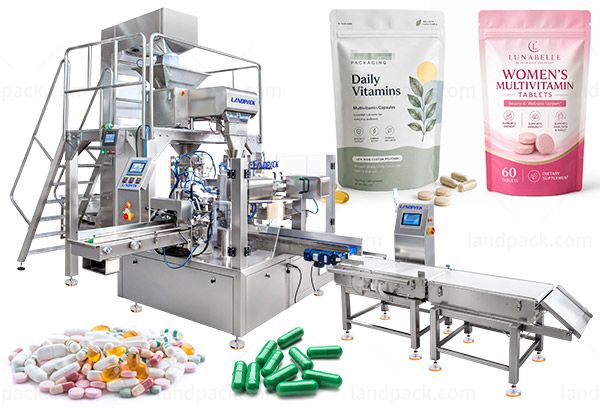

The automatic premade pouch packing line integrates an eight-station pouch packing machine, 16-channel counting machine, Z-type elevator and checkweigher. It can automatically complete capsule feeding, counting, filling, pouch opening, sealing and weight inspection.
Application:
The Capsule Counting Packaging Machine For Premade Pouch is suitable for Capsules, tablets, coated tablets, effervescent tablets and healthcare medicines, Vitamin capsules, fish oil softgels, probiotics, etc.
Application:
The Capsule Counting Packaging Machine For Premade Pouch is suitable for Capsules, tablets, coated tablets, effervescent tablets and healthcare medicines, Vitamin capsules, fish oil softgels, probiotics, collagen tablets and dietary supplements, Candy tablets, mint tablets, chewing tablets and functional food products.
Package Type:
The Capsule Counting Packaging Machine supports various premade pouch types, including stand-up pouches, zipper pouches, doypack, premade pouches, spout pouches, and customized premade bags.
Workflow:

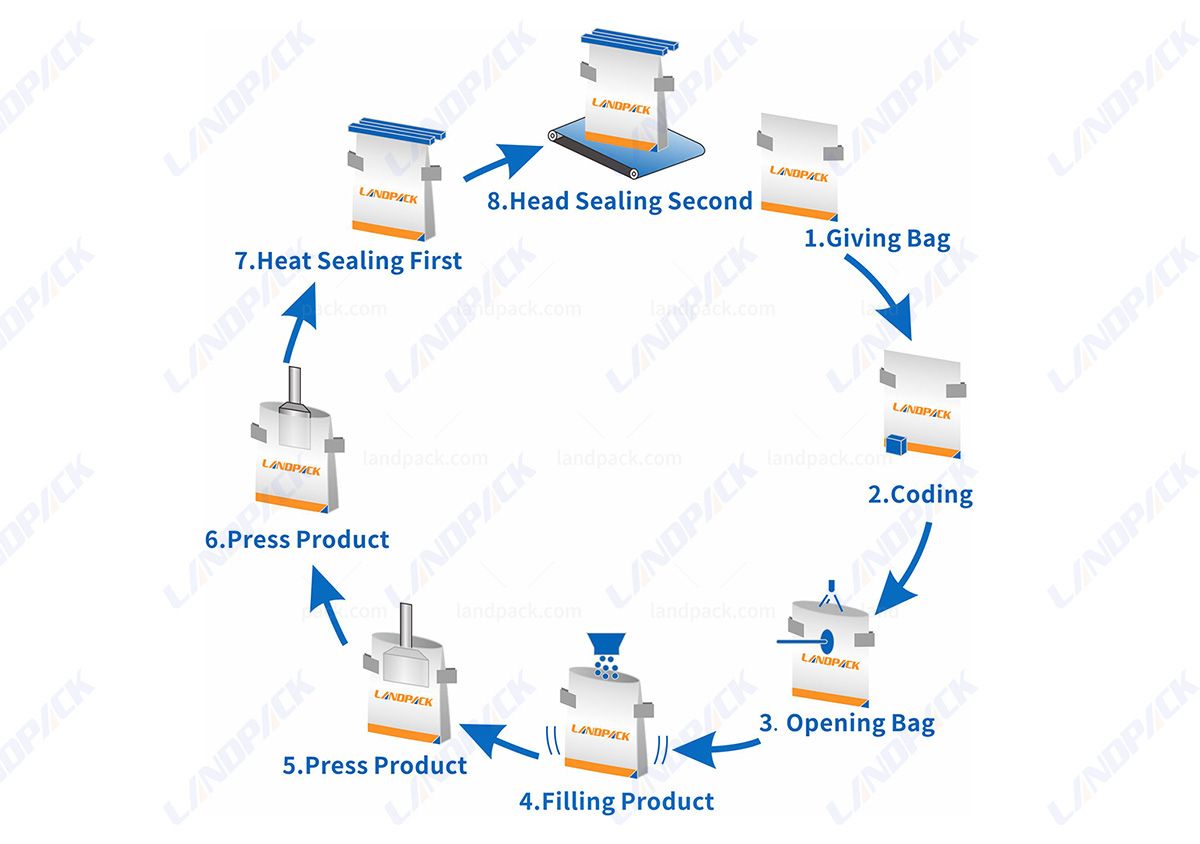

Material Feeding → Capsule Counting → Pouch Feeding → Pouch Opening → Product Filling → Heat Sealing → Weight Inspection → Finished Product Discharge
| Type | LD-8230 | LD-8260 | LD-8300 | LD-8400 |
| Bag Type | 3-side, 4 side sealing bag, doypack, box pouch, zipper pouch, stand up pouch, side gusset bag, etc. | |||
| Bag Size | 150-380mm*80-230mm (L*W) | 150-380mm/140-260mm (L*W) | 150-430mm/180-300mm (L*W) | 200-500mm/270-400mm (L*W) |
| Filling Range | 10g-1000g | 1500g | 2000g | 3000g |
| Packing Speed | 20-60 bags/min | 20-50 bags/min | 10-40 bags/min | 10-25 bags/min |
| Voltage | Standard AC380V+10%, three-phase 50HZ; | |||
| Total Power | 3.75KW | 3.75KW | 3.85KW | 4.5KW |
| Air Consumption | 0.4m³/min | |||
| Dimensions | 1740*1380*1450mm(L*W*H) | 2460*1830*1460mm(L*W*H) | 2260*2200*1520mm(L*W*H) | |
| Machine Weight | 1300KG | 1300KG | 1700KG | 2000KG |

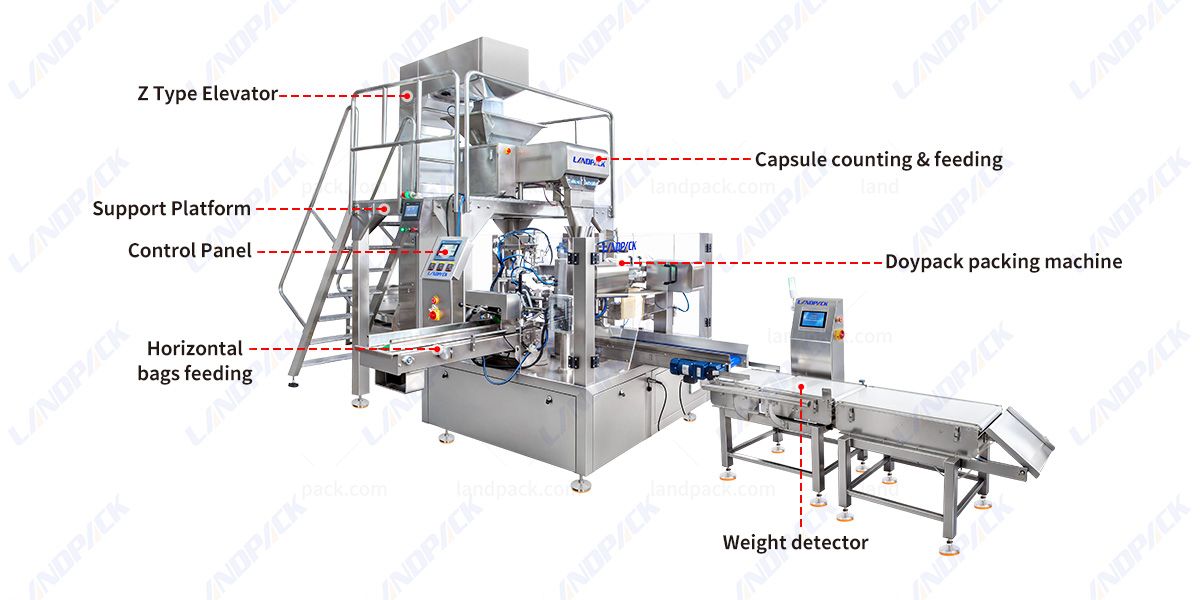

Machine Key Components:
1. Z Type Elevator 2. Support Platform 3. Control Panel 4. Horizontal Bags Feeding 5. Capsule Counting & Feeding 6. Doypack Packing Machine 7. Weight Detector
Feature:
1. SUS304 stainless steel construction, fully compliant with GMP requirements.
2. Customized 16-channel counting system ensures high counting accuracy for tablets and capsules.
3. Siemens PLC and touch screen control for easy operation and stable performance.
4. One-touch bag width adjustment, supporting premade pouches up to 230mm wide.
5. Automatic zipper pouch opening with top and bottom vacuum suction cups.
6. Intelligent "No Bag Open, No Fill" function reduces product waste.
7. Vibration settling, product pressing and double sealing ensure neat and secure pouch sealing.
8. Integrated check weigher verifies finished pouch weight for consistent packaging quality.
