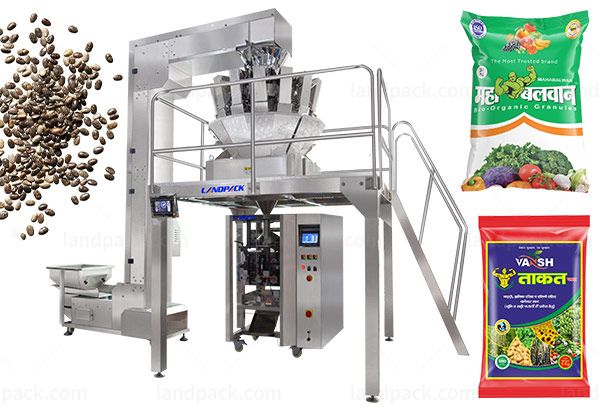

Full Automatic Seeds Multihead Weigher Packing Machine
Model: LD-420A
Application:
Suitable for weighing and packing all kinds of grain material, sheet material, strip material, and abnormity material such as seeds, vegetable seeds, flower seeds, beef jerky, biltong, dry fruit, pet food, candy, peanut, nuts, beans, potato chips, almond, etc.
Application:
Full automatic seeds multi-head weigher packing machine(LD-420A), suitable for weighing and packing all kinds of grain material.
Examples:
Seeds, vegetable seeds, flower seeds, beef jerky, biltong, dry fruit, pet food, candy, peanut, nuts, beans, potato chips, almonds, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Examples:
| Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
1. Multi-head combined weigher, improve metering speed and accuracy.
2. 7-inch touch screen, easy operation, and multiple languages for choice.
3. Imported PLC system, machine performance is stable and easy for parameters adjusting.
4. With a memory function for storage of ten sets of parameters. Easy to change packing product.
5. Separate PID temperature controller, suitable for various packing materials.
6. Multi-union roll film pulling system makes film running more smooth.
7. Adopt a double servo film-dragging structure, enabling stable bag forming for perfect bag shape.
8. Sophisticated sealing framework achieves the consistency of bag sealing and cutting.
9. Machine automatically finishes the process of filling, metering, bag forming, date printing, sealing, and packing.
10. Low loss, labor saving, easy for operation and maintenance.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
