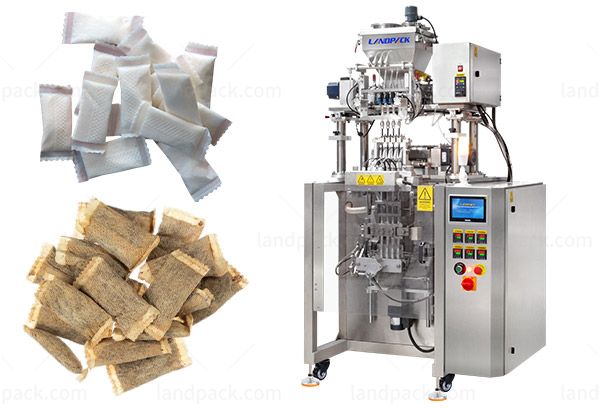

Automatic Snus Packing Machine Multi Lane Snuff Stick Packing Machine
Model: LDBF-280D
Automatic multi-lane snus powder packing machine for stick pack and sachet packaging, designed for high-speed, high-precision filling and sealing of powder materials in food, pharmaceutical and chemical industries.
Application:
Suitable for suns powder, nicotine powder, coffee powder, milk powder, spice powder, coco powder, etc.
Application:
Suitable for automatic packaging of various powder and fine granular materials such as snus powder, nicotine powder, coffee powder, milk powder, protein powder, tea powder, spice powder, pharmaceutical powder and chemical powders. Widely used in food, pharmaceutical, chemical and daily-use industries for high-speed stick pack or sachet packaging. Compatible with materials requiring precise dosing, hygienic packing and high-efficiency multi-lane production.
Package Type:
Stick pack / Sachet / Back sealing / 3-side sealing / Multi-lane strip packaging

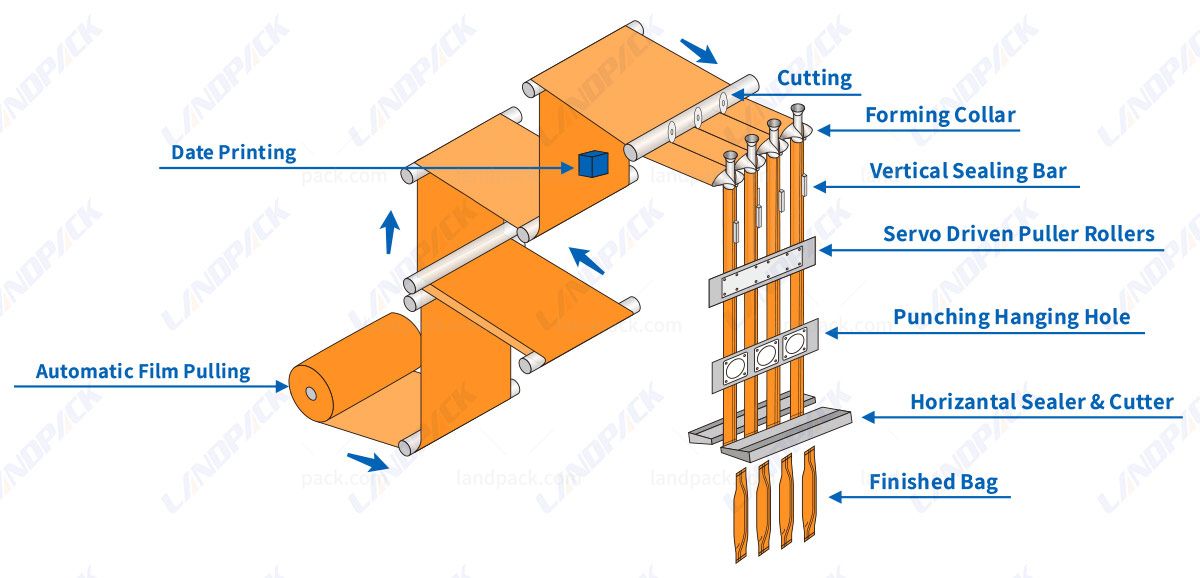

Workflow:
Material feeding → Multi-lane forming → Filling → Sealing → Cutting → Finished pouch output
| Model | LD-280BF | LD-560BF |
| Lane number | 4-6 Line | 8-12 Line |
| Filling Method | 1.Volumetric cup; 2. Weigher | |
| Capacity | Max.35 cycle/ min | |
| Sachat Size | L:50-180mm; W:17-30mm | L:50-180mm; W:17-30mm |
| Film weidth & Thickness | Max.280mm, 0.07-0.10mm | Max.560mm, 0.07-0.10mm |
| Sealing type | Back sealing/Stick bag | Back sealing/Stick bag |
| Cutting type | 1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Irregular | |
| Air & Powder | 0.8Mpa 0.8m3/min; 3.5kw | 0.8Mpa 0.8m3/min; 5.5kw |
| Dimension & weight | 1385*918*2005mm;350kg | 1685*1300*2005mm;550kg |

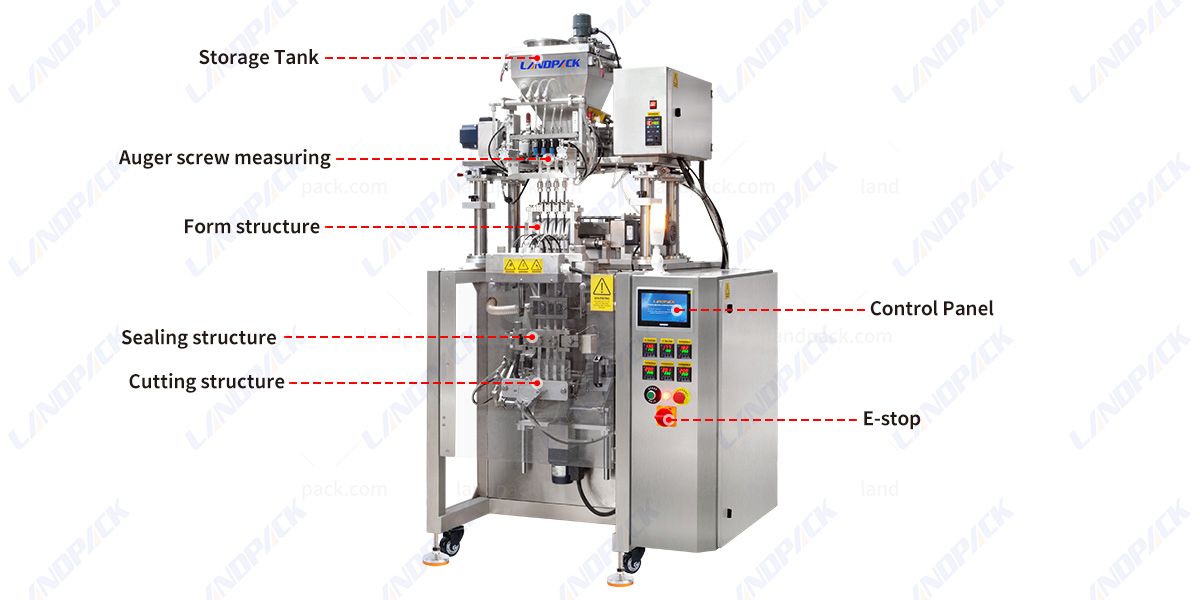

Machine Key Components:
1. Storage Tank 2. Auger Screw Measuring 3. Form Structure 4. Sealing Structure 5. Cutting Structure 6. Control Panel 7. E-stop
Feature:
1. High-speed multi-lane design enables simultaneous packaging to significantly increase production capacity.
2. Accurate auger or volumetric dosing system ensures consistent filling weight for each lane.
3. Automatic process integrates forming, filling, sealing and cutting in one system.
4. Advanced PLC control with touch screen interface allows easy parameter adjustment and stable operation.
5. Stable film feeding and correction system ensures precise bag forming and sealing quality.
6. Suitable for a wide range of packaging materials such as laminated film, paper film and composite film.
