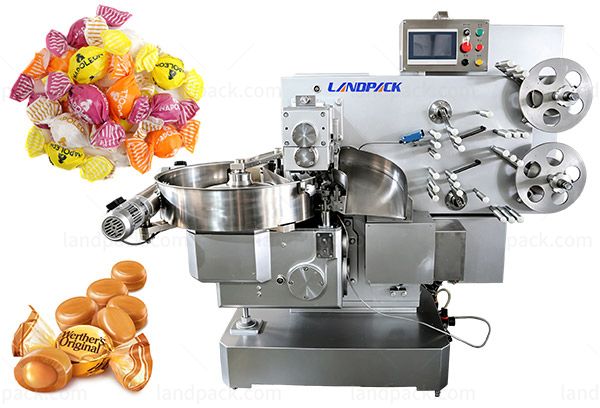

Double Twist Candy Packing Machine Chocolate Toffee Wrapping Machine
Model: Mini Double Twist Wrapping Machine
Automatic double twist wrapping machine for hard candy, toffee and chocolate, with rotary feeding, film forming, double-end twisting and high-speed output.
Application:
This mini double twist candy wrapping machine is suitable for automatically wrapping hard candy, soft candy, fruit candy, milk candy, coffee candy and other small confectionery products.
Application:
It can be used in candy, chocolate and snack production lines where automatic product feeding, film wrapping and double-end twisting are required. Such as boiled candy, fruit candy, mint candy, coffee candy, milk candy, herbal candy, caramel candy, chewy candy, fruit chews, chocolate candy, filled chocolate and chocolate toffee.
Package Type:
Suitable for individual double-twist wrapping with cellophane, PVC, polypropylene film, wax paper and laminated wrapping materials.
Workflow:

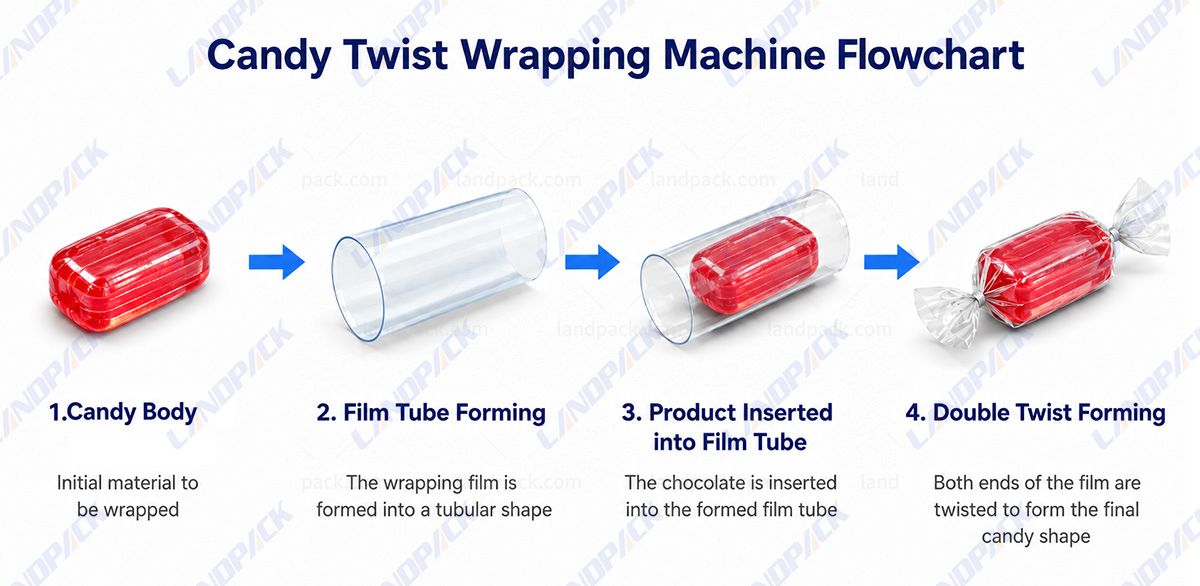

Candy Feeding → Product Sorting → Wrapping Film Feeding → Film Tube Forming → Candy Inserting → Double-End Twisting → Finished Product Output
| Parameter | Specification |
|---|---|
| Packing Speed | 100–400 pieces/min |
| Product Size | L: 12–32 mm; W: 12–26 mm; H: 6–25 mm |
| Wrapping Material | Cellophane, PVC, polypropylene film, wax paper, laminated film |
| Product Shape | Oval, cylindrical, square, spherical, or round tablet |
| Total Power | 2.5 kW |
| Power Supply | 380 V, 50 Hz |
| Machine Dimensions | 1910 × 1100 × 1610 mm |
| Machine Weight | Approx. 128 kg |
Machine Key Components:

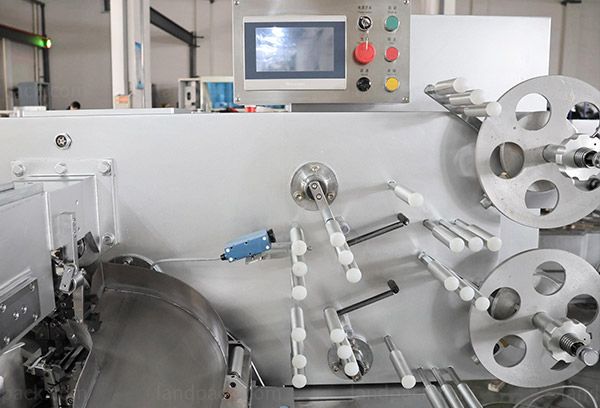

1Material Tray 2. Touch Screen Interface 3. Double Paper Rollers 4. Twist Part 5. Finished Product Output
Feature:
1. Rotary feeding tray arranges candy automatically and transfers each piece into the wrapping section.

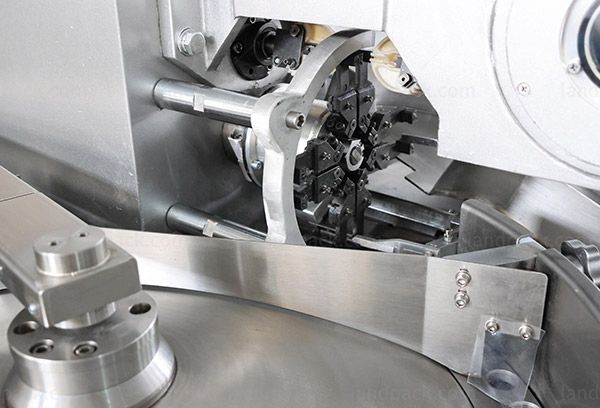

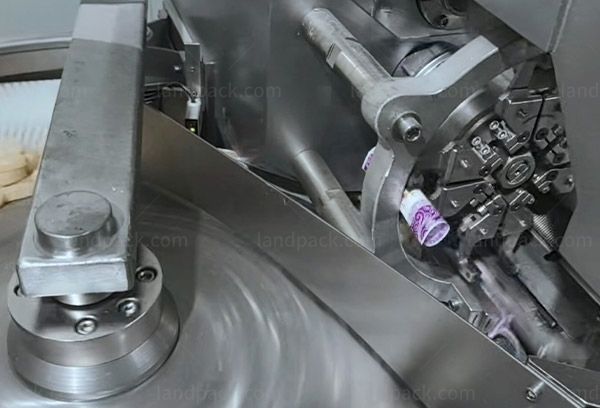

2. Double-twist mechanism twists both ends of the wrapper to form the finished candy package.
3. Single-layer or double-layer paper feeding can be selected according to the wrapping material and product design.|
4. Frequency-converter speed adjustment allows operators to match the machine speed to different candy sizes.
5. Continuous product detection helps reduce empty wrappers during automatic production.
6. Touch screen control provides access to operating settings and production adjustments.
7. The machine handles oval, cylindrical, square, spherical and round tablet products within the specified size range.
