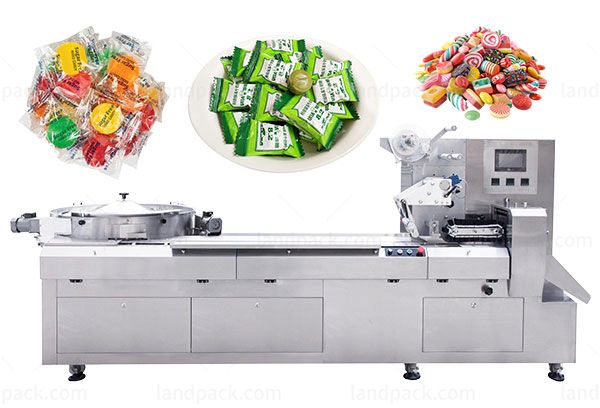

Automatic Hard Candy Pillow Flow Wrapping Packing Machine with Feeding System
Model:
Hard candy wrapping machine with sorting tray, feeding system and pillow flow wrapping, packing hard candy up to 1000 bags/min.
Application:
Ideal for high-speed pillow packing of various block materials, including square, spherical, and uniquely shaped items. Suitable for products like hard candy, toffee, chewing gum, marshmallows, bubble gum, biscuits, cookies, etc.
Application:
It can be used in confectionery, chocolate, snack food and processed food production lines where automatic sorting, feeding, film wrapping, sealing and cutting are required. Such as hard candy, soft candy, milk candy, fruit candy, mint candy, chewy candy, gummy candy, jelly candy, marshmallow, chocolate cubes, filled chocolate, mini chocolate bars, preserved fruit, beef cubes and coconut bars.
Package Type:
Suitable for heat-sealable roll film formed into individual pillow bags with longitudinal sealing and crimped end seals.

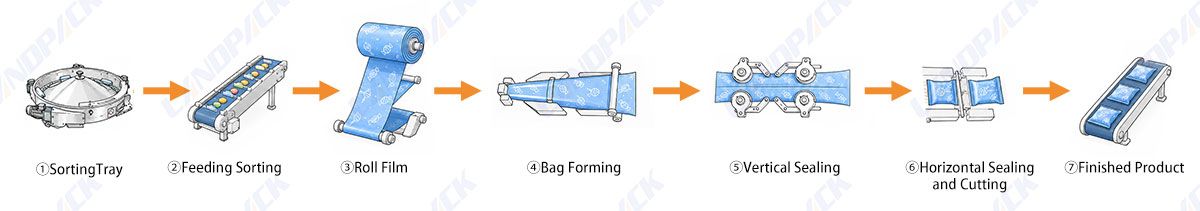

Workflow:
Bulk Product Feeding → Rotary Sorting → Product Alignment → Conveyor Chain Feeding → Film Unwinding → Bag Forming → Finished Pack Output
| Automatic Hard Candy Pillow Flow Wrapping Packing Machine | |
| Model No. | LD-ZB900 |
| Packing speed: | 50-1000PPM |
| Total Power | 3.5KW |
| Weight | 800KG |
| Dimensions | 3450×1300×1600mm |
| Compatible Products | Discs, spheres, squares, rectangles, ellipses, cylinders, etc. |
| Bag Length | 45-120mm |
| Voltage | 220/380V 50Hz |

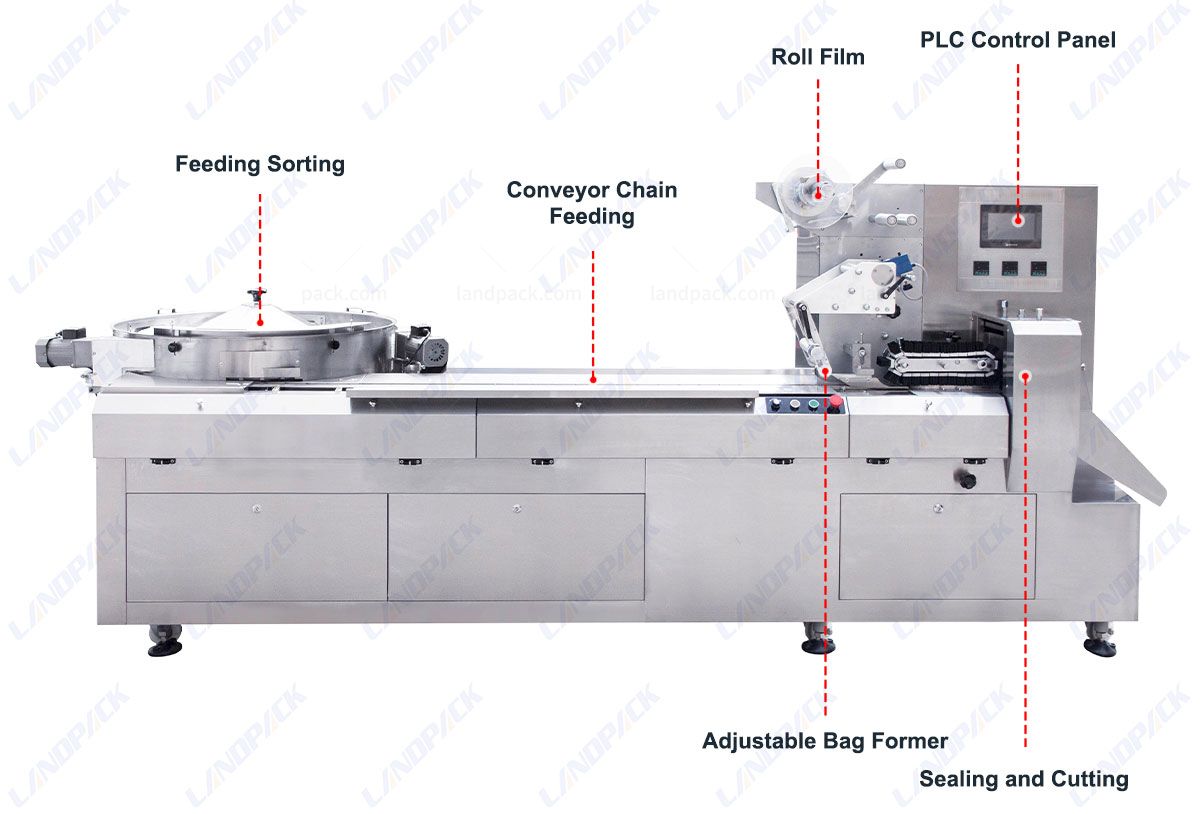

Machine Key Components:
1. Feeding Sorting 2. Conveyor Chain Feeding 3. Roll Film 4. Adjustable Bag Former 5. Roll Film 6. PLC Control Panel
Feature:
1. The large rotary sorting tray arranges bulk candies and transfers them continuously to the feeding conveyor.
2. The conveyor chain keeps each product separated and positioned before entering the wrapping section.
3. Three-servo control coordinates product feeding, film movement and sealing-cutting operations.
4. Bag length, feeding position and cutting position can be adjusted through the touchscreen.

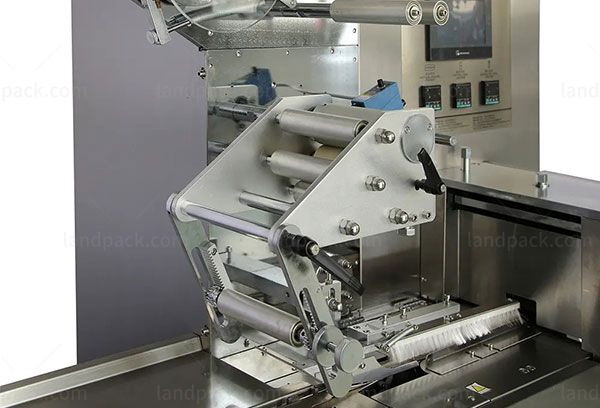

5. The adjustable bag former supports different product dimensions and packaging film widths.
6. Independent machine sections can be operated separately during setup, maintenance and troubleshooting.
7. The machine can connect with upstream candy forming, cooling or conveying equipment for continuous production.
8. Photoelectric registration can be configured to track printed film marks and maintain the cutting position.
