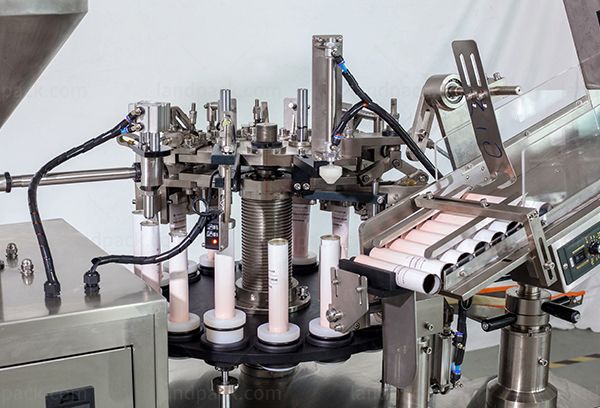

Automatic Cream And Lotion Tube Aluminium Filling and Sealing Machine

Model: LFW-QJ-09

Product Description:

LandPack automatic aluminium tube filler sealer is suitable for filling all kinds of semi-viscous and viscous products into plastic and compound tubes.

Application:

It's suitable for pharmaceutical, chemical, cosmetic, and food products.

E-mail: sales@landpacking.com

Tel/Whtasapp: +86 173 8860 2385

Get Price Send Email
  • Application
  • Description
  • Features
  • Videos

Application:

Automatic cream and lotion tube aluminium filling and sealing machine(LFW-QJ-09), filling and sealing machine is an ideal machine for use in the pharmaceutical, chemical, cosmetic, foodstuff and other light industries.

Examples:

Cream, lotion, ointment, adhesive, AB glue, skin cream, hair dye, shoe polish, and other liquid or paste-like materials

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Samples:

Automatic Cream And Lotion Tube Aluminium Filling and Sealing Machine

Description of the main packaging process:
The entire process of tube supply, tube washing, label identification, filling, folding and sealing, coding, and tube discharge is completed by the fully automatic control system;

Parameter:

ModelLFW-QJ-009
Supply voltage (V/Hz)AC 220/50   110/60
The hose materialAluminum tube, various metal spft tube.
Power1.5KW
The hose diameter11-16mm
Gas source (Mpa)0.6-0.8(MPa)
Filling range (Ml)1-20  5-75(ml)
After gas consumption (m/min)0.3(m3/min)
Measuring accuracy±1%
Production capacity10-50(a/min)
Overall dimensions1900×1000×1900mm
Net weight (kg)280

The automatic tube filling and sealing machine has a compact structure, automatic tube loading, and a fully enclosed transmission part.

The tube is supplied and washed pneumatically, the action is accurate and reliable, the automatic calibration is completed by photoelectric induction, and the adjustment and disassembly are simple;

It is equipped with quantity memory and quantitative shutdown device;

Automatic tail sealing, which can pass different manipulators on a unified machine to obtain multiple sealing methods such as two-folding, three-folding, and saddle-folding;

The material contact part is made of 304 stainless steel, which is clean and hygienic, and fully meets the GMP requirements for pharmaceutical production;

Provide safety device, open door and hang, no tube no filling, overload protection.

We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
