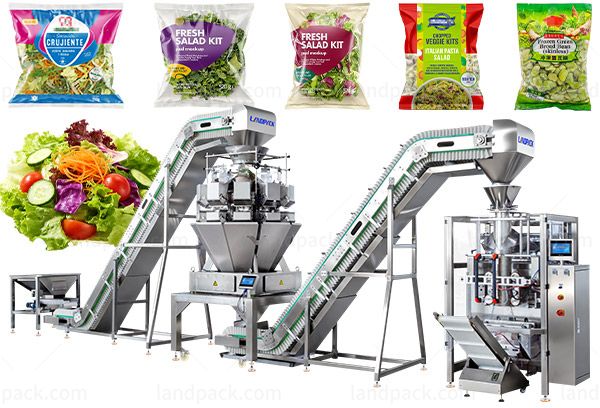

Automatic Dry Food Packing Machine With Multihead Weigher And Two Conveyor
Model: LD-720A
Application:
Suitable for fresh produce, dry food, frozen food, frozen vegetables and small fruit packaging, this VFFS machine supports pillow bags and gusset bags while reducing height requirements for factories and production workshops.
Application:
This vertical form fill seal machine is designed for automatic packaging of dry food, fresh vegetables, fruits and other solid products. Equipped with a dual slope conveyor lifting system and multihead weigher, the machine is suitable for production environments with limited ceiling height. It is widely used for dry food and frozen food, fresh-cut vegetables and salad mixes, leafy vegetables and shredded vegetables, cherry tomatoes, baby potatoes, and small fruits, frozen vegetables and frozen fruit pieces, beans, corn kernels, and diced vegetables, snack vegetables and ready-to-cook vegetable packs, agricultural products and fresh produce combinations.
Package Type:
Suitable for pillow bags, gusset bags and hole-punch bags made from laminated film, PE film and other heat-sealable packaging materials. Bag size and length can be adjusted according to different vegetable and fruit packaging requirements.

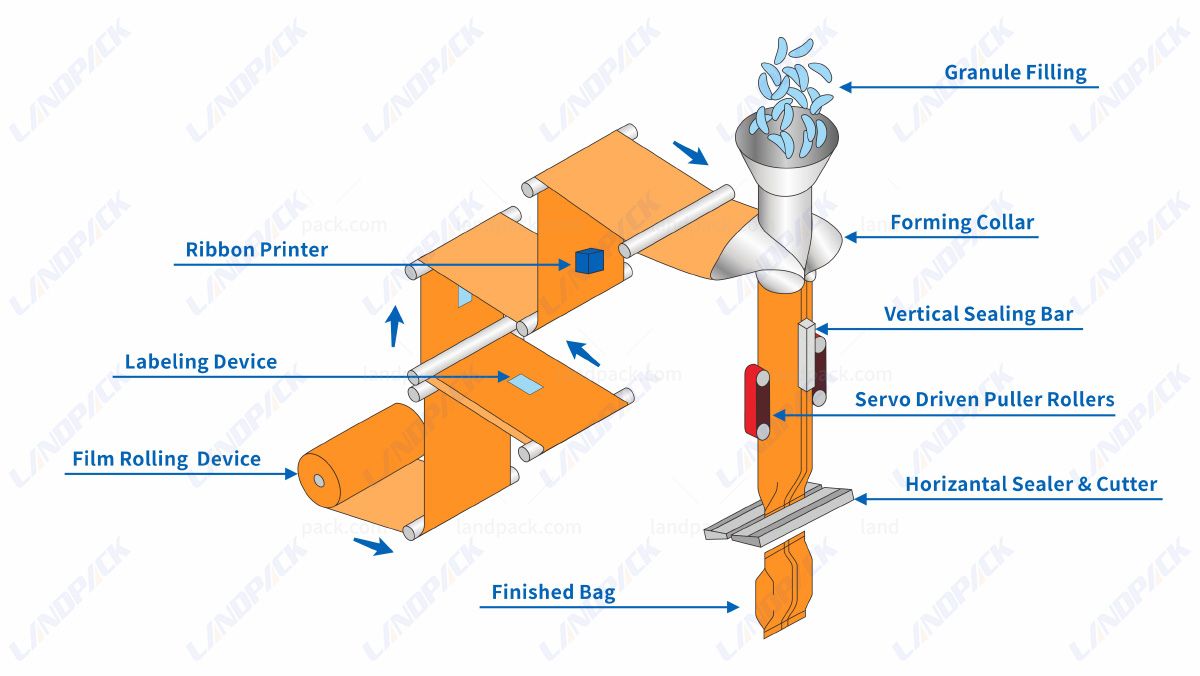

Process Workflow:
1. Material Feeding → 2. Weighing → 3. Secondary Lifting Weighing → 4. Bag Forming → 5. Filling → 6. Sealing → 7. Cutting → 8. Output
| Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |

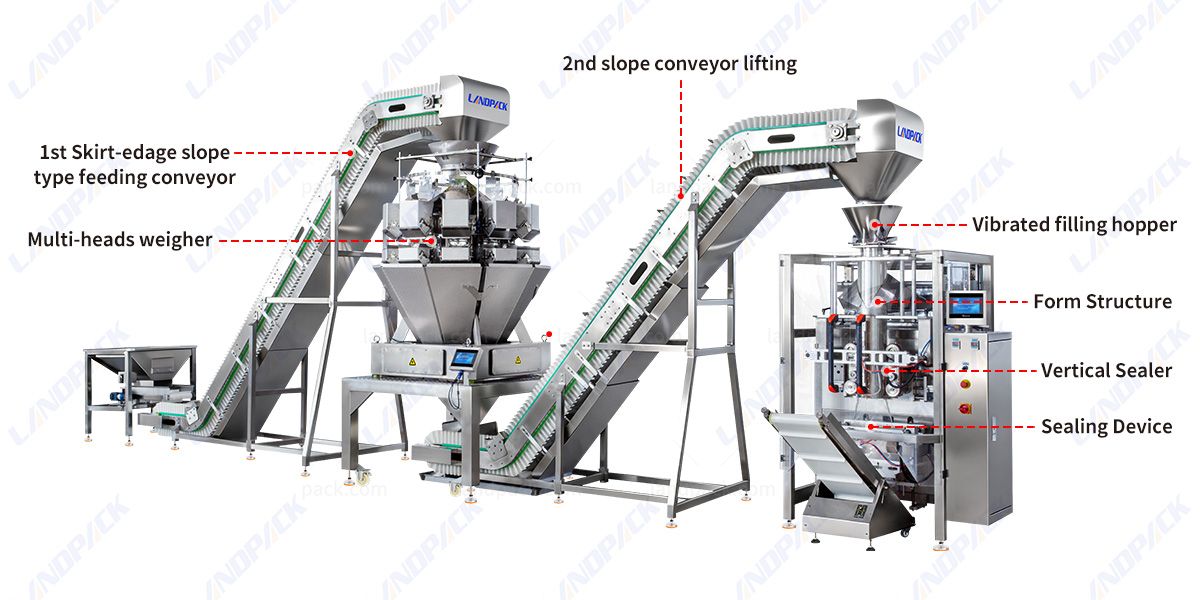

Machine Key Components:
Feature:
1. Dual slope conveyor design reduces overall machine height requirement.
2. Suitable for workshops and factories with limited installation space.

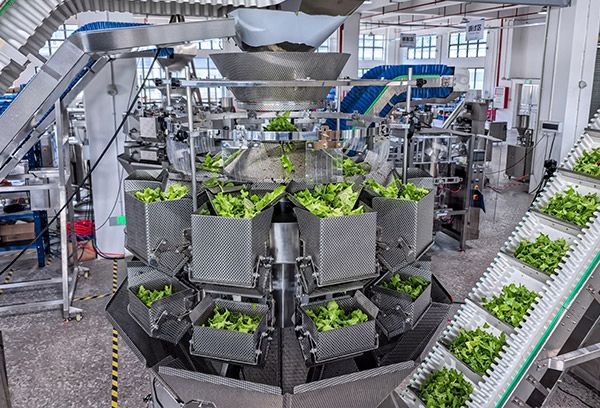

3. Multihead weigher provides stable weighing for vegetables and fruits.

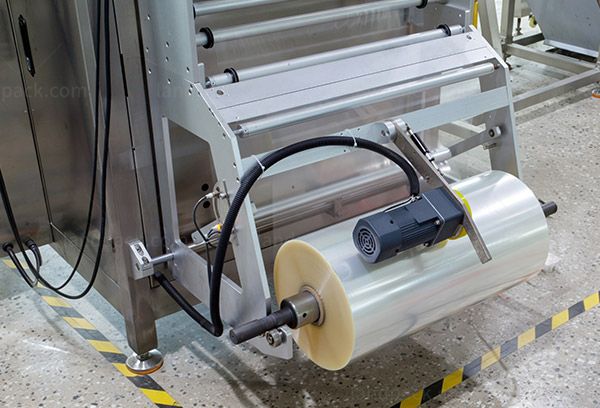

4. Servo film pulling system supports accurate bag length control.
5. Vibrating hopper improves product feeding consistency.
6. Vertical form fill seal structure integrates forming, filling and sealing.
7. Compatible with fresh, frozen and small solid products.
8. Touchscreen PLC control system supports parameter adjustment.
9. Date printer and labeling device can be integrated.
10. Stainless steel frame suitable for food packaging environments.

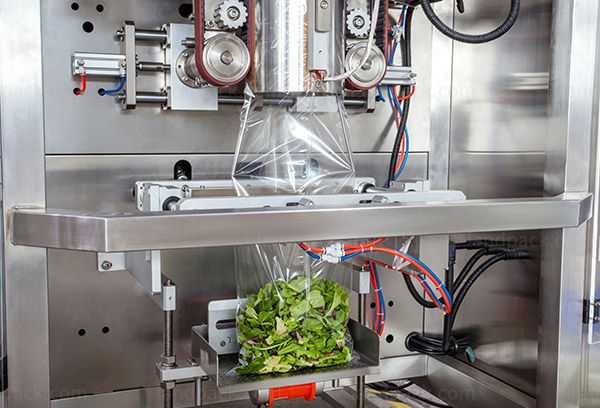

11. Horizontal sealing system provides stable bag sealing performance.
12. Can be connected with automatic feeding and finished product conveyors.
