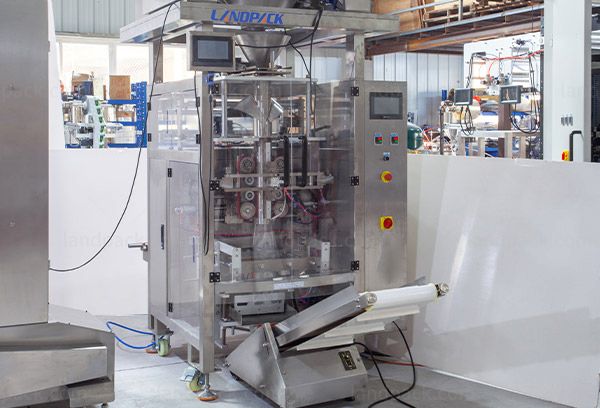

Multi Function Dry Food Frozen Food Vertical Packing Machine
Model : LD-620Y
Application :
This vertical packing machine provides a convenient and practical packaging solution for various products.
Advantage:

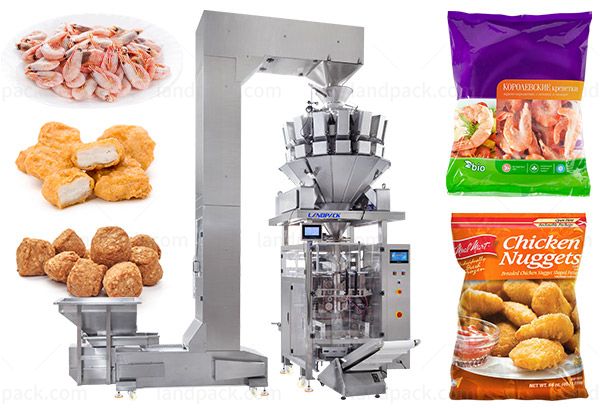

Maximize productivity with our multi-head weigher packaging system—ideal for snacks, nuts, and frozen goods, ensuring fast, precise, and consistent portioning.
Application :
This vertical packing machine provides a convenient and practical packaging solution for various products.
Examples:
dry food, pet food, candy, chocolate, sugar, frozen chicken nuggets, frozen fish fillets, frozen dumplings, almonds, cashews, walnuts, popcorn, dried mango slices, pistachios, sunflower seeds, pumpkin seeds, dried cranberries, etc.
Suitable Packages:
Bags, Back Sealing Bags, Pillow Bags, Gusset Bags, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples:
| Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60 bags/min | 5-60 bags/min | 5-55 bags/min | 5-20 bags/min | 5-20 bags/min | 5-20 bags/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
1. Integrated main machine and multi-head weigher structure not only improves cost-efficiency but also significantly saves factory space.
2. Specially designed for frozen chicken chunks and similar block products, with a packing speed of 30–40 bags per minute, ensuring stable and efficient production.
3. Constructed entirely with 304 stainless steel, ensuring hygiene, durability, and a high weighing accuracy of ±1%.

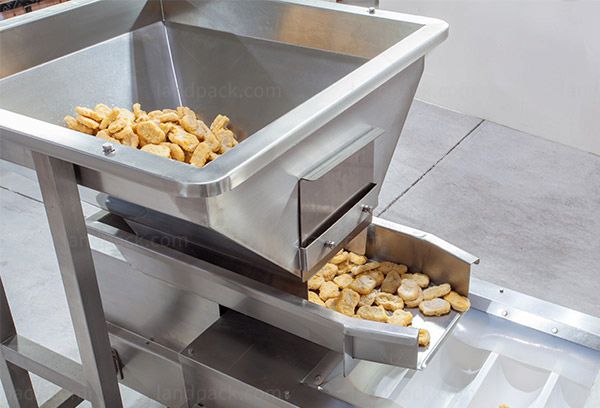

4. Equipped with a hopper vibration system to prevent material clogging and accelerate product feeding for faster packing.
5. The multi-head weigher uses embossed patterned buckets to reduce the sticking of moist or oily frozen products and ensure smooth weighing and discharge.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
