Automatic Garlic Packing Machine Horizontal Pouch Packaging Machine
Medel: LDSP-260A
Automatic horizontal premade pouch packing machine, supporting bag feeding, opening, filling, nitrogen flushing, and sealing.
Application:
Suitable for stand-up pouches and zipper bags, this system provides stable operation and flexible configuration for food packaging lines.
Application:
This horizontal premade pouch packing machine is designed for automatic filling and sealing of granule and solid products, suitable for a wide range of food and non-food applications. It is commonly used for peeled garlic, garlic cloves, minced garlic, vegetables, mixed berries, diced products, nuts, dried fruits, candy, olives, preserved vegetables, etc. Other free-flowing granule products.
Package Type:
Suitable for various pre-made pouches, including stand-up pouches (doypack), zipper bags, flat pouches, and gusset bags. Compatible with laminated films, aluminum foil bags, and plastic composite materials. Bag size and type can be adjusted according to production needs.

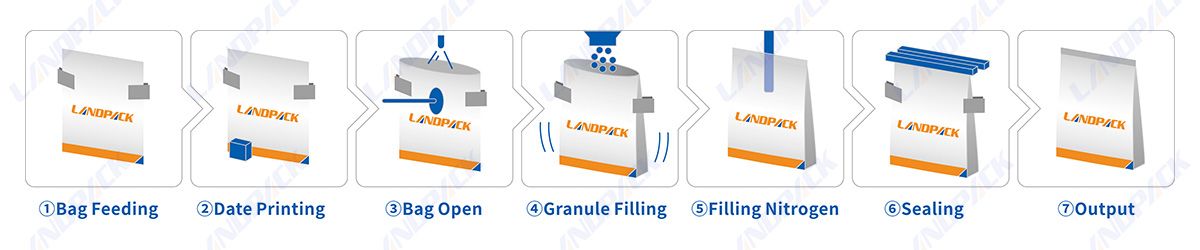

Workflow:
1. Bag Feeding → 2. Date Printing → 3. Bag Opening → 4. Filling → 5. Nitrogen Flushing → 6. Sealing → 7. Output
| Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc. | |||
| Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm（L*W） | 100-260mm/110-320mm（L*W） |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 25-50bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
| Machine weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product | |||
| Dimensions | 1750mm X 1285mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | |
| Collocation | Screw metering,screw elevator | |||

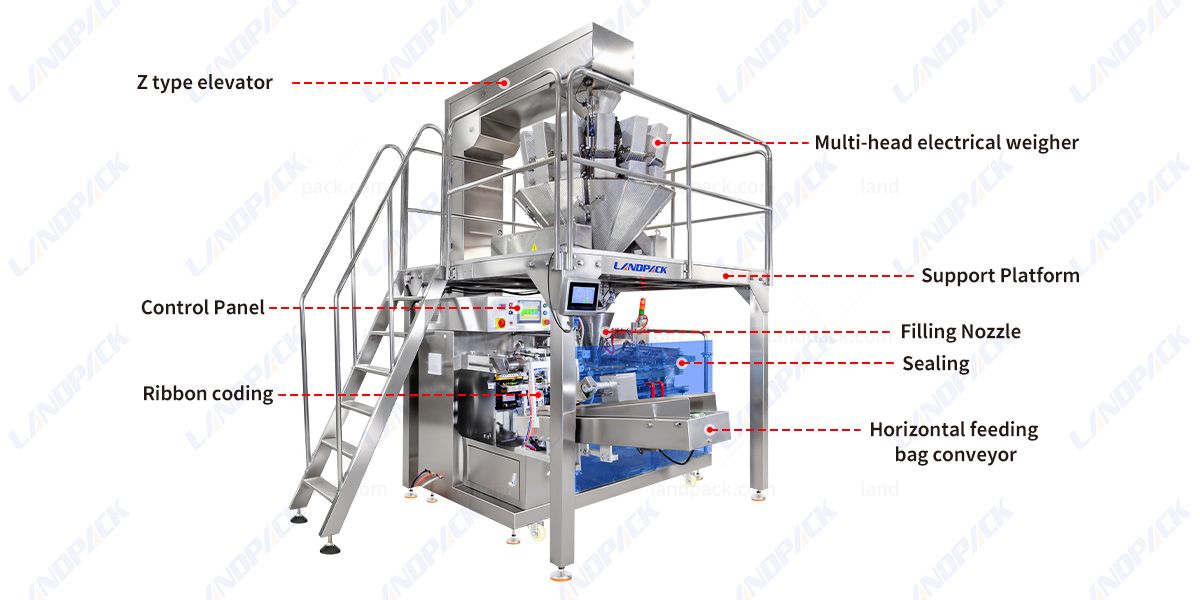

Machine Key Components:
1. Z Type Elevator 2. Control Panel 3. Ribbon Coding 4. Multi-head Electrical Weigher 5. Support Platform 6. Filling Nozzle 7. Horizontal Feeding Bag Conveyor
Feature:
1. Automatic pouch feeding and continuous operation.
2. Stable bag opening with detection to avoid misfilling.

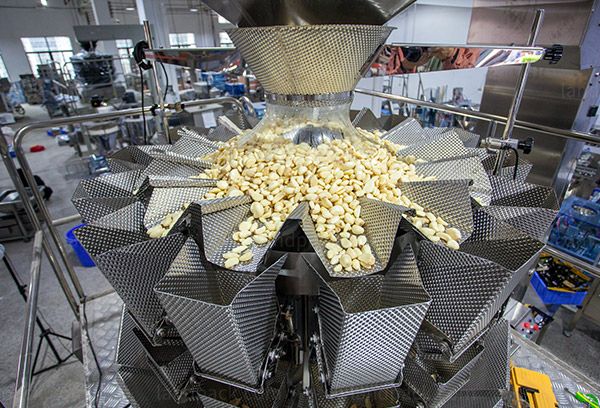

3. Multi-head weigher for accurate and consistent dosing.
4. Suitable for granule and irregular shape products.
5. Optional nitrogen flushing for extended shelf life.
6. Reliable heat sealing for secure package closure.
7. PLC control with touchscreen for simple operation.
8. Stainless steel structure for food-grade applications.
9. Easy adjustment for different pouch sizes.
10. Can be connected with upstream feeding and downstream system.
