High Speed Mayonnaise Packaging Machine | Tomato Sauce Packing Machine
Model: LDSF-1200
Application:

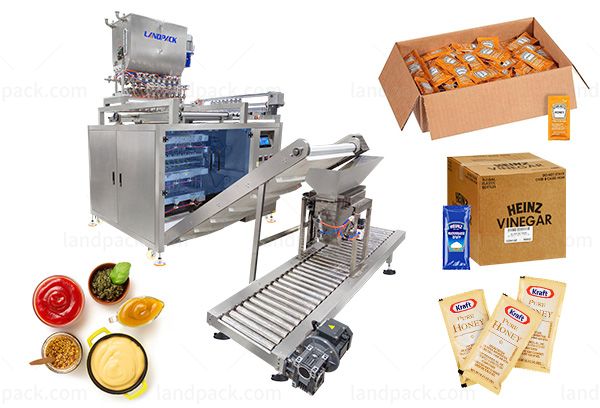

High-speed multi-lane ketchup packaging machine with automatic counting and cartoning system. Ideal for ketchup, chili sauce, salad dressing, peanut butter and more.
Application :
Features air-shaft roll film, ribbon date printer, level sensor, anti-leak filling, and adjustable piston pump for precise, efficient filling and packaging.
Examples :
Mayonnaise, ketchup, peanut butter, jam, salad dressing, chili sauce, chocolate sauce, etc.
Kindly Reminder :
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Sample :
| Model | LD-480Y | LD-720Y | LD-960Y |
| Track Number | 4-6 Track | 4-10 Track | 4-12 Track |
| Filling Method | 1.Piston pump; 2.Peristaltic Pump | ||
| Capacity | Max.40 cycle/min | ||
| Sachet Size | L: 45-120mm; W: 35-60mm | L: 45-120mm; W: 35-90mm | L: 45-120mm; W: 35-120mm |
| Film Width & Thickness | Max.480mm;0.07-0.1mm | Max.720mm;0.07-0.1mm | Max.960mm;0.07-0.1mm |
| Sealing Type | 3/4 sides sealing | 3/4 sides sealing | 3/4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa, 0.8m³/min, 2.8kw | 0.8 mpa, 0.8m³/min, 4.1kw | 0.8 mpa, 0.8m³/min, 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |

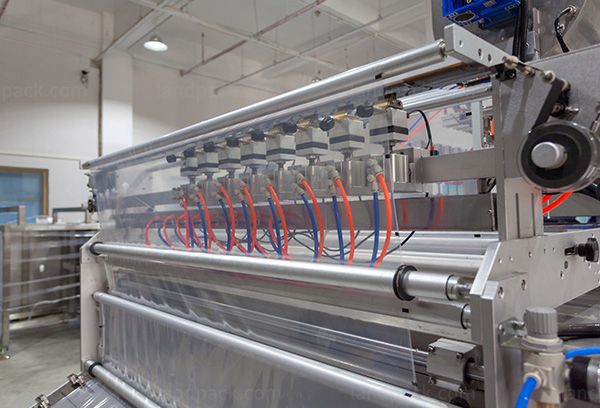

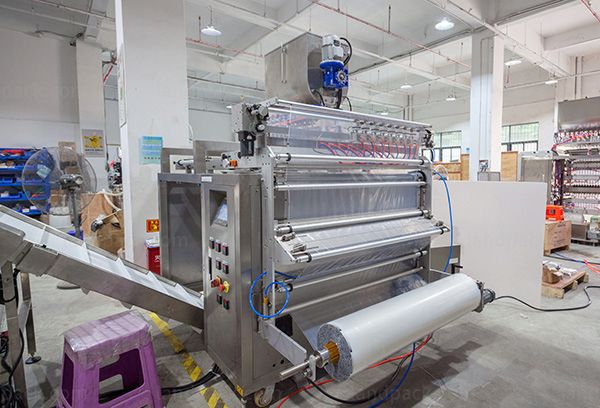

1. Air-shaft roll film device maintains smooth, stable film feeding for continuous high-speed operation.
2. Multi-head ribbon printer applies batch codes and expiry dates on all lanes simultaneously for better product tracking.
3. Liquid level sensor in the material tank prevents interruptions by alerting when refills are needed.
4. Built-in stirring and heating system maintains consistent texture and temperature for thick sauces like ketchup.

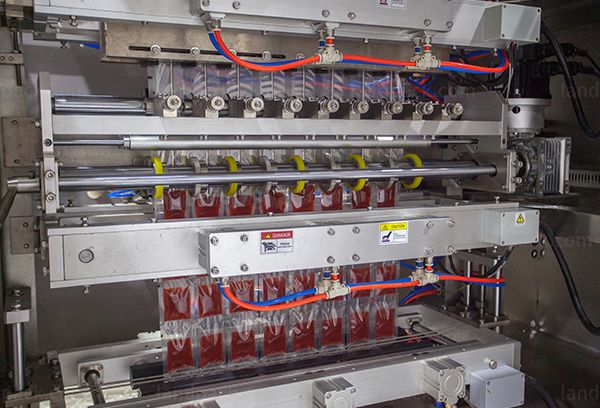

5. Leak-proof filling nozzles eliminate drips to ensure clean seals and professional packaging.
6. Adjustable piston pump allows precise volume control and quick adjustments for different fill quantities.
7. Automated counting and cartoning system uses sensors to accurately pack sachets into boxes.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
