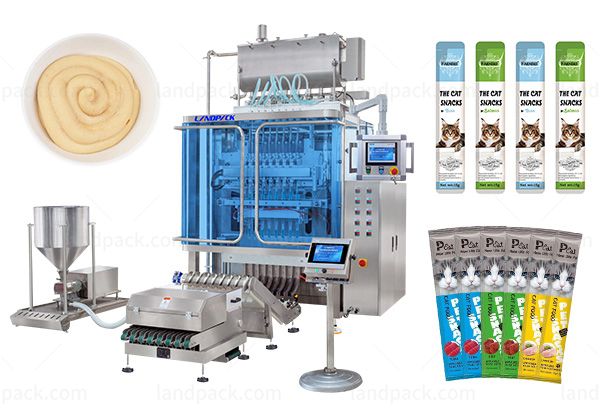

Multi Lane Pet Food Cat Strip Stick Packing Machine With Weighing And Rejection System
Model: LDBK560-8
Application:

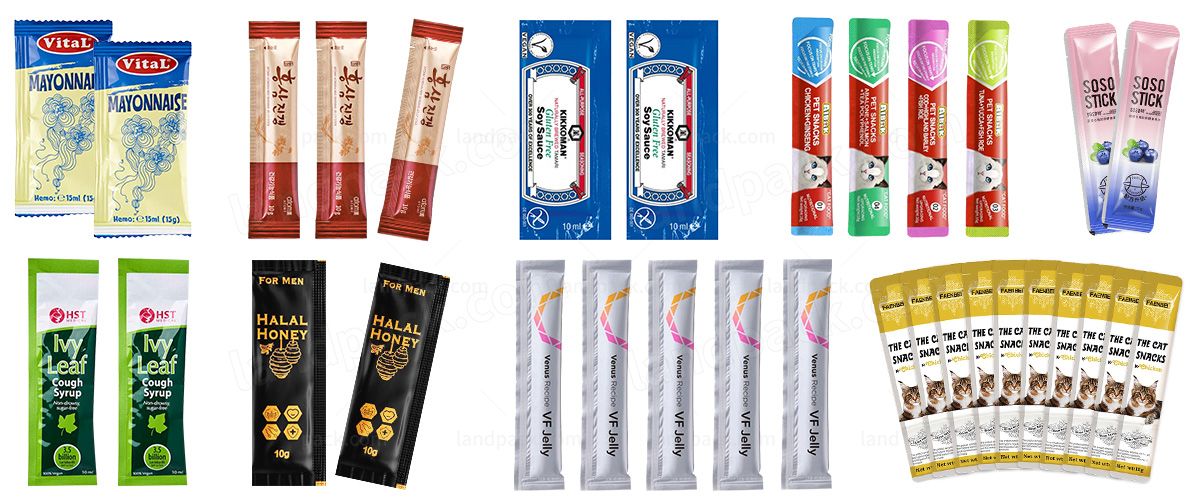

Multilane pet food cat strip stick packing machine is suitable for liquid products such as cat strips, meat paste, honey, probiotics, mouthwash, ketchup, flavoring, sauce, pasty, shampoo, syrups, salad dressing, cream, body wash liquid, etc.
Application:
Multilane pet food cat strip stick packing machine is suitable for liquid products such as cat strips, meat paste, honey, probiotics, mouthwash, ketchup, flavoring, sauce, pasty, shampoo, syrups, salad dressing, cream, body wash liquid, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
| Model | LD-280BKL | LD-560BKL |
| Track Number | 4-6 Track | 8-12 Track |
| Filling Method | 1. Piston pump; 2. Peristaltic Pump; 3. Volumetric cup | |
| Capacity | Max.35 cycles/min | |
| Sachet Size | L: 50-180mm; W: 17-30mm | L: 50-180mm; W: 17-30mm |
| Film Width & Thickness | Max.280mm; 0.07-0.1mm | Max.560mm; 0.07-0.1mm |
| Sealing Type | Back sealing/ Stick bag | |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | |
| Air & Power | 0.8 mpa, 0.8m³/min, 2.8kw | 0.8 mpa, 0.8m³/min, 4.1kw |

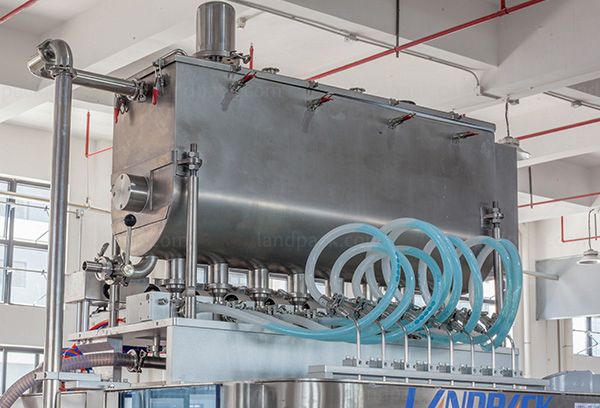

1. 100L capacity tank with rotor pump maintains steady material flow
2. Top hopper includes an integrated high-pressure spray cleaning system
3. The mixing chamber keeps ingredients uniformly blended before packaging

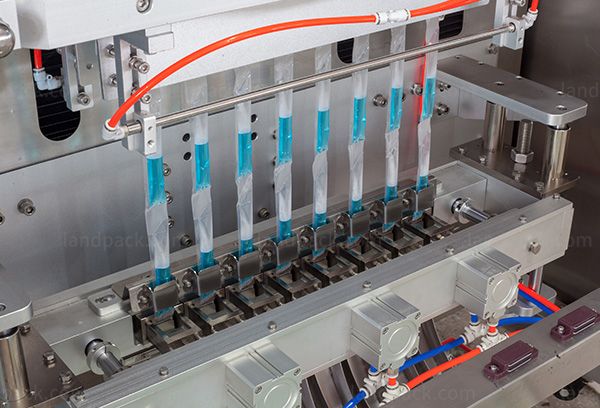

4. Ceramic servo pump delivers accurate 15g portions with simple adjustments
5. Non-stick triple-seal technology prevents material adhesion during closure
6. V-notch and circular cutting options enhance package appearance and usability
7. Twin laser markers print durable production/expiry date information
8. Integrated air cooling stabilizes bags post-sealing to maintain shape
9. Output conveyor automatically transports finished pouches for collection

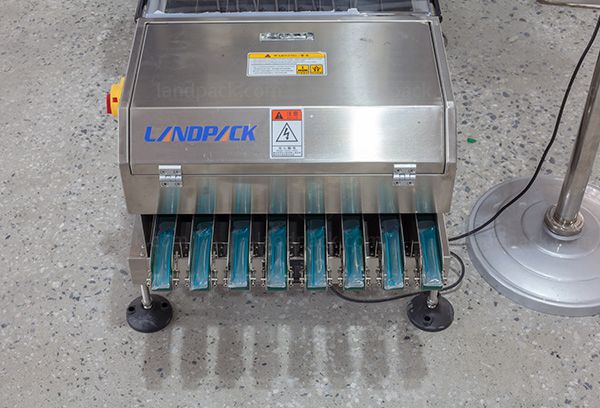

10. Multi-lane checkweigher automatically removes non-compliant packages
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
