Pet Food Packaging Machine | Stand Pouch Doypack Packing Machine
Model: LDSP-210AS
The pet food horizontal pouch packaging machine integrates automatic pouch feeding, weighing, filling, sealing, and inspection in one system. With advanced weighing accuracy and metal detection, it guarantees product consistency and safety.
Application:
Ideal for dry pet food, snacks, nuts, and grains, it delivers efficient, hygienic, and attractive pouch packaging solutions.
Application:
This horizontal premade pouch packaging machine with a linear weigher is ideal for packaging uniform, free-flowing granular products. It is perfectly suited for pet food, dry kibble, snacks, nuts, beans, rice, sugar, and fertilizer granules.
Package Type:
This horizontal premade pouch packaging machine supports a wide variety of bag styles to meet different market needs. It is compatible with stand-up pouches, zipper pouches, flat pouches, gusset bags, and quad seal bags.
Suitable Products:
The Horizontal Pouch Packaging Machine with Linear Weigher is highly adaptable and designed to handle a wide variety of granular products across multiple industries.
- Pet Food Industry: Perfect for packing dry kibble, pet treats, fish feed, and other animal nutrition products with consistent weight control and secure sealing, ensuring freshness and cleanliness.
- Food & Snack Industry: Ideal for packaging nuts, grains, beans, rice, sugar, and snacks. The precise weighing system maintains accuracy while preserving product shape and quality.
- Agricultural & Industrial Granule Industry: Suitable for fertilizers, plastic pellets, and coffee beans, providing efficient, dust-free packaging with strong, professional seals.
Whether for food, pet products, or industrial granules, this machine offers a reliable, efficient, and hygienic packaging solution.

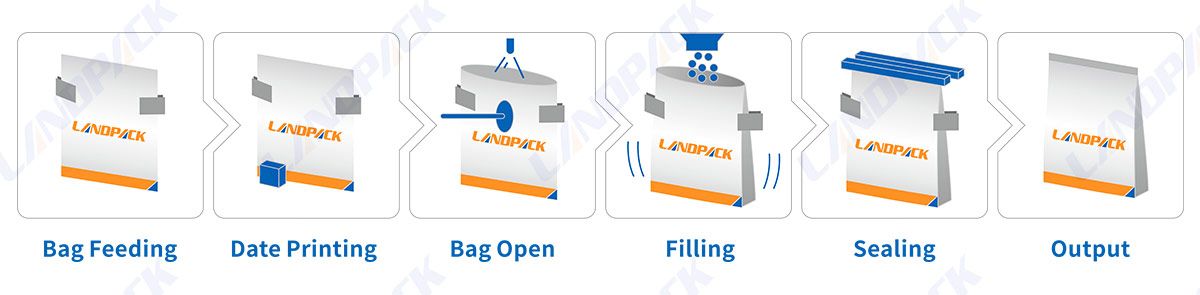

Workflow:
1. Pouch Feeding: Premade pouches are automatically picked and placed onto the conveyor, ensuring continuous and efficient packaging operation.

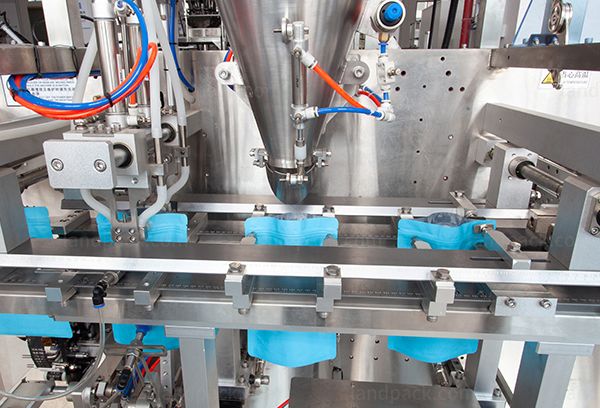

2. Pouch Opening: The system gently opens each pouch with vacuum suction and air blowing, preparing it for precise filling.
3. Product Weighing: The linear weigher measures the exact portion of pet food or granular product, ensuring consistent weight and accuracy.
4. Product Filling: The weighed materials are smoothly filled into the opened pouches without spillage or contamination.
5. Sealing: Pouches are heat-sealed firmly to preserve freshness, prevent leakage, and maintain an attractive appearance.
6. Weight Checking: Each finished pouch is checked by the check weigher to ensure proper filling weight and quality consistency.
7. Metal Detection: Products pass through a metal detector to eliminate any metallic impurities, guaranteeing food safety and compliance.
8. Finished Product Output: Qualified packages are automatically discharged onto the conveyor, ready for boxing, labeling, or secondary packaging.
| Type | LDSP-160AS | LDSP-160AS | LDSP-210AS | LDSP-260AS |
| Bag Type | 3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc. | |||
| Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm（L*W） | 100-260mm/110-320mm（L*W） |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 25-50bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
| Machine weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product | |||
| Dimensions | 1750mm X 1285mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | |
| Collocation | Screw metering,screw elevator | |||

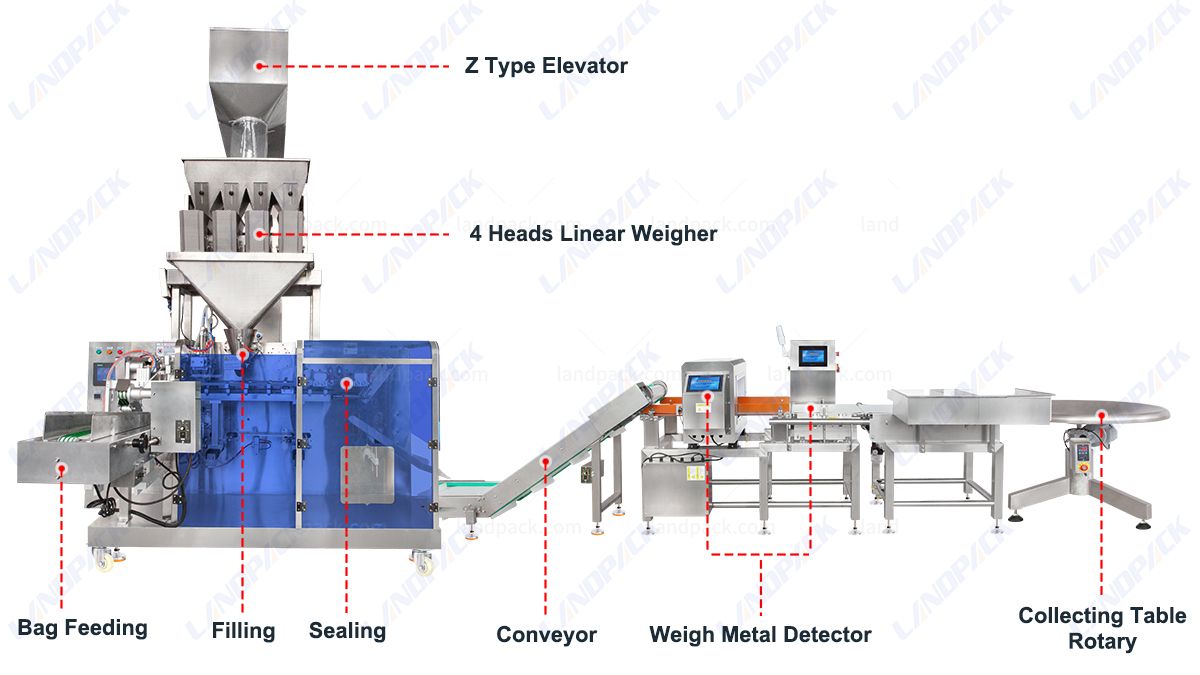

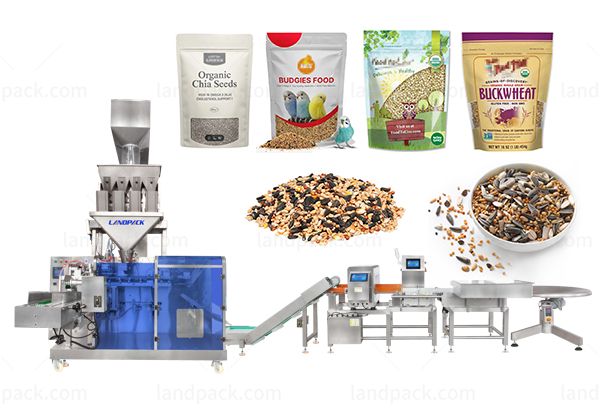

Machine Key Components:
1. Bag Feeding
2. Z Type Elevator
3. 4 Heads Linear Weigher
4. Filling Machine
5. Conveyor
6. Weigh Metal Detector
7. Collecting Table Rotary
Feature:

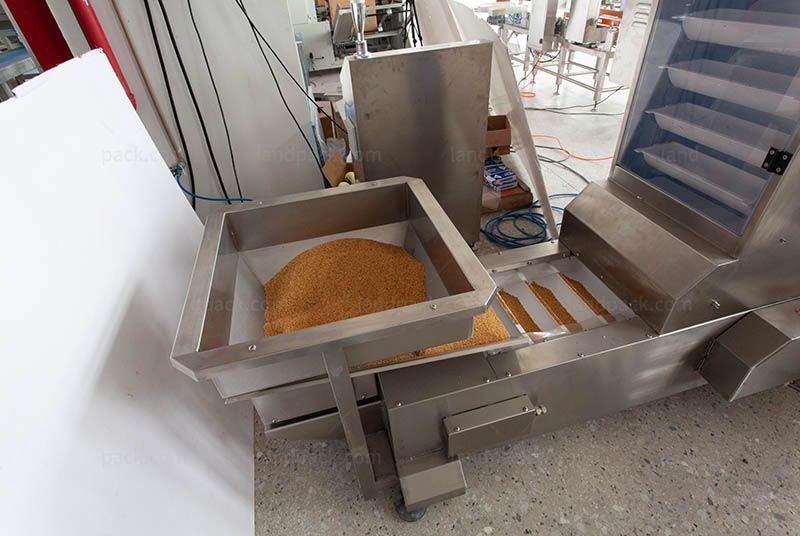

Z Type Elevator Efficiently lifts beef jerky or other granular products to the weigher without product damage. Ensures smooth feeding, reduces labor, and maintains continuous production. |  |

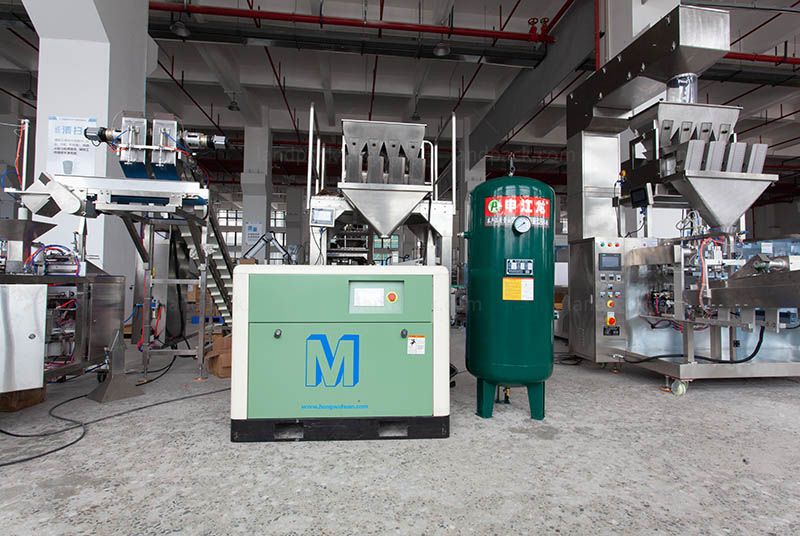

 | Air Compressor This air compressor is the power core of the packaging production line. It is stable and reliable, providing a continuous clean air supply for the packaging machines, ensuring precision and efficiency in sealing, conveying, and other processes, and is a solid guarantee for a modern smart factory. |

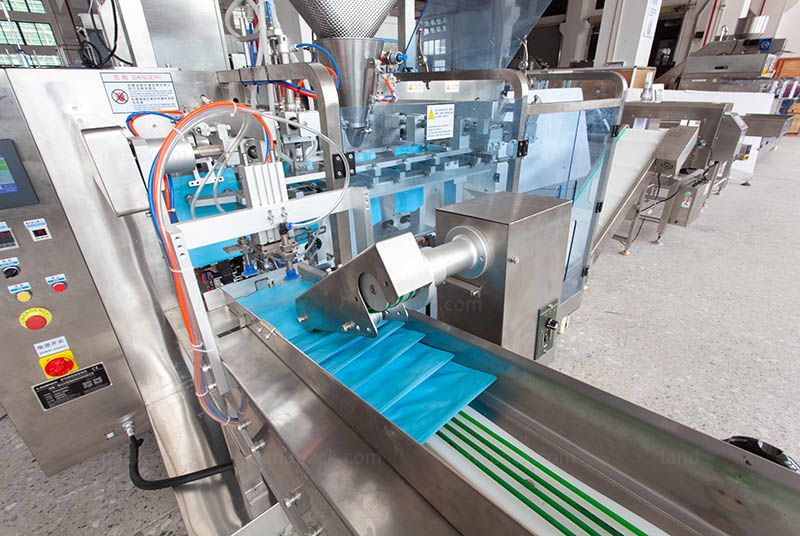

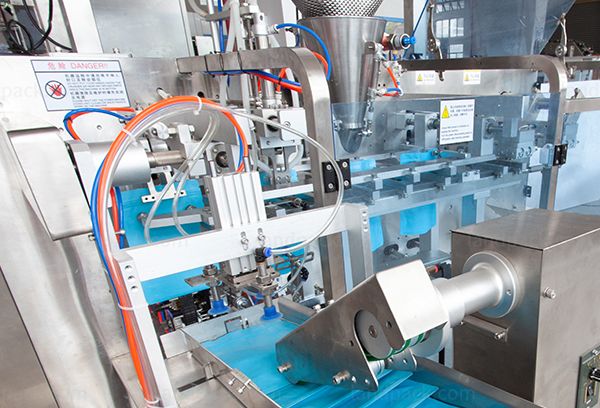

Pouch Feeding System Core packaging unit for premade bags. Automatically completes bag picking, opening, filling, sealing, and output. Compact structure, hygienic design, ideal for doypack and flat pouches. |  |

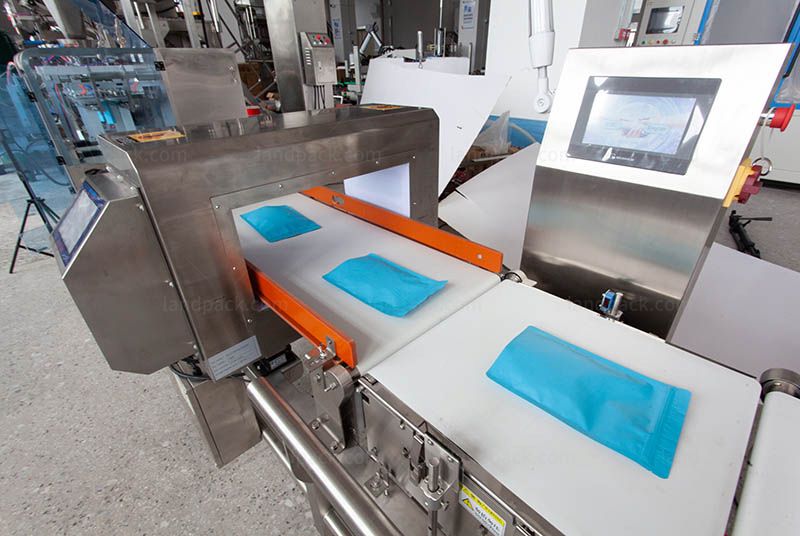

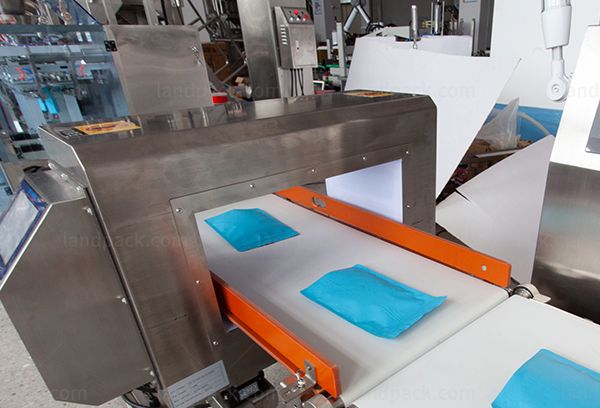

 | Metal Detection System The integrated metal detector provides reliable product safety by detecting and rejecting any metallic contaminants before sealing. It ensures compliance with food safety standards, protecting both product integrity and brand reputation. This system is essential for pet food and other granular food packaging lines. |
Check Weigher System The check weigher accurately measures the weight of each finished pouch to ensure every package meets preset standards. Any overfilled or underfilled pouches are automatically rejected, maintaining consistency, reducing waste, and improving overall production quality. |  |

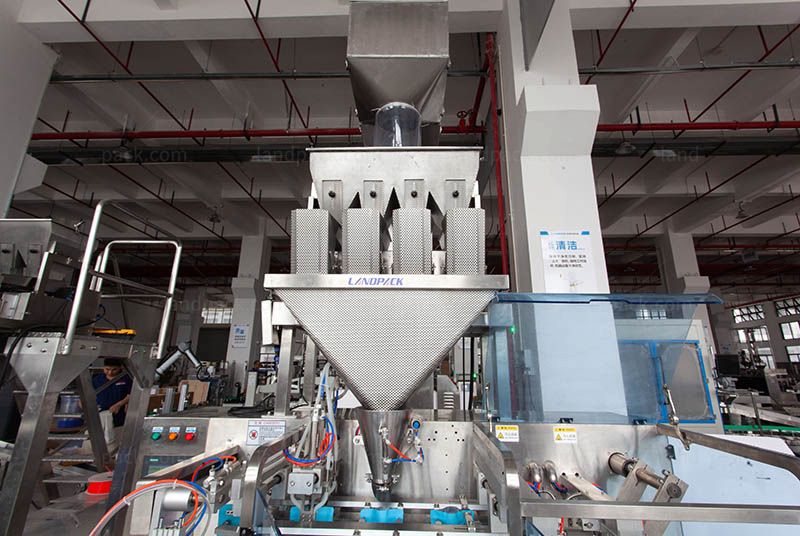

 | Linear Weigher System The linear weigher delivers high-precision dosing for pet food, grains, and similar granular products. Using advanced load cell technology and intelligent control, it ensures stable, consistent filling performance. The open design allows for easy cleaning and maintenance, maintaining hygiene and operational efficiency |
