Automatic Protein Powder Packing Machine Can Filling Vacuum Nitrogen Seaming Line
Model: Milk Powder Filling Line
Automatic protein powder metal can filling line with auger dosing, vacuum nitrogen seaming and laser coding for milk powder, nutrition powder and food powders.
Application:
The application range can cover dairy, sports nutrition, beverage powder, grain processing and powdered food production.
Application:
It can be used in sports nutrition, dairy, beverage, grain processing and powdered food production lines where automatic powder feeding, auger dosing, nitrogen flushing, can seaming and coding are required. Such as whey protein powder, plant protein powder, protein blends, milk powder, collagen powder, meal replacement powder, coffee powder, cocoa powder, matcha powder, milk tea powder, coconut milk powder, soy milk powder, cereal powder, oat powder, almond powder, flour and instant beverage powder.
Package Type:
Suitable for metal cans with metal lids, using vacuum seaming and nitrogen filling for dry powder products.
Workflow:

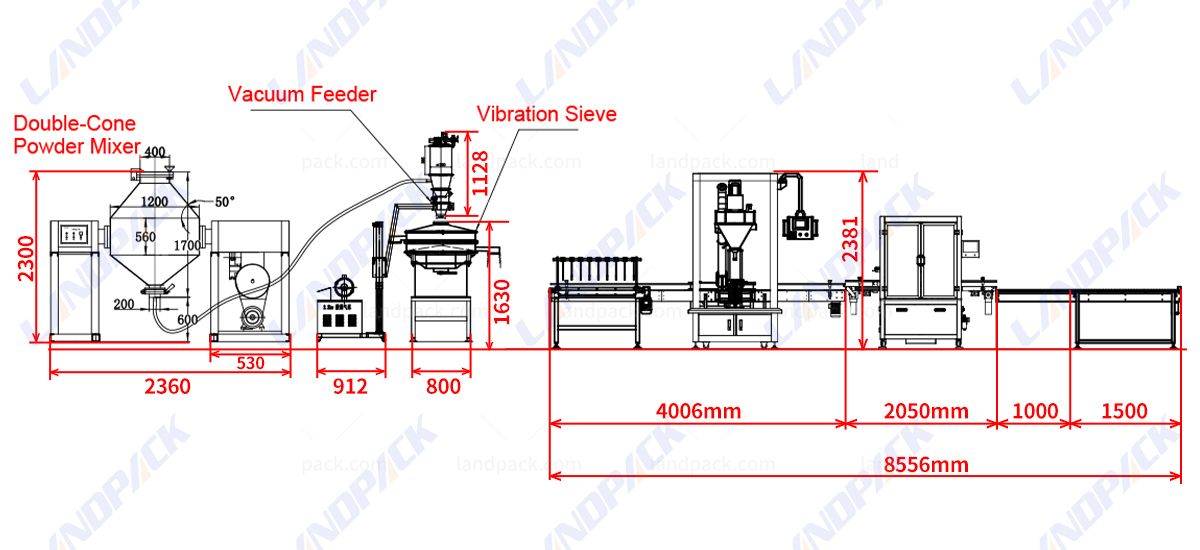

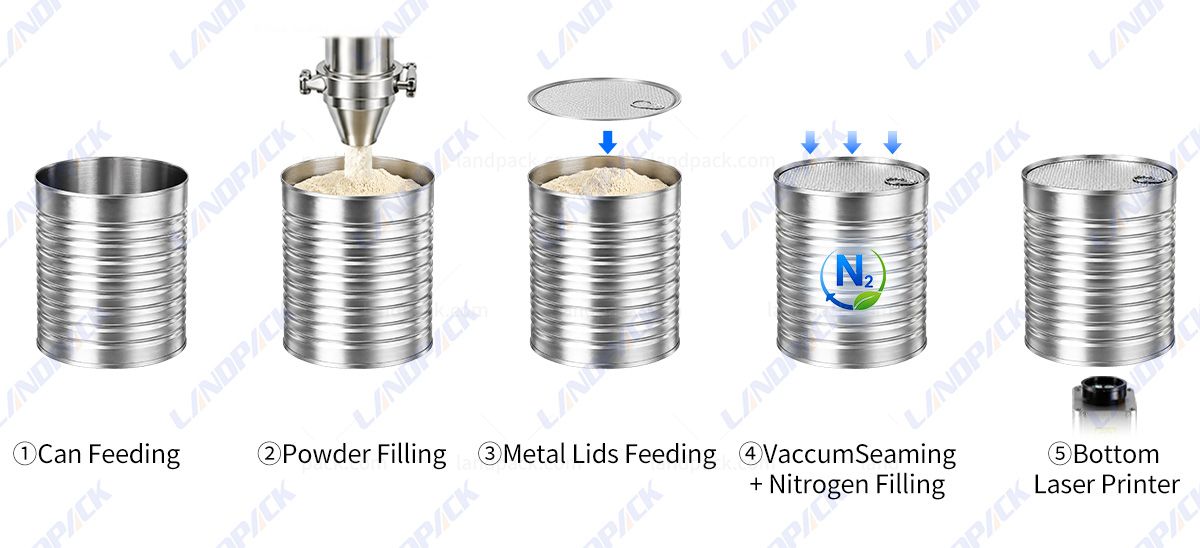

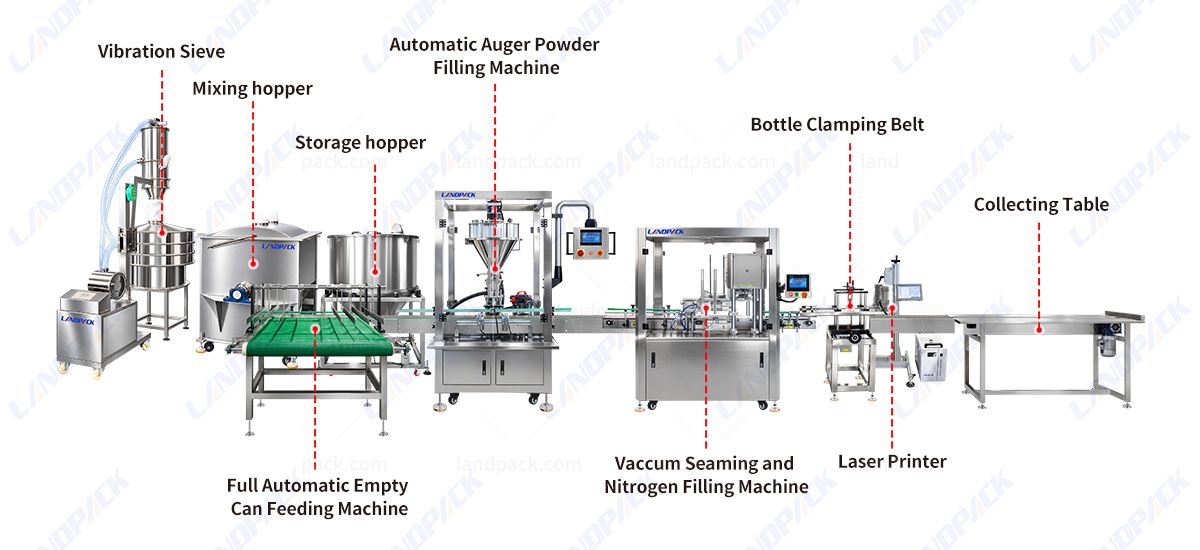

Powder Mixing → Vibration Sieving → Powder Storage → Automatic Empty Can Feeding → Auger Powder Filling → Metal Lid Feeding → Vacuum Seaming & Nitrogen Filling → Can Clamping → Laser Coding → Finished Can Collection
| Automatic Bottle Feeder | ||
| Machine Model | LD-LP800N | |
| Power Supply | 220V/110V, 50-60Hz, 200W | |
| Turntable Diameter | 800mm | |
| Suitable Bottle Diameter | 20-100mm | |
| Suitable Bottle Height | 30-320mm | |
| Working Speed | 40-60bottles/min(depending on bottle size) | |
| Package Size | 1230*1010*1260mm | |
| Gross Weight | 141kg | |
| Automatic Powder Filling Machine | ||
| Model | LFP-01(Single Head) | LFP-01(Dual Head) |
| Filling Weight | 10-5000 g (by changing auger) | 10-5000 g (by changing auger) |
| Bottle Diameter | Φ30-Φ140 mm (customizable) | Φ30-Φ140 mm (customizable) |
| Bottle Height | 50-200 mm (customizable) | 50-200 mm (customizable) |
| Capacity | 10-20 bottles/min | 20-40 bottles/min |
| Filling Accuracy | ≤500 g: ±1%>500 g: ±0.5% (varies by material) | ≤500 g: ±1%>500 g: ±0.5% (varies by material) |
| Power Consumption | 2.5 kW | 5 kW |
| Hopper Capacity | 50 L | 50 L |
| Power Supply | 220 V, 50 Hz | 220 V, 50 Hz |
| Air Pressure | 0.6–0.8 MPa | 0.6–0.8 MPa |
| Machine Weight | 350 kg | 550 kg |
| Vacuum can seaming machine with nitrogen flush | ||
| Bottle type | Round, square bottles, etc need to be customized. | |
| Bottle diameter | 50-120cm(can be customized) | |
| Bottle height | 50-150mm(can be customized) | |
| Speed | 5-8BPM(it depends on product) | |
| Caps feeding type | ausomtaic lids feeding | |
| Machine voltage | 220V(can be customized) | |
| Machine size | 2000*1000*1700mm | |
| Machine weight | 550kg | |
| Laser printer | ||
| Print range | 100*100mm | |
| Positioning way | Infrared focusing | |
| Focuslens | focal length 150mm | |
| Speed | Max10000mm/s(can be customized) | |
| Laser | fiber laser generator | |
| Machine voltage | 220V(can be customized) | |
| Machine size | 825*545*1425mm | |
| Machine weight | 60kg | |
| Parameter | Specification | |
| Machine Name | Powder Storage Hopper with Vibrating Sieve | |
| Application | Powder materials | |
| Hopper Capacity | Customized | |
| Sieve Mesh Size | Customized according to material | |
| Feeding Method | Automatic conveying | |
| Sieve Type | Vibrating sieve | |
| Contact Material | Stainless steel | |
| Discharge Method | Continuous discharge | |
| Voltage | Customized | |
| Connection | Can be connected with powder filling machine | |
Machine Key Components:
Feature:

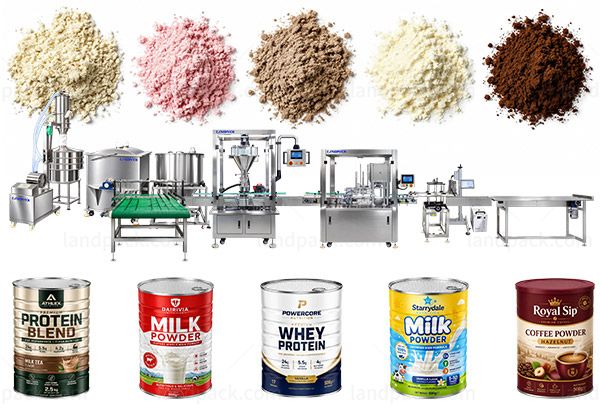

1. The fully automatic line integrates powder preparation, can feeding, filling, sealing, coding and finished-can collection to reduce manual handling.
2. The mixing hopper, vibration sieve and storage hopper support continuous powder preparation and feeding before filling.

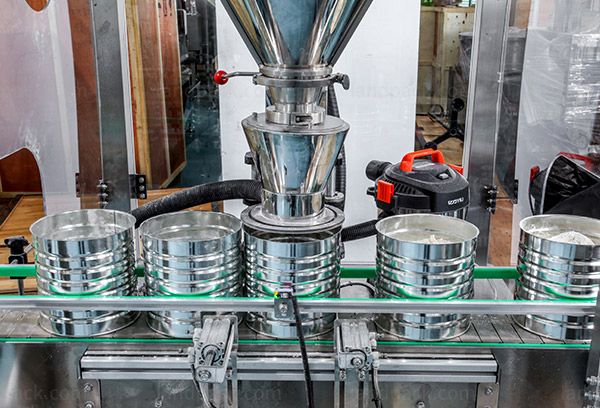

3. The single-head auger filling system provides filling accuracy up to ±1% and can be adjusted for different filling weights and can sizes.
4. The automatic empty can feeding system arranges and transfers cans continuously to the filling station.
5. The vacuum seaming and nitrogen filling system can reduce residual oxygen to below 3% to help extend product shelf life.

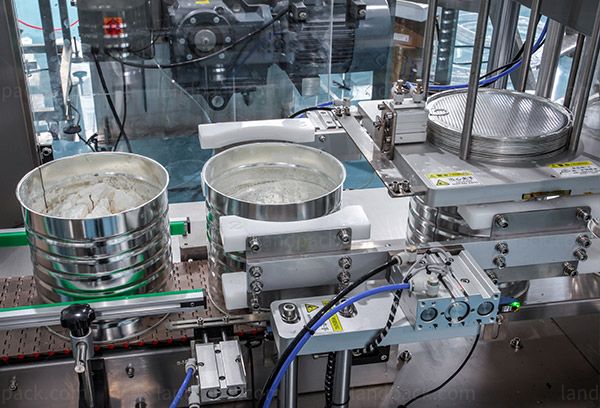

6. Automatic metal lid feeding connects directly with the vacuum seaming station for continuous can closing.

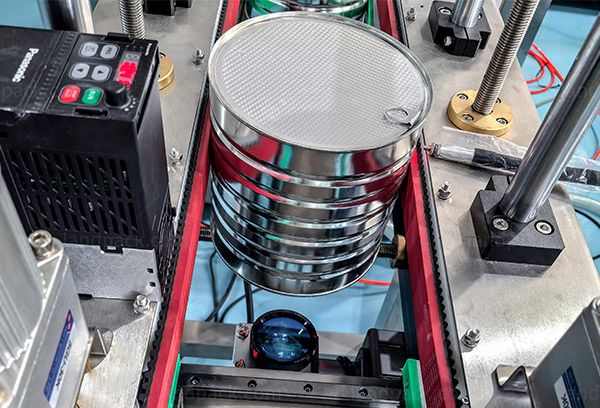

7. The can clamping conveyor keeps containers positioned during laser coding for production dates, batch information or traceability marks.
8. The modular line layout allows the filling, sealing, coding and conveying sections to operate as one continuous production system.
