Automatic Sauce Filling Machine Liquid Filling Capping Machine Line
Model: Liquid Filling Capping Machine Line
Suitable for liquid and viscous products, this complete filling system offers high accuracy, stable operation, and customizable configurations for food and non-food industries.
Application:

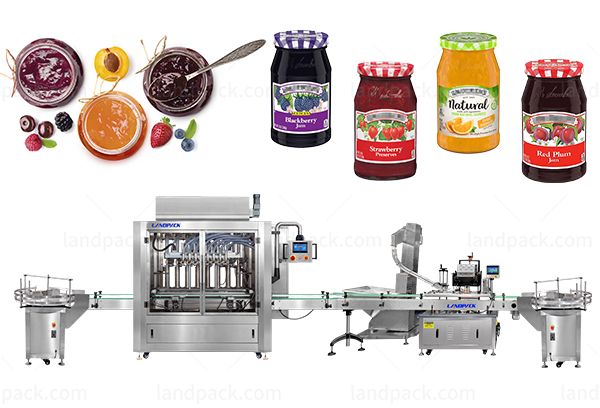

Automatic sauce filling machine for bottles and jars, integrating bottle feeding, piston filling, cap feeding, and capping. Suitable for sauce, jam, chili sauce, mayonnaise, and ketchup, etc.
Application:
This automatic sauce filling line is designed for bottle filling, capping, and packaging of liquid, semi-liquid, and viscous products, providing a complete and efficient packaging solution. It is widely used in: sauces, jam, honey, ketchup, chili sauce, paste, condiments and cooking products, beverage and liquid food products, daily chemical, cream, gel, pharmaceutical and healthcare liquids.
Package Type:
Suitable for a wide range of bottles and jars, including glass bottles, plastic bottles (PET, PE, PP), and containers in round, square, or custom shapes. Compatible with screw caps, press caps, and lug caps, with adjustable settings for different bottle sizes and filling volumes.

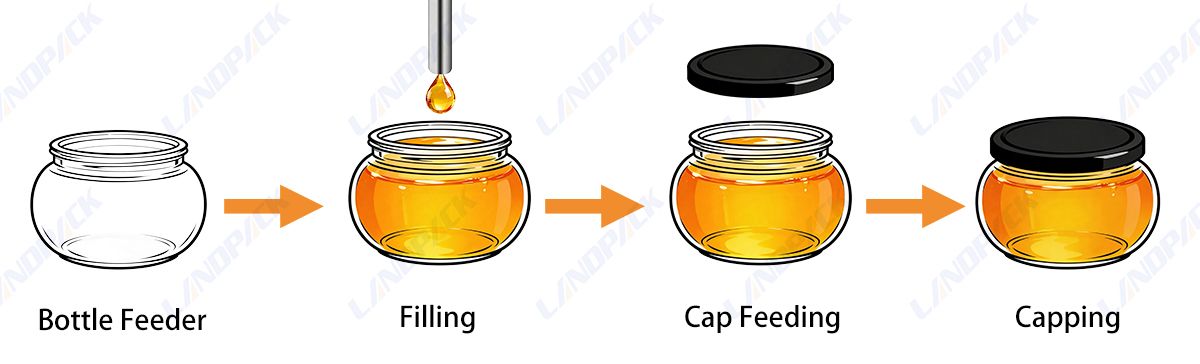

Workflow:
1. Bottle Feeding → 2. Filling → 3. Cap Feeding → 4. Capping
| Bottle Liquid filling machine | ||||
| Model | LFZ-04 | LFZ-06 | LFZ-08 | LFZ-10 |
| Filling Range | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) |
| Production Speed | <15-25 bottles/min | <20-35 bottles/min | <30-40 bottles/min | <40-50 bottles/min |
| Measurement Accuracy | ±1% | ±1% | ±1% | ±1% |
| Power | 2KW | 2.5KW | 3.5KW | 5KW |
| Voltage | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz |
| Air consumption | 0.6-8Mpa | 0.6-8Mpa | 0.6-8Mpa | 0.6-8Mpa |
| Weight | 600kg | 650kg | 800kg | 800kg |

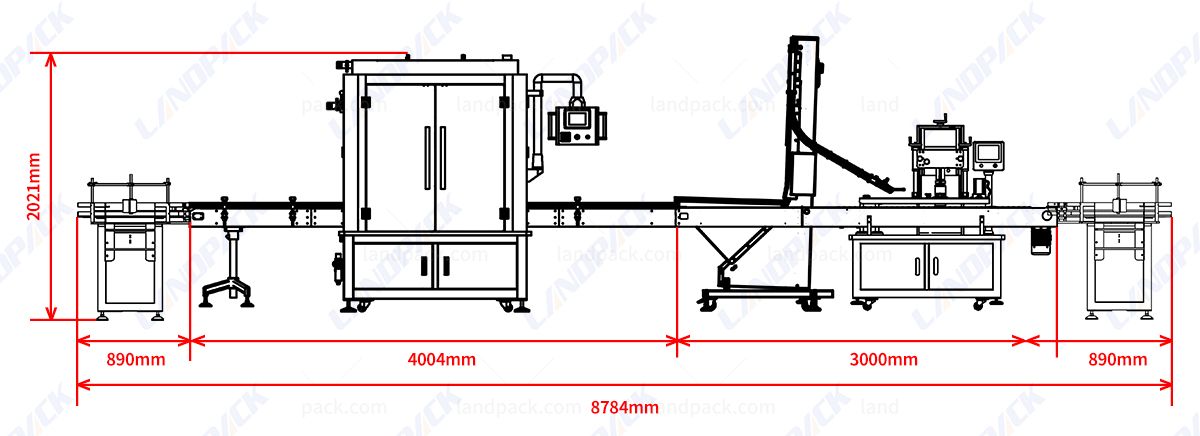

| Dimension | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) |
| Autoamtic capping machine | |||

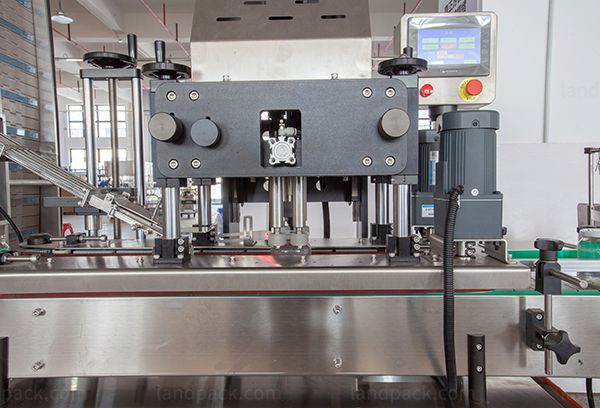

| Model | LFX-JX-01(Four wheel capping) | LFX-GS-150(Eight wheel capping) | LFX-GS-250(Six wheel capping) |
| Capacity | 20-50Bottles/min | 40-100Bottles/min | 30-80Bottles/min |
| Bottle cap diameter | Φ22mm-Φ80mm（Could be customized） | Φ18mm-Φ80mm（Could be customized） | Φ18mm-Φ80mm（Could be customized） |
| Bottle diameter | Φ35mm-Φ140mm（Could be customized） | Φ35mm-Φ140mm（Could be customized） | Φ35mm-Φ140mm（Could be customized） |
| Bottle sealing height | 38mm-300mm（Could be customized） | 38mm-300mm（Could be customized） | 38mm-300mm（Could be customized） |
| Power | 1.5KW | 2KW | 1.5KW |
| Voltage | 220V、50HZ | 220V、50HZ | 220V、50HZ |
| Air pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.5-0.7Mpa |
| weight | 250kg | 350kg | 300kg |
| Dimensions | H3000*W800*L1600mm | H3120*W1544*L2122 | H3100*W1244*L2122 |

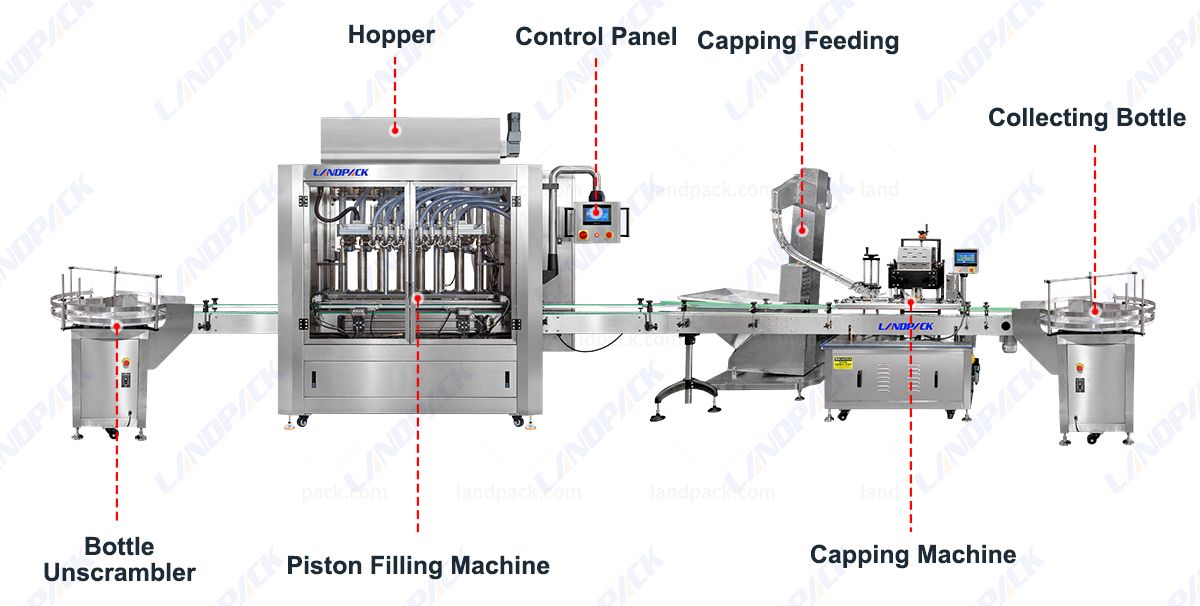

Machine Key Components:
1. Bottle Unscrambler, 2. Hopper, 3. Piston Filling Machine, 4. Control Panel, 5. Capping Feeding, 6. Capping Machine, 7. Collecting Bottle
Feature:
1. Complete automatic line from bottle feeding to capping.

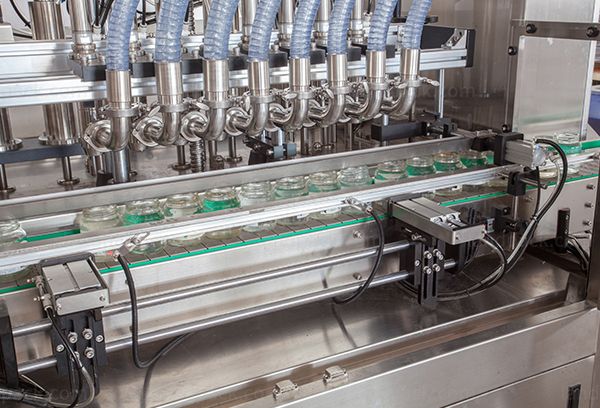

2. Piston filling system for accurate and stable dosing.
3. Suitable for liquid and high-viscosity products.
4. Adjustable filling volume for different bottle sizes.
5. Smooth bottle conveying with stable operation.
6. Automatic cap feeding and precise capping.
7. Easy operation with PLC and touchscreen control.
8. Food-grade stainless steel construction.
9. Modular design for flexible line configuration.
10. Can be integrated with labeling and packing systems.
