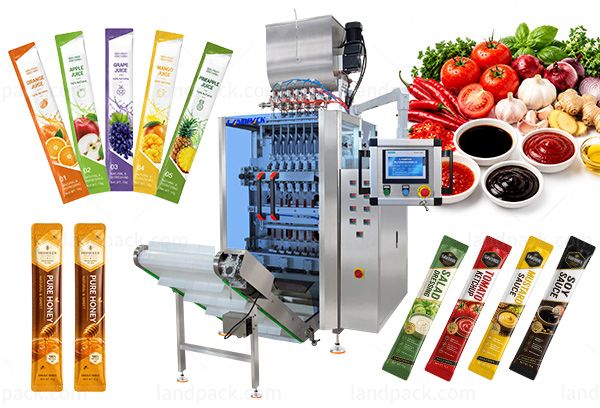

Automatic Sauce Packing Machine Multi Lane Sachet Stick Packing Machine
Model: LDTS-560L
This multi lane sauce packaging machine for ketchup sachets, with piston filling, ribbon coding, easy-tear notch and round-corner cutting, up to 35 cycles/min.
Application:
Application:
This sauce sachet packing machine packs ketchup, tomato sauce, chili sauce, mustard, salad dressing, jam, honey, and similar liquid or paste products into small single-serve sachets. Six lanes fill and seal at the same time, making the line suitable for condiment factories, food plants, restaurants, and takeaway sauce packet production. The sauce packet packing machine runs up to 35 cycles/min, depending on the filling volume and product thickness.

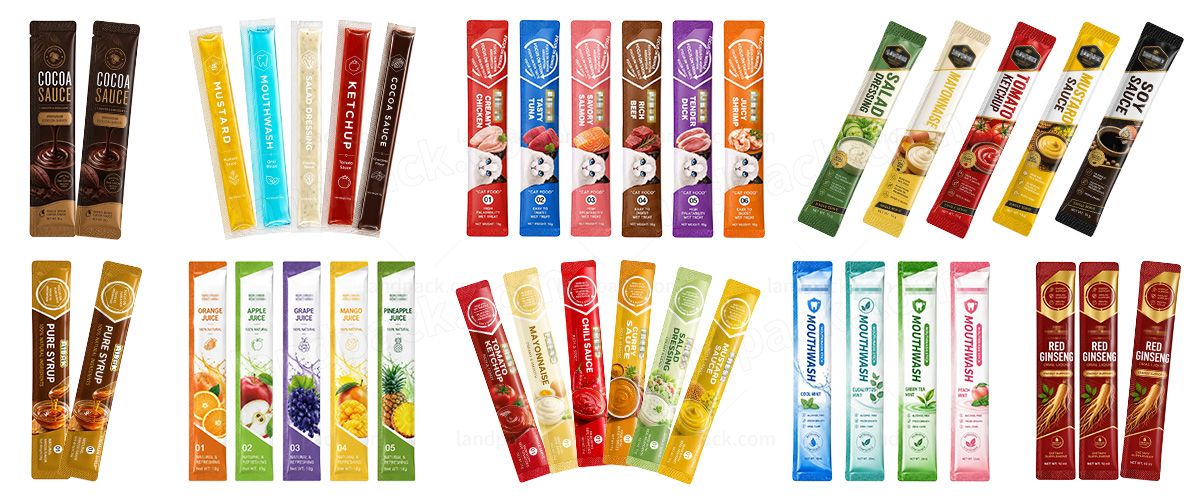

Package Type:
The machine makes three-side seal sachets from roll film. It supports narrow stick packs, custom-shaped sachets, rounded corners, and straight easy-tear notches. Common film options include PET/PE, PET/AL/PE, and other laminated films used for ketchup, sauce, and jam packets.

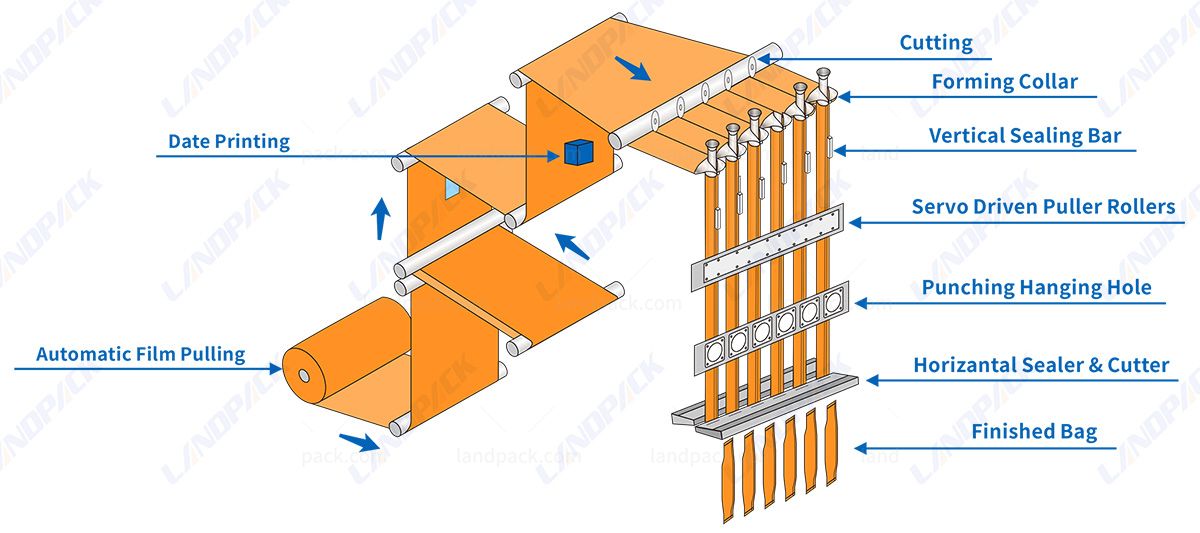

Workflow:
1. Roll Film Feeding, 2. Ribbon Code Printing, 3. Piston Pump Metering, 4. Sauce Filling, 5. Servo Film Pulling, 6. Heat Sealing, 7. Shape Cutting, 8. Finished Sachet Output
| Model | LDTS-280L | LDTS-560L |
| Track Number | 4-6 Lines | 8-12 Lines |
| Filling Method | 1. Piston pump; 2. Peristaltic Pump; 3. Volumetric cup | |
| Capacity | Max.35 cycles/min | |
| Sachet Size | L: 50-180mm; W: 17-30mm | L: 50-180mm; W: 17-30mm |
| Film Width & Thickness | Max.280mm; 0.07-0.1mm | Max.560mm; 0.07-0.1mm |
| Sealing Type | Backsealing/ Stick bag/ 3 side sealing | |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting; 4. Irregular | |
| Air & Power | 0.8 mpa, 0.8m³/min, 2.8kw | 0.8 mpa, 0.8m³/min, 4.1kw |

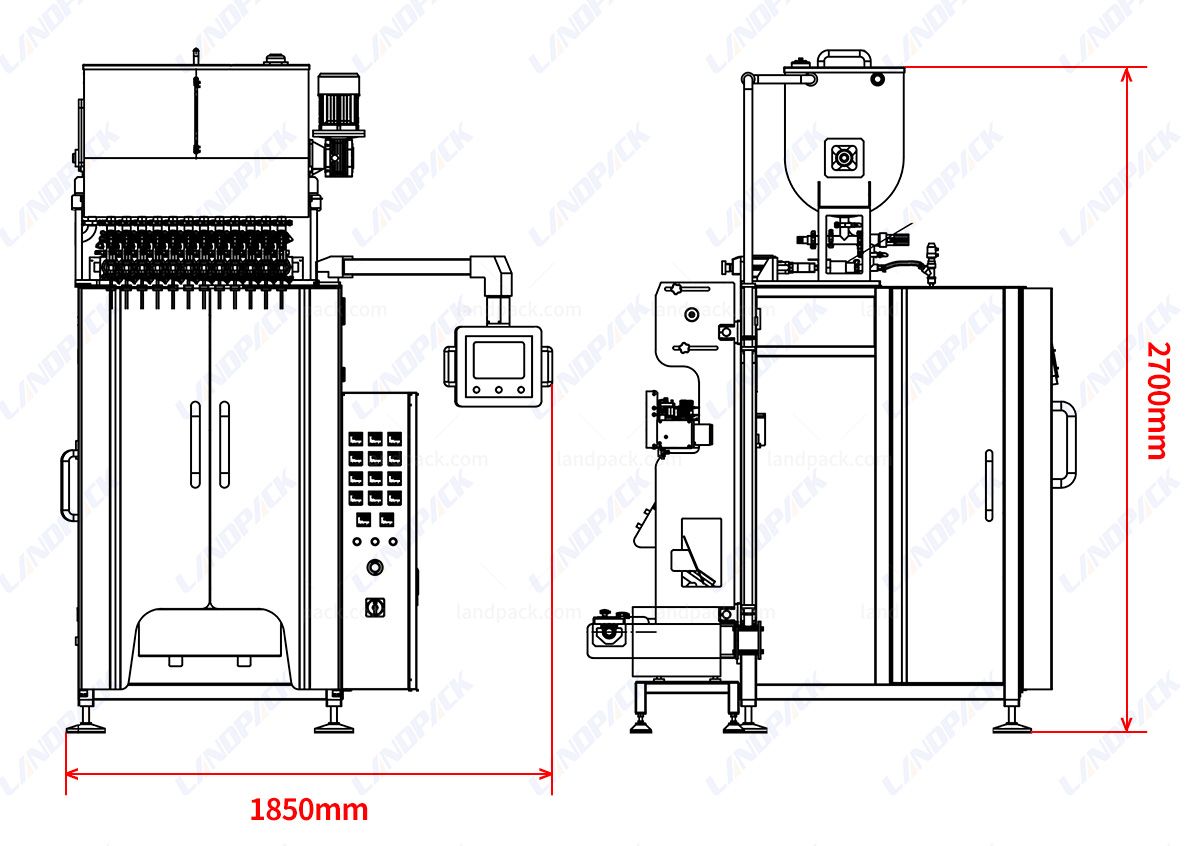

| Dimension & weight | 1385*918*2005mm; 350kg | 1685*1300*2005mm; 550kg |

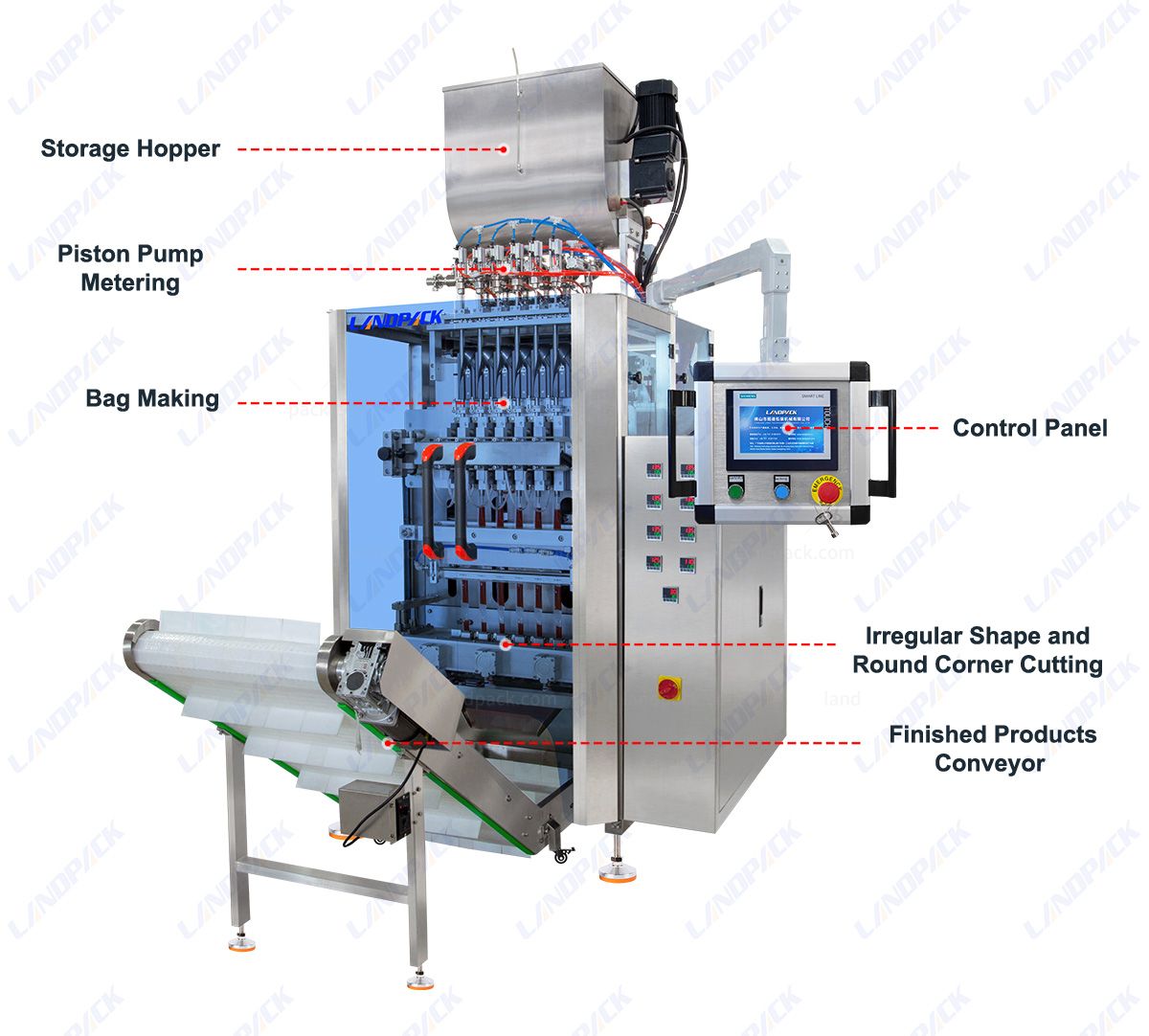

Machine Key Components:

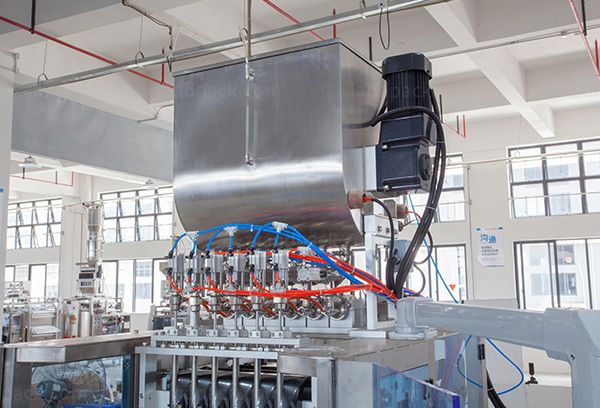

1. Storage Hopper 2. Piston Pump Metering 3. Bag Making 4. Control Panel 5. Irregular Shape and Round Corner Cutting 6. Finished Products Conveyor
Feature:
1. Six lanes produce six sauce sachets in each cycle.
2. Full SS304 frame suits regular food production.
3. Servo drive keeps film pulling steady and smooth.

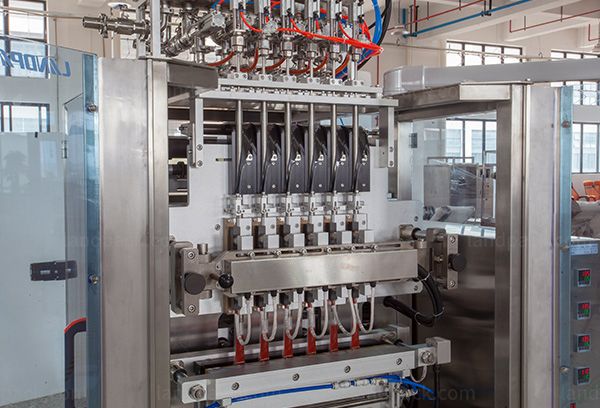

4. Separate piston pumps control filling for each lane.
5. Forms, fills, seals, and cuts directly from roll film.
6. Custom cutters make irregular shapes and rounded corners.
7. Straight easy-tear notch helps users open each packet.
8. Ribbon coder prints date and batch information.
9. Sealing jaws leave even edges and complete corner cutsney, fruit juice, tomato sauce, chili sauce, soy sauce, vinegar, oil and other condiments.
