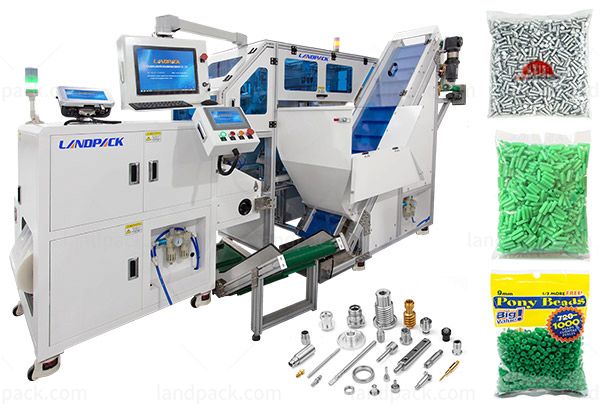

High Speed Hardware Counting Packing Machine with Coding System Fastener Packaging Machin
Model: Hardware Counting Packing Machine
Automatic counting packing machine with servo CCD vision, tubular-film bagging, thermal transfer coding and vent punching for fasteners and small parts.
Application:
Suitable for hardware, fastener, rubber O-rings, silicone parts, plastic connectors, metal components, candy and other small discrete products.
Application:
It can be used in hardware, electronics, plastic processing, sealing component, confectionery and spare-parts production lines where automatic product feeding, CCD visual counting, bag forming, coding and sealing are required. Such as silicone washers, rubber gaskets, electrical terminals, plastic fittings, metal sleeves, nuts, bolts, wall plugs, chocolate beans, mint candy, chewing gum balls, marshmallows, small cookies and individually counted snack products.
Package Type:
Suitable for transparent tube film formed into pillow-style bags with heat-sealed ends for small counted products.
Workflow:

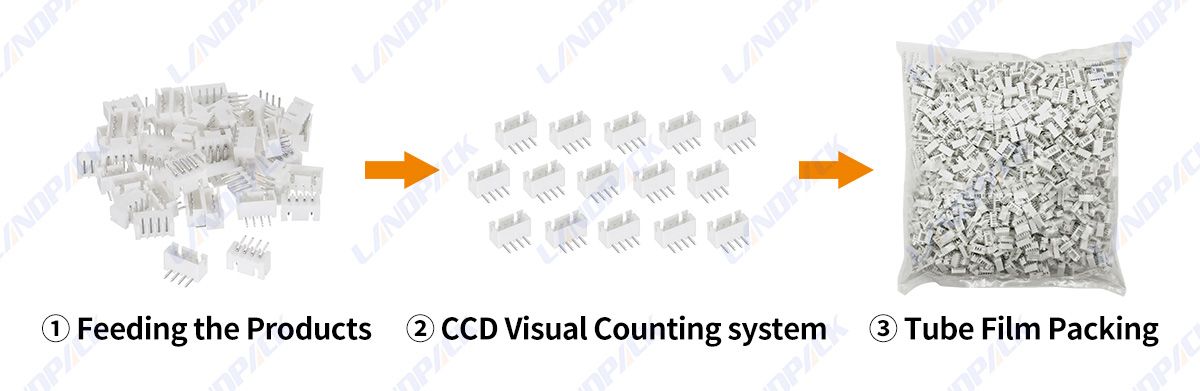

1. Automatic Product Feeding → 2. Servo-Controlled Product Separation and Conveying → 3. CCD Visual Recognition and Counting → 4. Tube Film Unwinding and Feeding → 5. Product Filling into the Formed Bag → 6. Optional Date, Logo or Barcode Coding → 7. Heat Sealing and Bag Cutting → 8. Finished Package Output.
| Machine Name | Full Servo Visual Counting Tube Film Packing Machine |
| Applicable Products | Rubber rings, silicone parts, O-rings, small plastic parts, food-grade small components |
| Packaging Material | Tube film/roll film |
| Packaging Type | Tube film bag with top and bottom sealing |
| Feeding Method | Automatic elevator feeding |
| Counting System | CCD visual counting system |
| Control System | PLC + HMI touch screen |
| Drive System | Full servo controlled belt feeding |

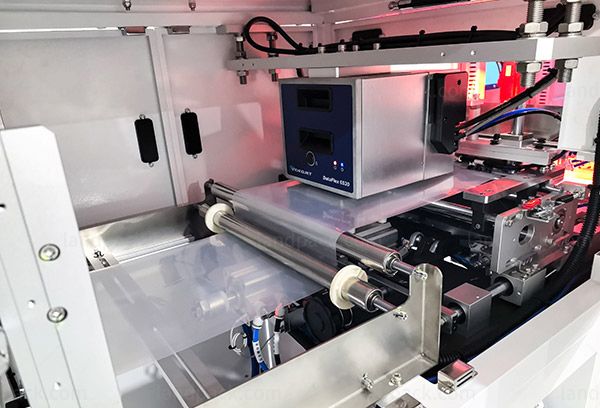

| Coding Device | Videojet thermal transfer printer |
| Printing Content | Logo, date, barcode, QR code, batch number |
| Optional Function | Punching and air exhaust device |
| Output Method | Finished product conveyor |
| Application Industry | Rubber, silicone, food-grade components, small parts packaging |

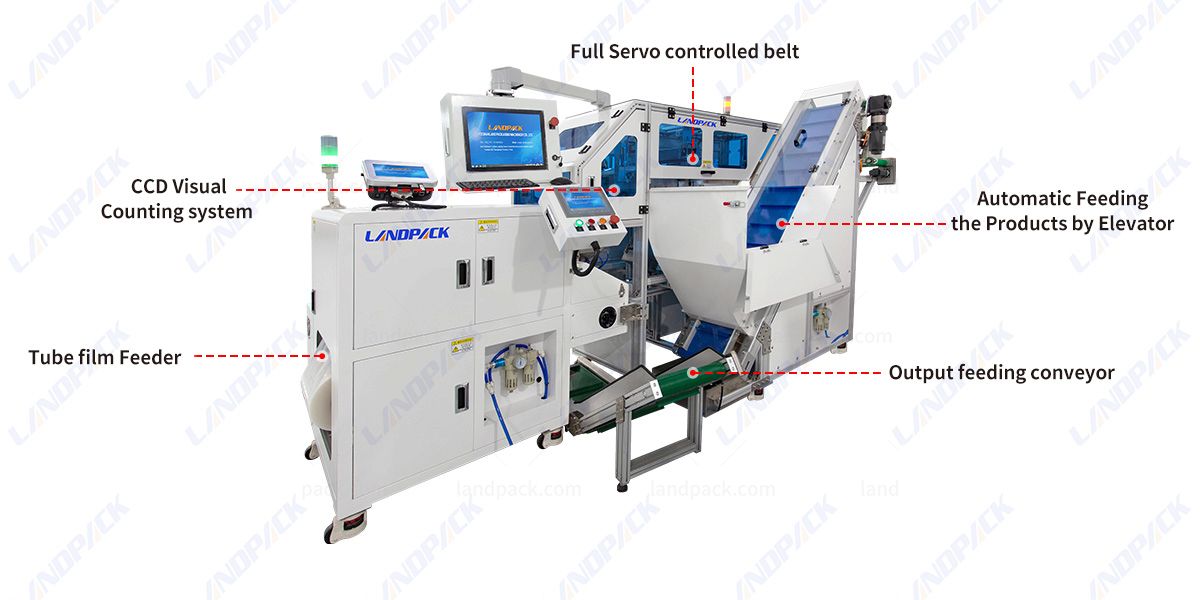

Machine Key Components:
Feature:
1. Automatic elevator feeding transfers bulk products continuously into the counting section.
2. CCD visual counting system identifies and counts each product before packaging.

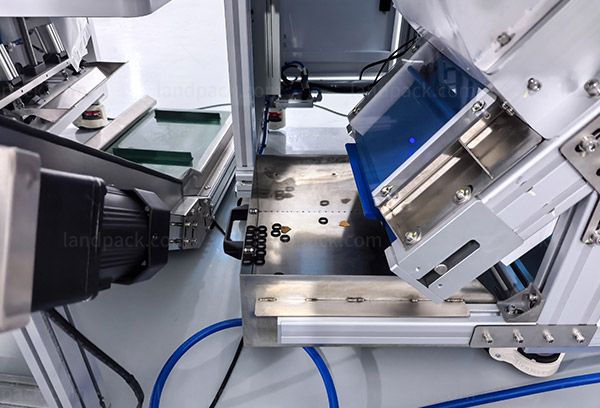

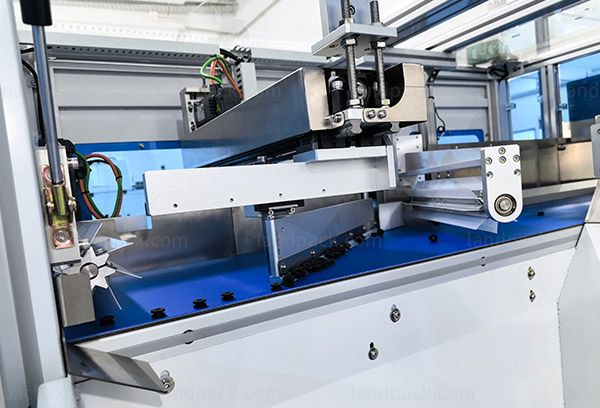

3. Full-servo controlled belts can be adjusted according to different product dimensions and conveying requirements.
4. Tube film feeding system forms bags directly from continuous tubular film without premade pouch feeding.
5. The control system allows operators to set the required quantity for each package.
6. The machine can handle rubber, silicone, plastic, metal and selected food products with clear separation between applications.
7. Optional coding equipment can print logos, production dates, batch numbers, barcodes and QR codes.
8. Automatic sealing and cutting complete each package after the preset quantity has been reached.
9. HMI control provides access to counting, conveying, film feeding and sealing parameters.
10. Customized feeding channels and conveyor structures can be designed according to the product shape and size.
