Full Automatic 6 Heads Liquid Filling Machine
Model: LD-LF025
Application:
It is used the fill a wide range of water-thin to low-viscosity liquids without gas. Such as juice, soy sauce, vinegar, edible oil, oral liquid, disinfectant, pesticide, chemicals, detergent, lubricating oil, cosmetics, and so on.
Equipent Charcteristics:
- Fully pneumatic control
- Wide suitability
- High filling accuracy
- Labor-saving
- Easy to use and maintain
Application:
It is used the fill a wide range of water-thin to low-viscosity liquids without gas. Such as juice, soy sauce, vinegar, edible oil, oral liquid, disinfectant, pesticide, chemicals, detergents, lubricating oil, cosmetics, and so on.
Examples: Such as Cosmetics, laundry detergent, shampoo, shower gel, hand soap, sauce, lubricating oil, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples:
| Model: | LD-LF025 |
| Nozzles: | 6 nozzles (4, 6, 8, 10, are customizable) |
| Output: | 3600 BPH |
| Filling Capacity: | 40-1600 ml |
| Measurement Accuracy: | ≤±1% |
| Contained Conveyor Belt: | 6 meters |
| HMI: | LCD Touch Screen (Brand of Delta) |
| Control System: | PLC (Brand of Delta) |
| Voltage: | AC Three-phase 380V 1.5Kw |
| Air Pressure: | 0.5-0.8 mpa |
| Dimensions: | 2200× 1400×1800mm |
| Machine Weight: | 600 kgs |
It is made of electrical components of internationally famous brands.
1. Magnetic switch
2. PLC and touch screen from Mitsubishi

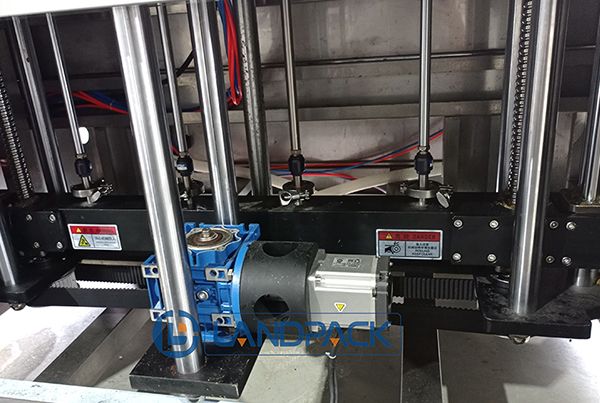

3. 6 filling nozzle
4. With a 6-meter conveyor
5. Motor: From Japan Omron Phototube
6. Filling volume: 30-500ml, 60-1000ml, 250-2500ml, 500-5000ml
7. Filling material: shower. Shampoo. Detergent. Lotion, conditioner, body spray, liquid soap, liquid hand washer, nail polish remover, etc liquid products
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
