Irregular Sachet Liquid Packing Machine Single Lane Shaped Pouch Packaging Machine
Model: LDBT-180L
Automatic irregular-shaped sachet packing machine for snow pear sauce and fruit puree, with heated mixing hopper, piston pump filling and ribbon date coding.
Application:
Such as snow pear sauce, apple puree, peach puree, mango puree, strawberry sauce, fruit jam, honey, fruit syrup, energy gel, sports nutrition gel, etc.
Application:
It can be used in food, beverage, fruit processing and nutrition product lines where automatic filling, date coding, shaped bag forming and sealing are required. Such as snow pear sauce, apple puree, peach puree, mango puree, strawberry sauce, fruit jam, honey, fruit syrup, energy gel, sports nutrition gel, vitamin gel, concentrated juice, liquid supplement, yogurt sauce and smoothie puree.
Package Type:
Suitable for laminated roll film formed into customized irregular shaped three-side seal sachets for liquid and semi-liquid products.
Workflow:

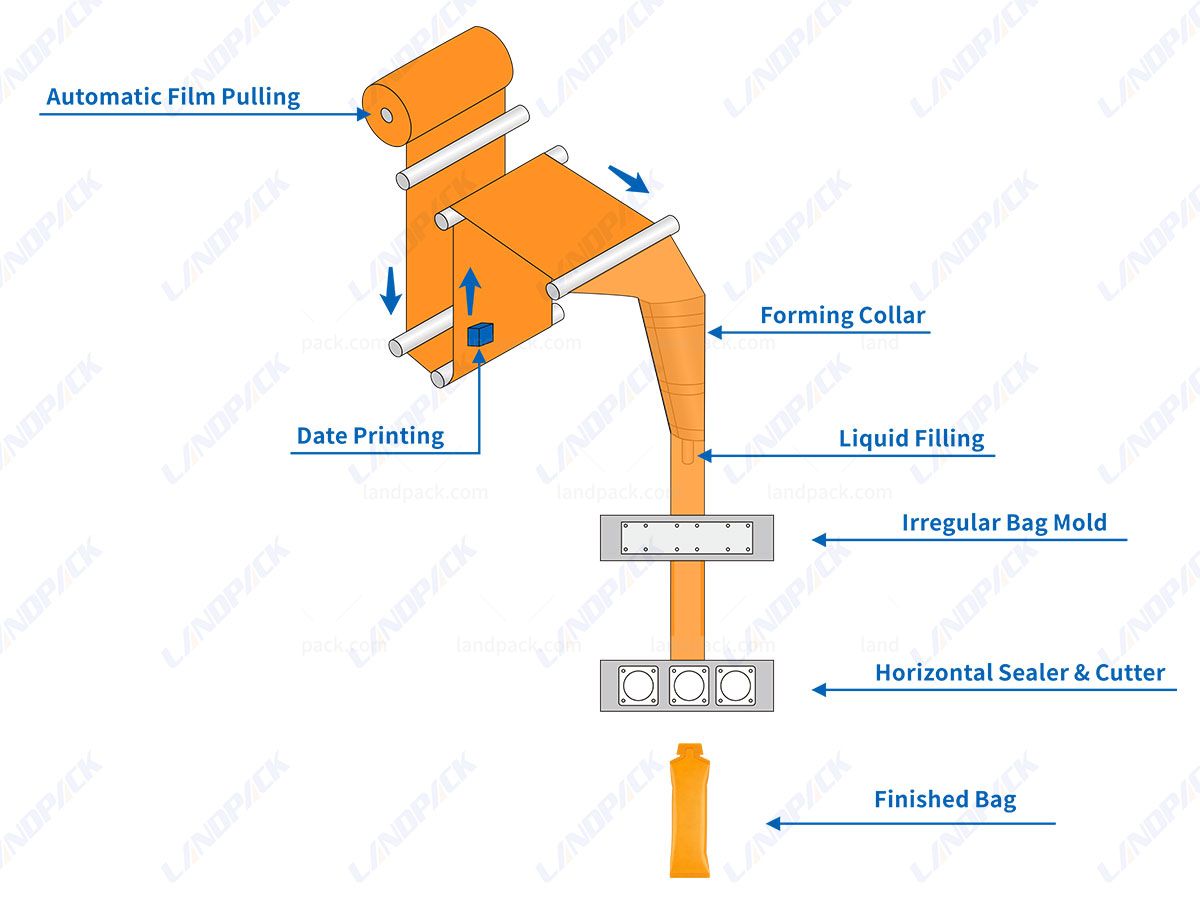

Sauce Feeding → Heating and Mixing → Ribbon Date Coding → Bag Forming → Piston Pump Filling → Irregular Shaped Bag Molding → Three-Side Sealing and Cutting → Finished Product Conveying
Model | LDYX-180L | LDYX-480L |
| Track number | 1-4 Tracks | 1-4 Tracks |
| Filling Method | 1. Piston pump, 2. Peristaltic pump | |
| Production capacity | 20-30 cycle/min | |
| Bag Size | L: 50-170mm; W: 70-230mm | L: 50-170mm; W: 100-300mm |
| Film W&D | Max. 500mm; 0.07-0. 10mm | Max. 620 mm; 0.07–0.10 mm |
| Sealing Type | Irregularly shaped bag | |
| Air & Power | 220V/380V 50HZ, 5.0kw | 220V/380V 50HZ, 5.5kw |
| Air Consumption | 0.8mpa; 0.8m³/min | 0.8mpa; 0.8m³/min |
| Weight | 800 KG | 900 KG |

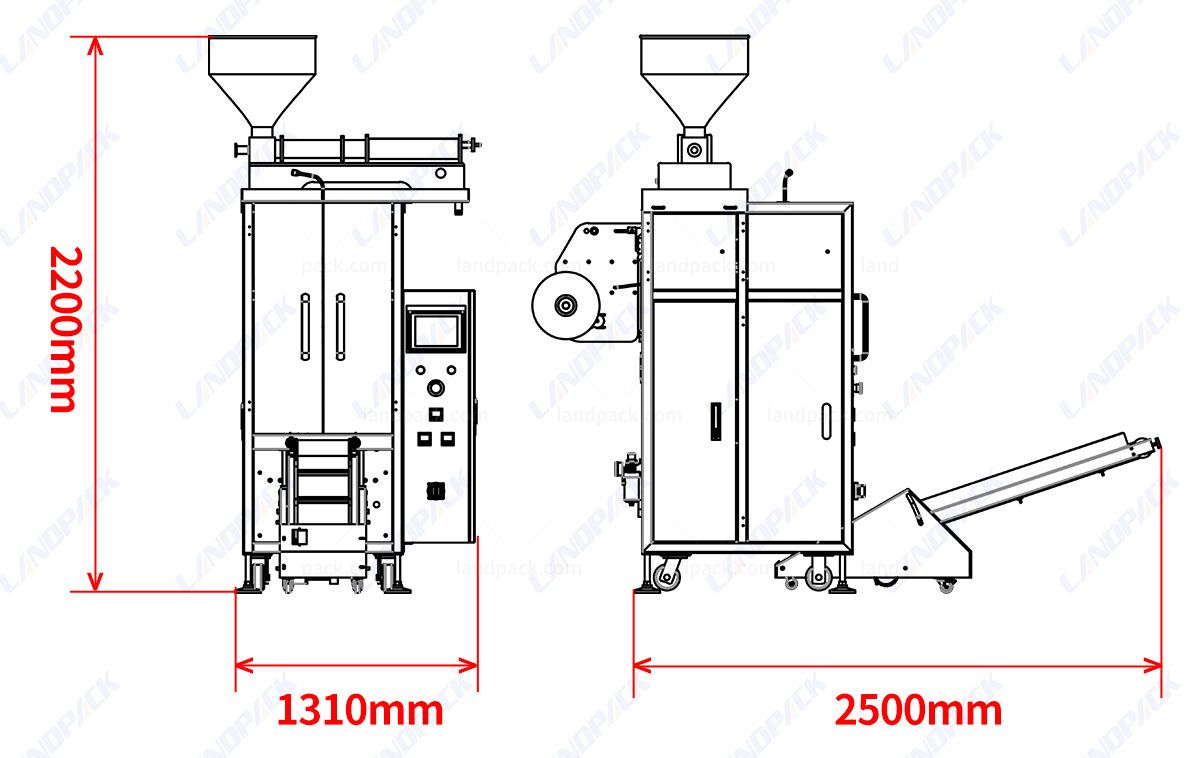

Machine size | 2600*1350*2350 mm | 2600*1450*2350 mm |

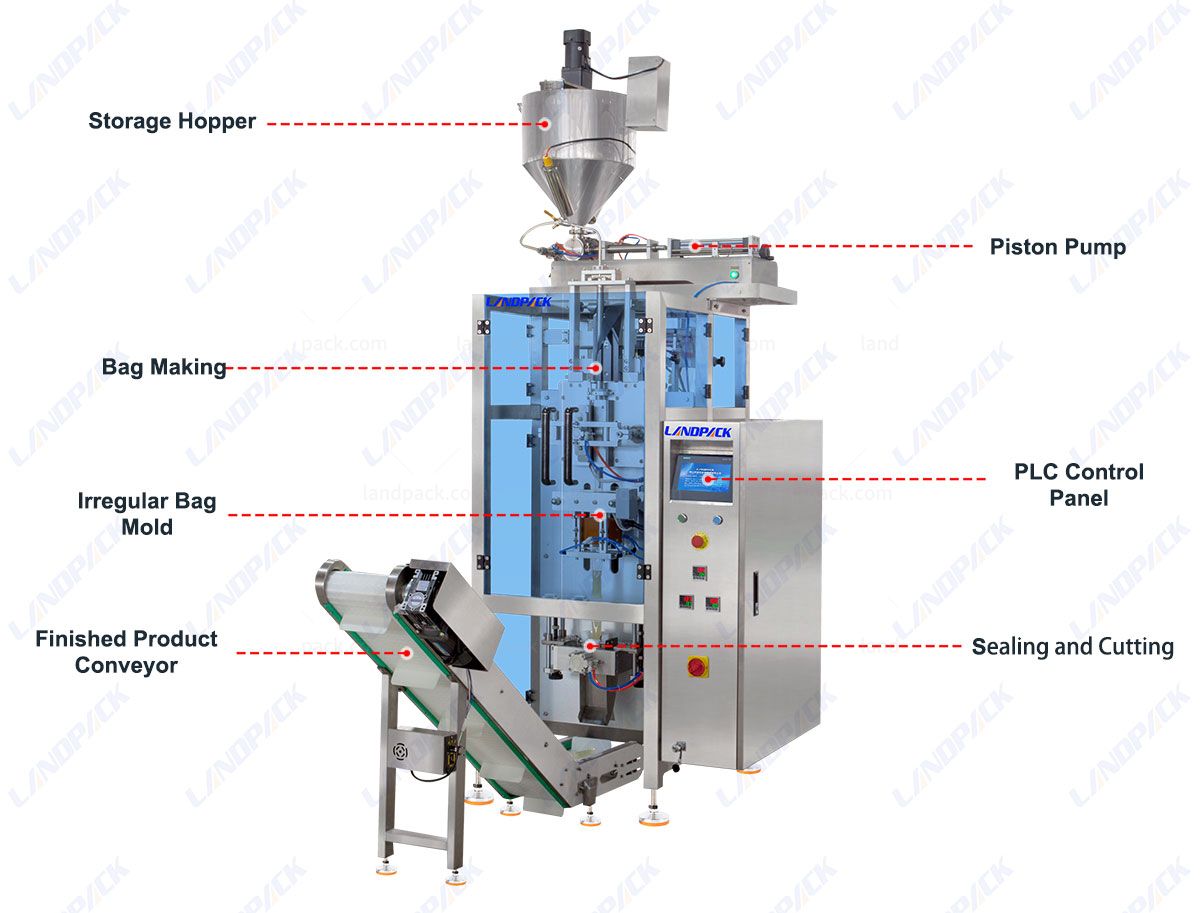

Machine Key Components:
1. Storage Hopper 2. Piston Pump 3. Bag Making 4. PLC Control Panel 5. Irregular Bag Mold 6. Finished Product Conveyor 7. Sealing and Cutting
Feature:
1. Equipped with piston pump for accurate liquid filling across different viscosities.
2. Supports customized irregular pouch molds for differentiated packaging appearance.
3. Integrated bag forming, filling, sealing, and cutting in one compact structure.
4. PLC control with touch screen for easy parameter setting and operation.
5. Stable sealing system ensures clean edges and consistent pouch quality.
6. Stainless steel contact parts suitable for food and liquid handling.
7. Adjustable filling volume with minimal material waste.
8. Compact footprint, suitable for small to medium production lines.
