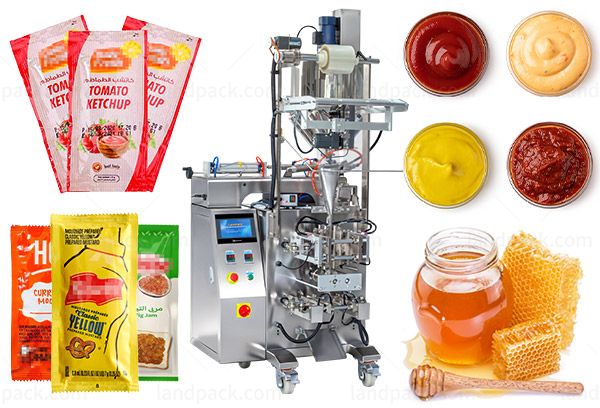

Automatic Liquid Packaging Machine Vffs Vertical Packing Machine
Model: LD-320L
It can complete dosing, bag forming, filling, sealing, cutting and finished bag output in one process.
Application:
This machine is designed for automatic sachet packaging of tomato sauce, ketchup, chili sauce, mayonnaise, salad dressing, honey, syrup, jam, shampoo, liquid soap, detergent, and other liquid or semi-liquid products.
Application:
This Liquid Packaging Machine is designed for automatic sachet packaging of Tomato sauce, ketchup, chili sauce, mayonnaise, salad dressing, honey, syrup, jam, shampoo, liquid soap, detergent, and other liquid or semi-liquid products.
Package Type:
The Liquid Packaging Machine supports a wide range of sachet styles, including 4-side seal sachets, 3-side seal sachets, pillow bags, stick packs, linked sachets and customized single-dose pouches.
Workflow:

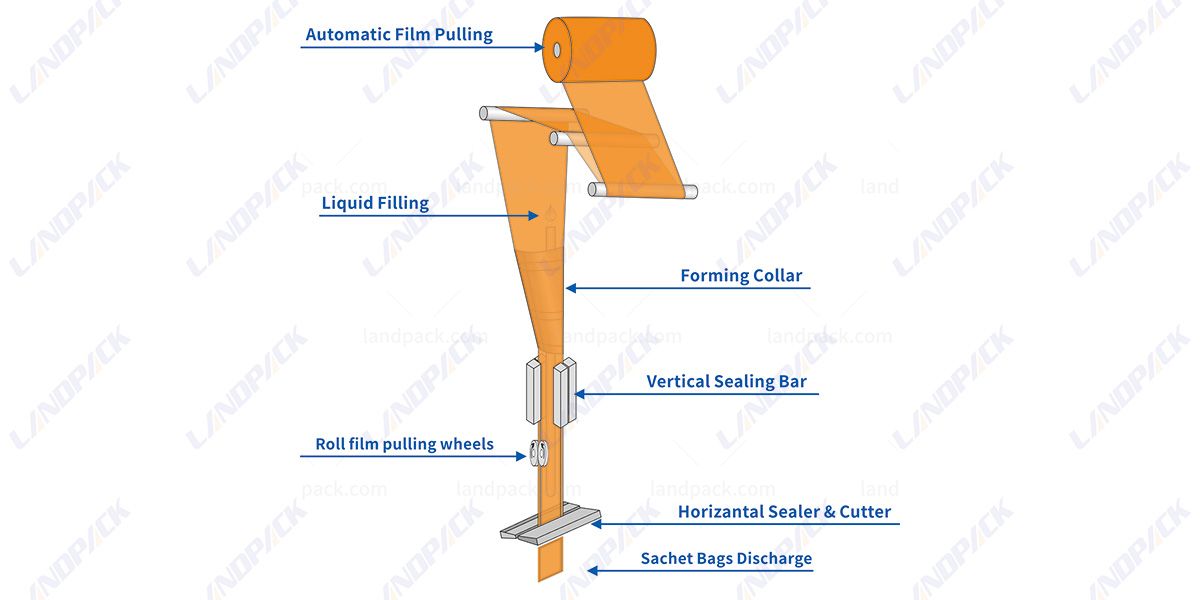

Film Unwinding → Bag Forming → Liquid Filling → Heat Sealing → Date Coding → Cutting → Finished Sachet Output
| Type | LD-320L |
| Measuring range | Piston pump measuring |
| Package form | Shaped bag |
| Dosage range | 1-50ml (Can be customized according to customer requirements) |
| Bag length | 40-160mm |
| Bag width | 20-110mm |
| Packing speed | 30-60 bags/min(According to the actual material) |
| Control system | PLC control system |
| Power | 220V, 50Hz, 2KW |
| Machine weight | 300KG |

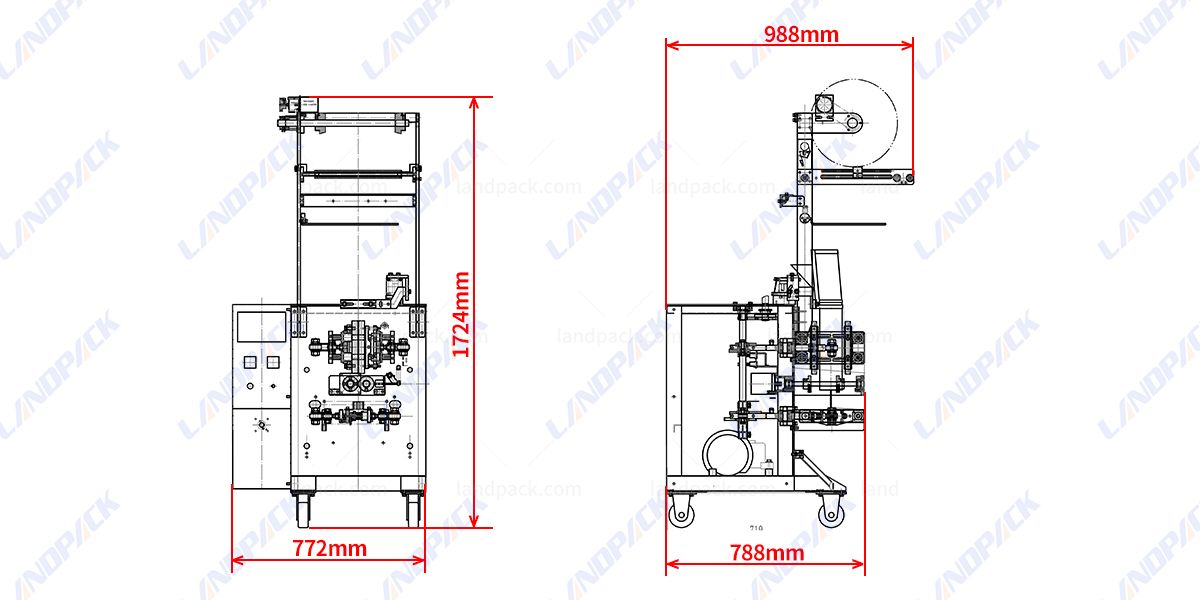

| Machine size | (L)780*(W)750*(H)1800mm |

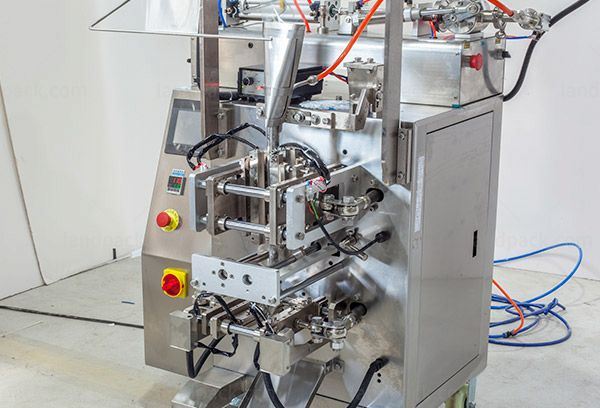

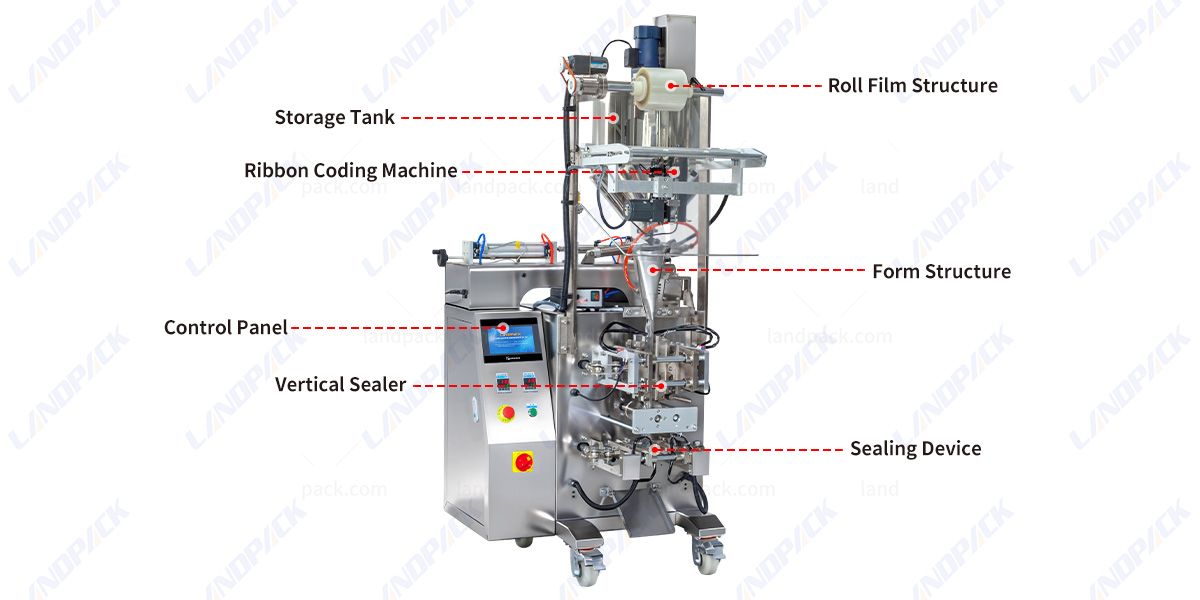

Machine Key Components:

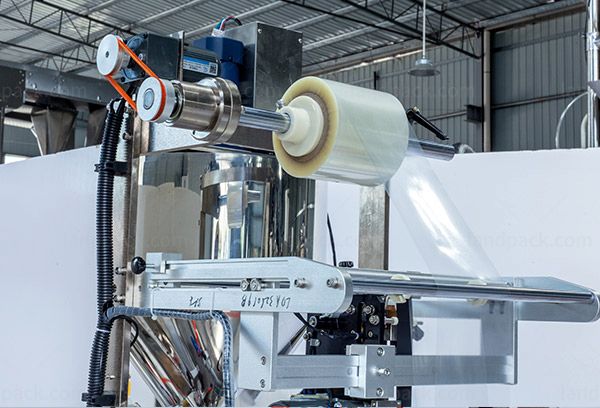

1. Storage Tank 2. Ribbon Coding Machine 3. Control Panel 4. Vertical Sealer 5. Roll Film Structure 6. Form Structure 7. Sealing Device
Feature:
1. Adjustable filling volume from small sachets to larger packs for flexible production needs.
2. High-precision dosing system ensures consistent filling accuracy.
3. AirTAC pneumatic components provide stable performance and long service life.
4. Customized forming collar supports different pouch widths and specifications.
5. Vertical sealing system delivers strong and reliable back seals.

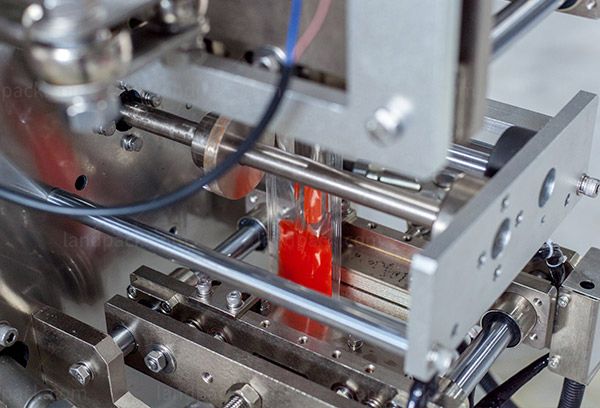

6. Horizontal sealing and cutting unit creates neat pouch edges and consistent bag lengths.
7. Intelligent touch screen control allows quick parameter adjustment and easy operation.
8. Adjustable sealing temperature ensures excellent sealing quality across various packaging films.
