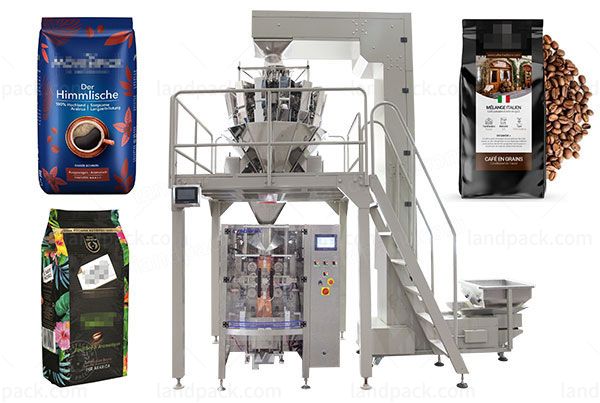

Automatic Coffee Bean Pouch Packaging Machine With Exhaust Valve
Model: LD-420AC
Application:
Automatic Coffee Bean Pouch Packaging Machine With Exhaust Valve(LD-420AC), it is suitable for Coffee Beans, puffed food, patoto chips, crispy rice, jelly, candy, pistachios, apple slices, banana chips, frozen food, vegetable salad, dumplings, glutinous rice balls, chocolate, pet food, hardware itms, medicines and so on.
Application:
Automatic Coffee Bean Pouch Packaging Machine With Exhaust Valve(LD-420AC), it is suitable for Coffee Beans, puffed food, patoto chips, crispy rice, jelly, candy, pistachios, apple slices, banana chips, frozen food, vegetable salad, dumplings, glutinous rice balls, chocolate, pet food, hardware itms, medicines and so on.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples
| Model | LD-420AC | LD-520AC | LD-720AC | LD-900AC | LD-1050AC | LD-1200AC |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
1.The automatic exhaust valve is installed on the bag, which is suitable for the packaging of products requiring exhaust
2. Multi-head combined weigher, improve metering speed and accuracy.
3. 7inch touch screen, easy operation and multiple language for choice.
4. Imported PLC system, machine performance is stable and easy for parameters adjusting.
5. With a memory function for storage ten sets of parameters. Easy to change packing product.
6. Separate PID temperature controller, suitable for various packing materials.
7. Multi-union roll film pulling system make film running more smooth.
8. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.
9. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.
10. Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.
11.Low loss, labor saving, easy for operation and maintenance.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
