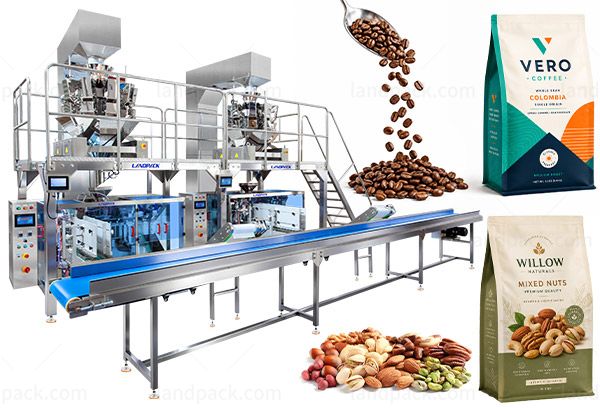

Automatic Coffee Packing Machine Horizontal Premade Pouch Coffee Bean Packaging Machine Line
Model: LDSP-210A
Dual-line nuts packing machine with two 10-head weighers and premade pouch fillers for peanuts, cashews and almonds.
Application:
Suitable for automatic weighing and premade pouch packing of peanuts, mixed nuts, coffee beans, dried fruits, beans, popcorn, seeds and snack granules.
Application:
This nuts packing machine fills cashews, raisins, roasted peanuts, coffee beans, pistachios, broad beans, almonds, mixed nuts, sunflower seeds, chickpeas, pumpkin seeds, dried cranberries, peanuts and other free-flowing granular products into premade pouches. Two independent packaging lines operate simultaneously, and each line includes a Z-type elevator, 10-head combination weigher, horizontal premade pouch machine and finished-product conveyor.
Package Type:
The machine handles premade pouches, block-bottom pouches, stand-up pouches, M shape pouches, flat pouches, and zipper pouches when fitted with the matching opening device. It works with printed laminated bags in different widths, lengths, and filling weights.

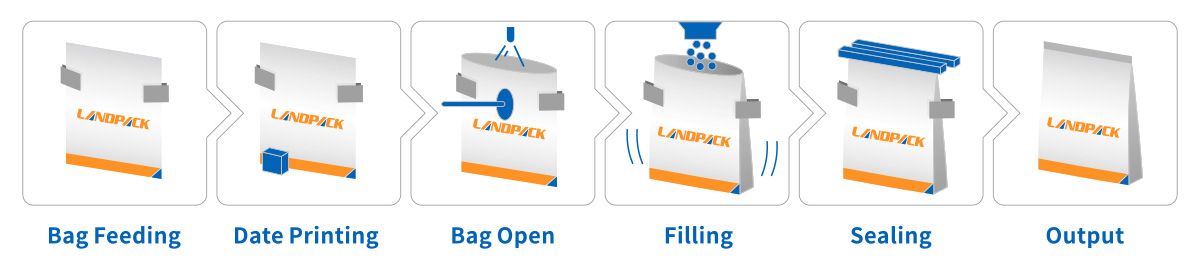

Workflow:
1. Z-Type Feeding, 2. 10-Head Weighing, 3. Pouch Feeding, 4. Date Coding, 5. Pouch Opening, 6. Nut Filling, 7. Pouch Sealing, 8. Finished Product Lifting, 9. Collection Conveying
| Type | LDSP-160 | LDSP-210 | LDSP-260 |
| Bag Type | Stand-up Pouch, M-shape Pouch, Flat Pouch, Zipper Pouch, etc. | ||
| Bag Size | 110-230mm*80-160mm(L*W) | 100-210mm/110-320mm（L*W） | 100-260mm/110-320mm（L*W） |
| Filling Range | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45 bags/min | 20-50 bags/min | 20-50 bags/min |
| Machine weight | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of the product | ||
| Dimensions | 1750*1285*1360mm(L*W*H) | 2140*1366*1360mm(L*W*H) | 2140*1366*1360mm(L*W*H) |
| Collocation | Screw metering, screw elevator | ||

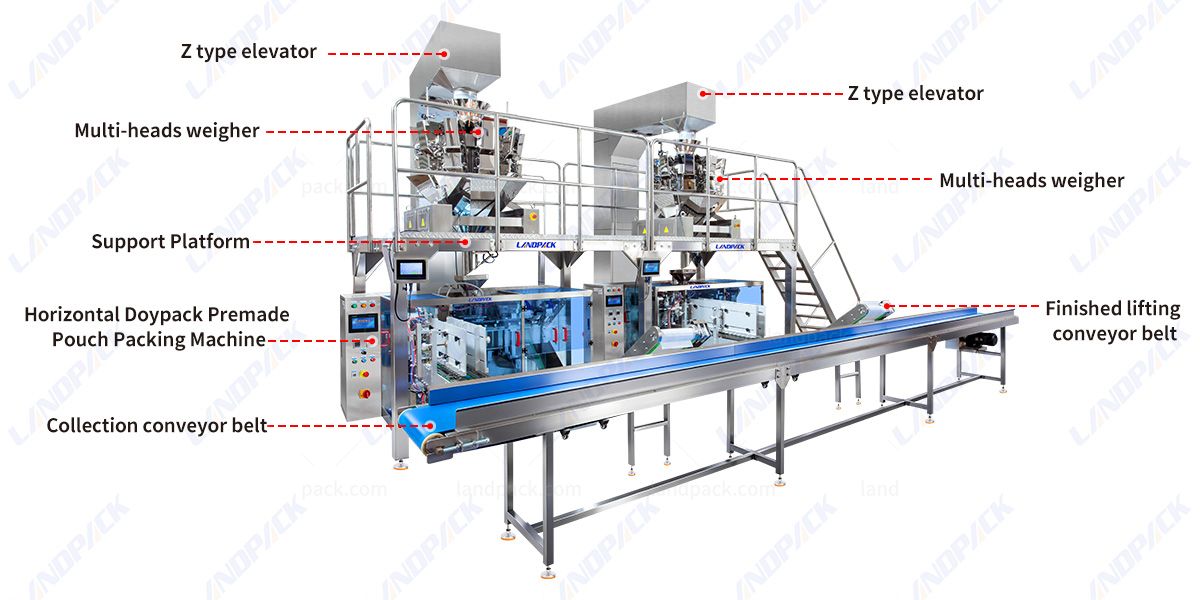

Machine Key Components:
Feature:

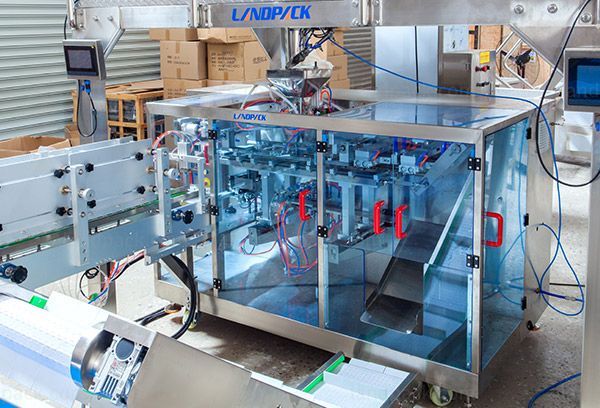

1. Two horizontal premade pouch machines operate as independent packaging lines.
2. Two 10-head combination weighers control the filling weight of each line.
3. Z-type elevators continuously feed nuts and reduce manual loading.
4. Pouch magazines store premade bags for automatic pouch feeding.

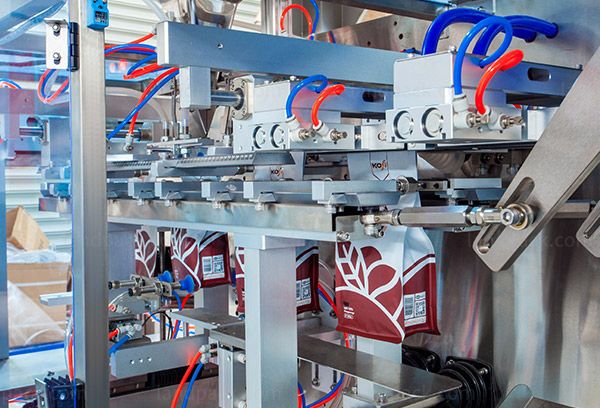

5. Horizontal pouch transfer keeps block-bottom bags stable during filling.

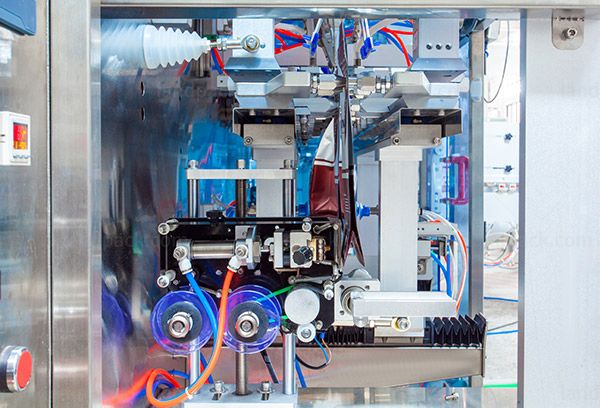

6. The sealing units handle thick laminated premade pouches.
7. Date coders print batch numbers, production dates, or expiry information.
8. Independent control systems allow each line to pack different products or weights.
9. Finished-product conveyors transfer sealed pouches away from both machines.
10. The dual-line design maintains production when one line stops for adjustment or pouch replenishment.
