Automatic Doypack Premade Pouch Packing Machine for Sticky Prunes and Nuts
Model : LDSP-210A
Application :
This machine is widely used for packaging sticky dried fruits like prunes, dates, and raisins, mixed or single nuts such as cashews, almonds, and pistachios, trail mix, granola clusters, jelly candies or soft confectionery, and small irregular granules with sticky surfaces.
Application:
The LDSP-210A is widely used for packaging sticky dried fruits like prunes, dates, and raisins, mixed or single nuts such as cashews, almonds, and pistachios, trail mix, granola clusters, jelly candies or soft confectionery, and small irregular granules with sticky surfaces.
Applicable bag type:
It can adopt all types of heat-sealable bags, including side-seal bags, block-bottom bags, zip-lock recloseable bags, stand-up pouches with or without spouts, paper bags, flat pouches, zipper pouches, spout pouches, MGusset pouches, paper pouches, aluminum foil pouches, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
| Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc. | |||
| Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm（L*W） | 100-260mm/110-320mm（L*W） |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 25-50bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
| Machine weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product | |||
| Dimensions | 1750mm X 1285mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | |
| Collocation | Screw metering,screw elevator | |||

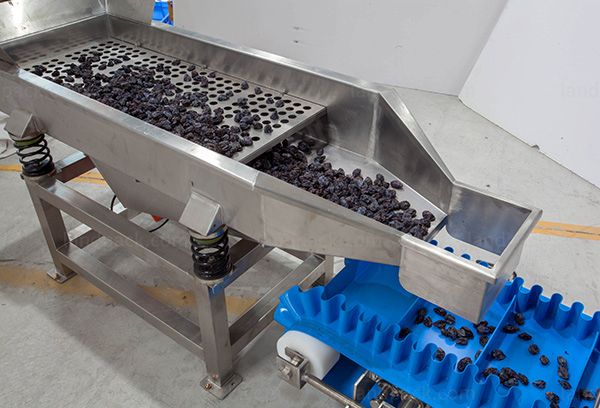

1. Special vibrating mesh system prevents sticky products like dried prunes from clumping together.
2. Washable conveyor belt with waterproof motor allows easy cleaning without damaging equipment.

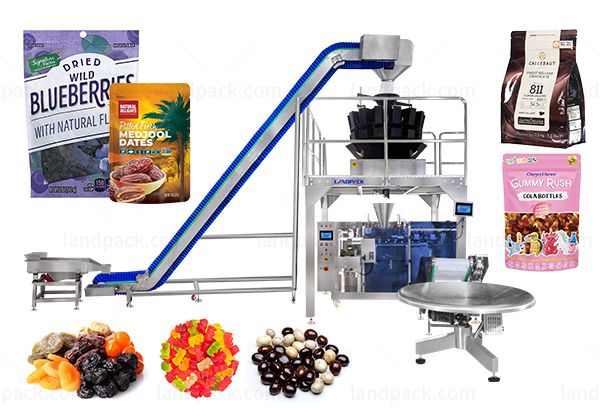

3. 14-head weigher with Teflon-coated plates and vibrating feeder prevents sticky materials from affecting accuracy.

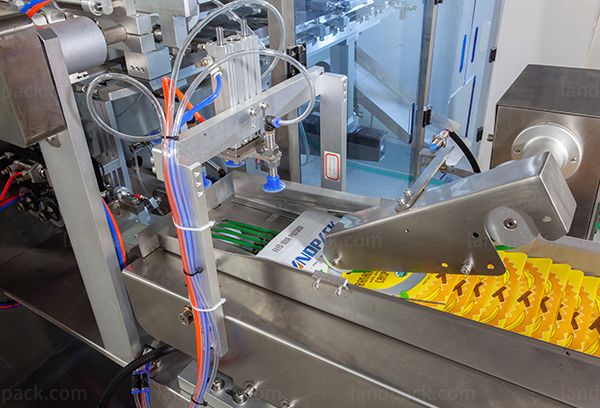

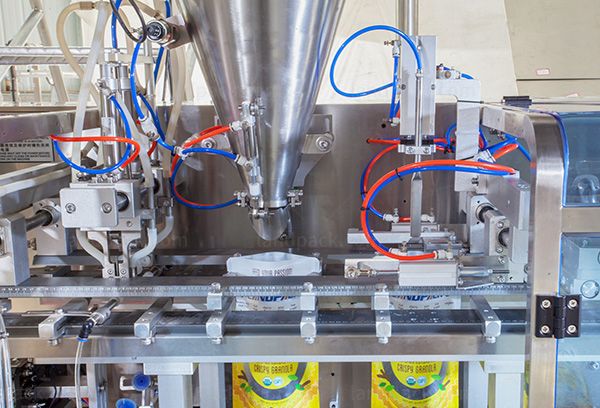

4. Fully automated horizontal pouch machine handles feeding, coding, opening, filling, nitrogen flushing, and sealing.
5. Built-in nitrogen flushing extends shelf life by reducing oxygen, perfect for nuts and dried fruits.
6. Space-saving design includes rotary table and product conveyor for smooth packaging with less manual work.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
