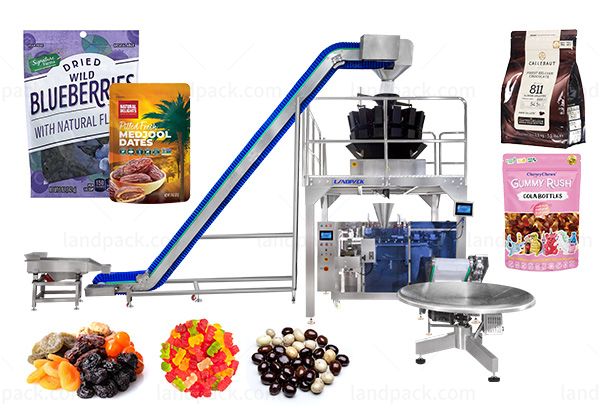

Automatic Dry Fruit Doypack Pouch Packing Machine With Chain Bucket Feeding
Model: LDSP-160B
Application :
It is suitable for packaging various granular, block, strip and stick products, such as dry fruits, candy, pet food, snacks, egg rolls, chocolate, popcorn, frozen foods, pills, nuts, puffed foods, etc.
Suitable Pouch :
Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Application :
It is suitable for packaging various granular, block, strip and stick products, such as dry fruits, candy, pet food, snacks, egg rolls, chocolate, popcorn, frozen foods, pills, nuts, puffed foods, etc.
Suitable Pouch :
Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Kindly Reminder :
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers :
| Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc. | |||
| Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm（L*W） | 100-260mm/110-320mm（L*W） |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 25-50bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
| Machine weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product | |||
| Dimensions | 1750mm X 1285mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | |
| Collocation | Screw metering,screw elevator | |||

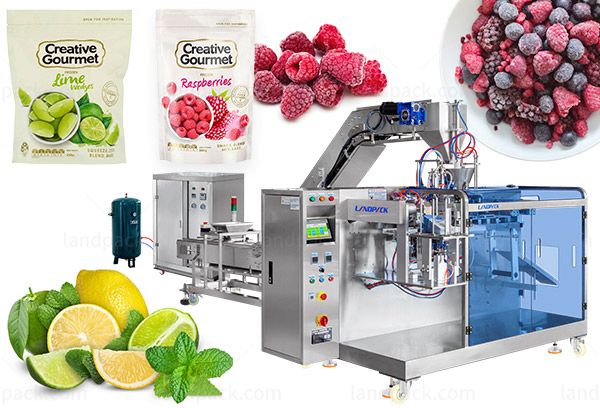

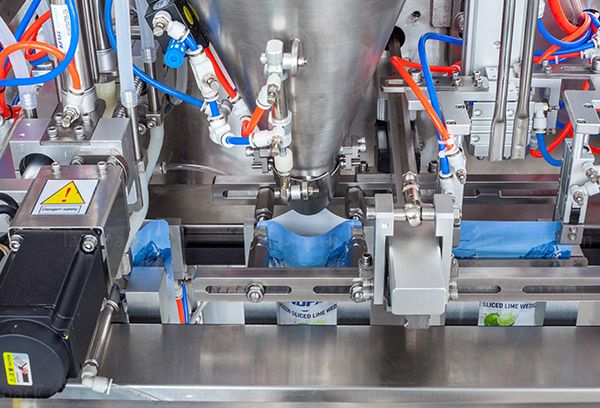

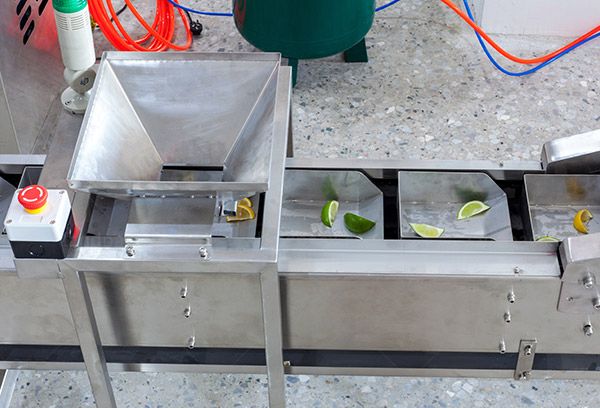

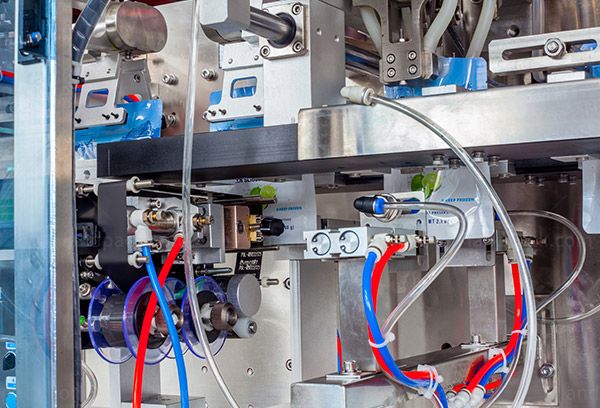

1. This machine offers a fully automated workflow, handling everything from manual product loading and chain bucket feeding to automatic bag dispensing, opening, filling, vacuuming, nitrogen flushing, sealing, and product discharge.
2. It includes vacuum and nitrogen flushing functions to preserve freshness and extend shelf life, ensuring longer-lasting product quality.
3. Designed with a compact structure, it saves floor space and fits well in small or limited factory layouts.
4. The user-friendly interface allows for easy operation with simple controls, enabling quick setup and smooth production.
5. Compatible with various premade pouches like flat, stand-up, and zipper bags, it uses reliable international electric components for stable performance and cost-efficient operation.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
