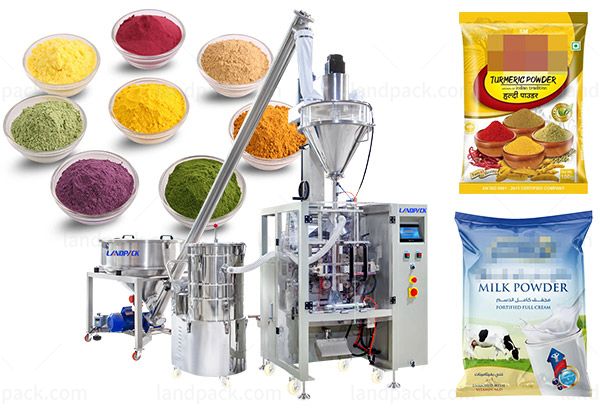

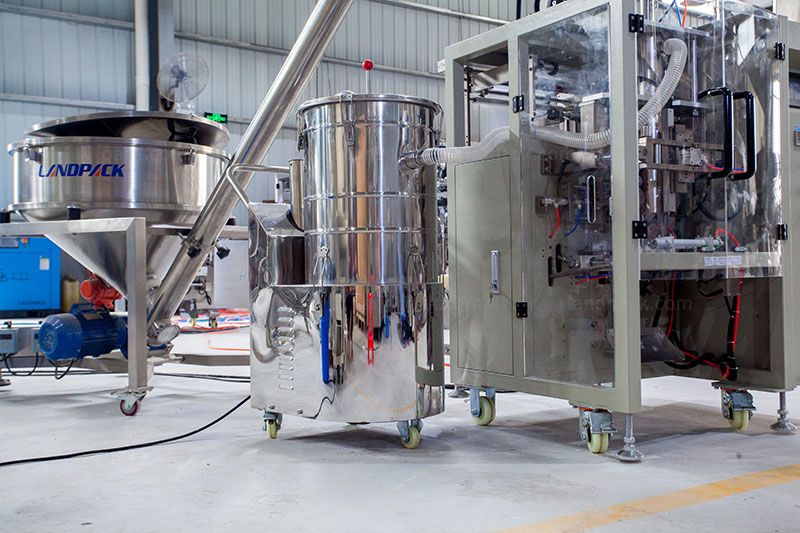

Flour Packing Machine Vertical Powder Packaging Machine with Industrial Vacuum Cleaner

Application:

Engineered for flour, cake mixes, protein powder, spice, yeast powder, milk powders and other fine blends, the system excels where dust control and fill precision matter.

Package Type:

This vertical powder packaging line supports a wide range of pouch styles, including standard pillow bags, gusseted bags, quad-seal bags, and flat pouches. The forming collar and sealing system are designed for clean powder handling, ensuring tight seams and stable bag shapes even with low-fluidity materials like flour, starch, and blended powders.

Suitable Products:

This Automatic Flour Packing Machine is specifically designed to provide efficient and precise packaging of a variety of powders from industries like food, chemical industrial, agricultural, and industries. It provides the safest filling and sealing and fast operation for both medium and fine density powders.

Food & Beverage Powders: Flour & Starch, Seasoning Powders, Milk Powder, Coffee Powder

Home Care & Daily Chemical Powders: Laundry Detergent, Bleaching Powder, Fragrance Powder, Enzyme Powders

Industrial & Agricultural Powders: Fertilizer Powder, Construction Additive Powders, Mineral Powders, Fine Industrial Powders

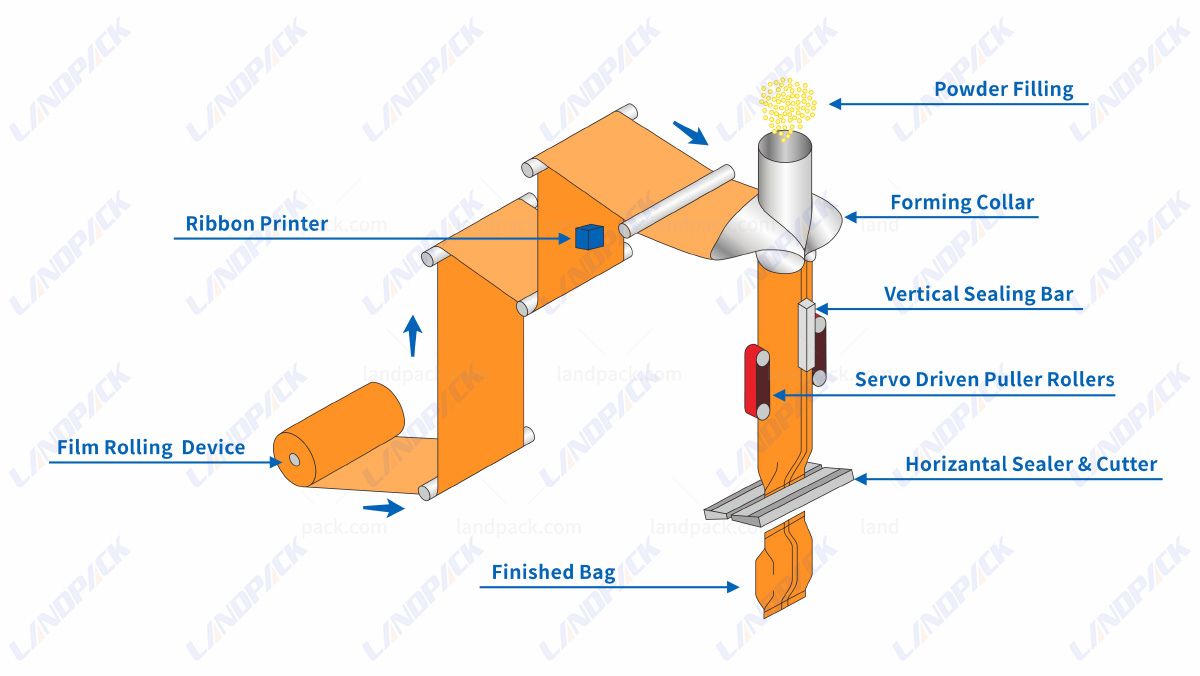

Workflow:

1. Film Rolling Device: The packaging film is automatically unwound from the film roll and guided smoothly into the forming system.

2. Ribbon Printer: Prints production dates, batch numbers, or codes onto the film before the bag is formed.

3. Forming Collar: The flat film is shaped into a tube as it passes through the forming collar.

4. Vertical Sealing Bar: Creates the vertical (back) seal to form the pouch tube.

5. Powder Filling: Powder materials are accurately dispensed into the formed tube through the filling funnel.

6. Servo-Driven Puller Rollers: Pull the film downward steadily to ensure stable bag forming and consistent bag length.

7. Anti-Static Devices: Reduce powder adhesion on the film surface and machine parts.

8. Horizontal Sealer & Cutter: Seals the top and bottom of each bag and cuts them into individual finished pouches.

9. Finished Bag Output: The completed, sealed powder bags are discharged and ready for packing or conveying.

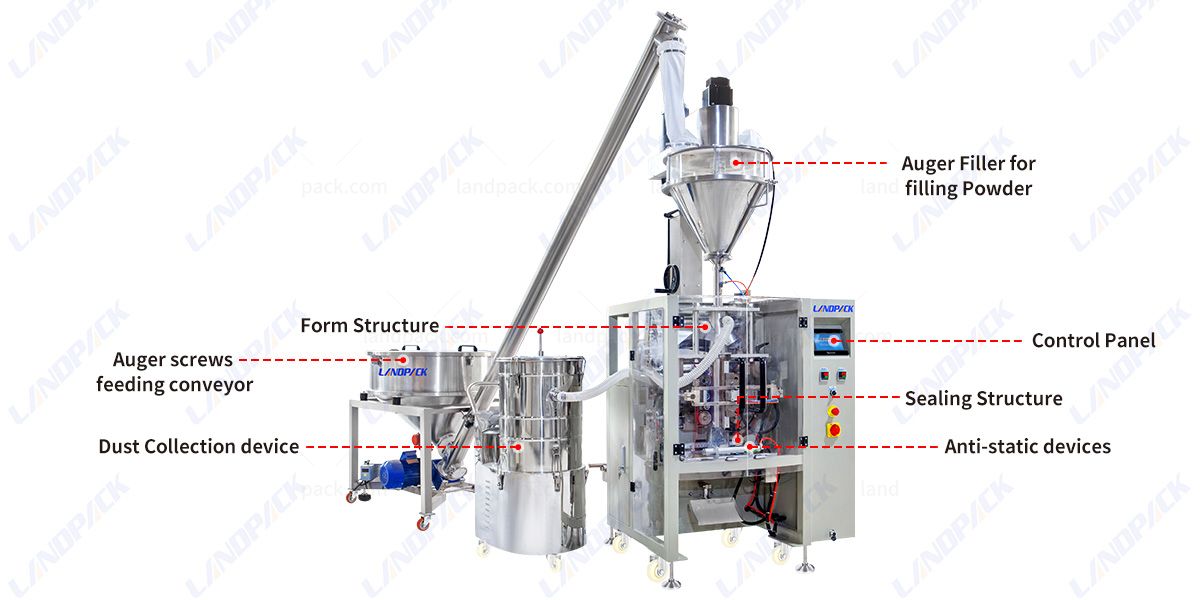

Machine Key Components:

1. Dust Collection Device

2. Auger Screws Feeding Conveyor

3. Form Structure

4. Auger Filler for Filling Powder

5. Control Panel

6. Sealing Structure

7. Anti-static Devices

Feature:

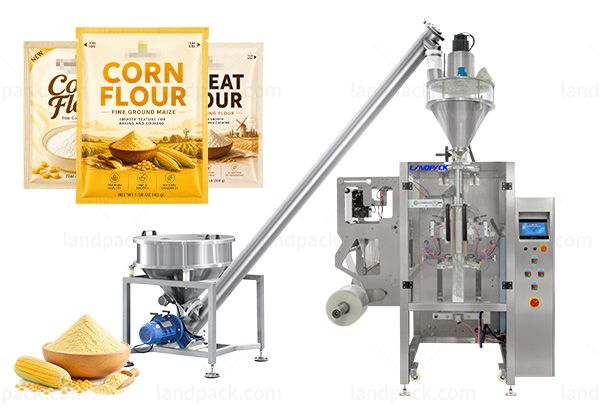

Auger Screw Feeding Conveyor Provides steady, uninterrupted powder delivery to the dosing system. Its design minimizes clogging or material bridging, ensuring smooth operation even when handling fine or slightly cohesive powders.

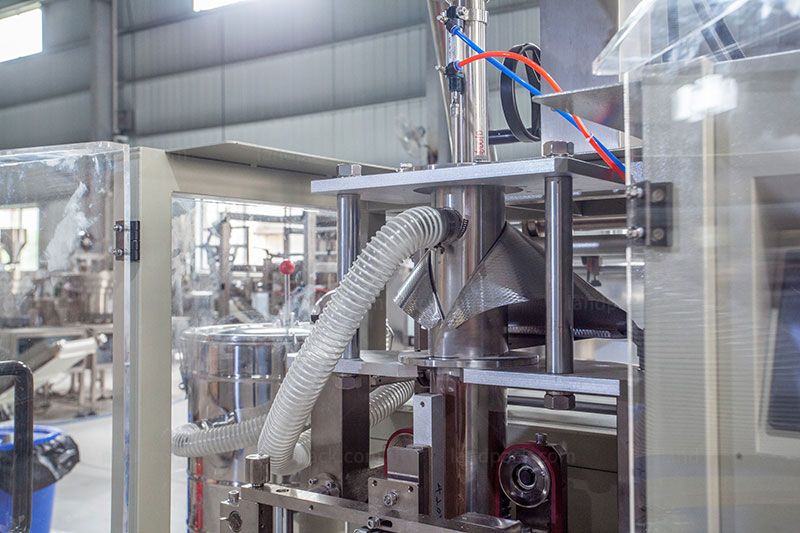

	Dust Extraction System Efficiently removes airborne powder generated during filling, keeping the environment clean and reducing product waste. Enhances worker safety and supports sanitary requirements for food and pharmaceutical production.

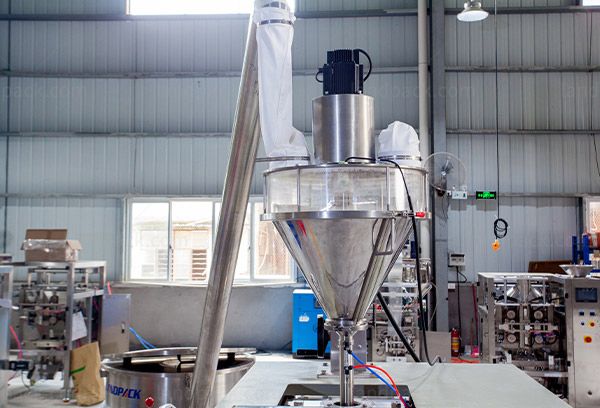

Servo Auger Dosing Unit The servo-controlled auger delivers precise and consistent powder measurements for products such as flour, starch, milk powder, and other fine materials. Quick-change settings allow fast adjustments for different fill weights.

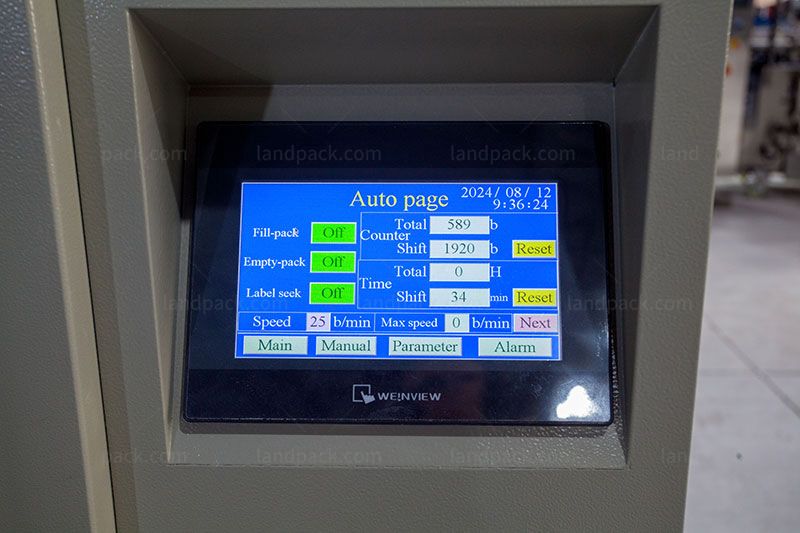

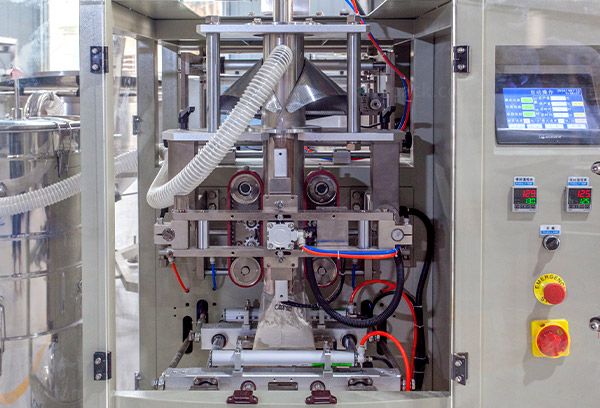

	Control Interface Features an intuitive touch-screen control panel with straightforward settings for speed, pouch length, fill weight, and sealing temperature. Operators can manage all key functions with ease and accuracy.
Bag Forming Assembly Transforms roll film into well-shaped, uniform pouches. The stable forming structure supports various bag sizes and maintains smooth film alignment for high-quality packaging results.

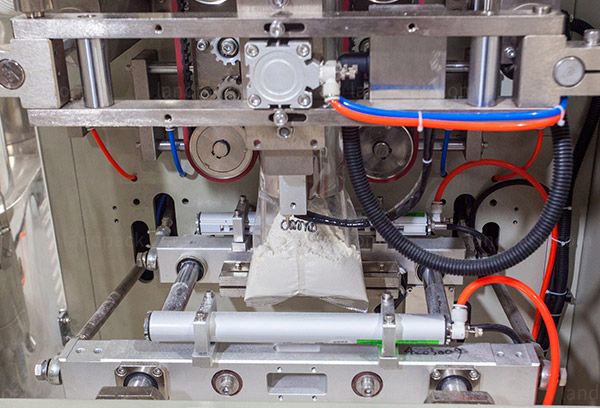

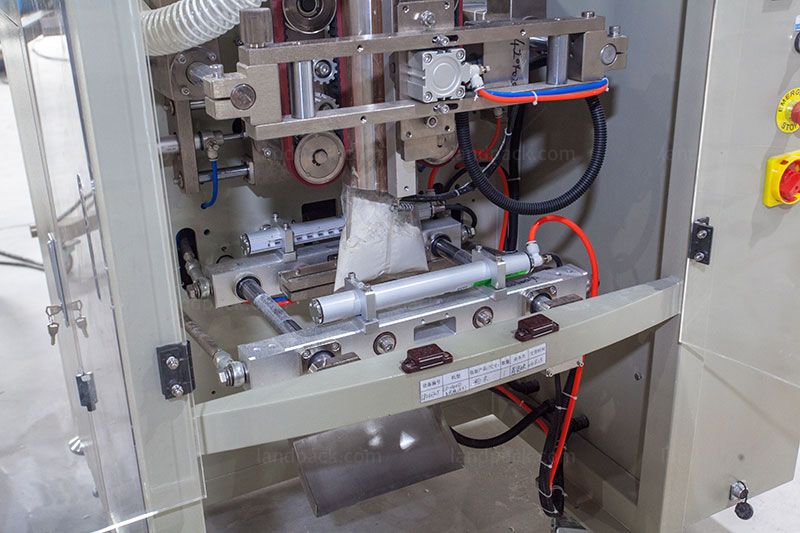

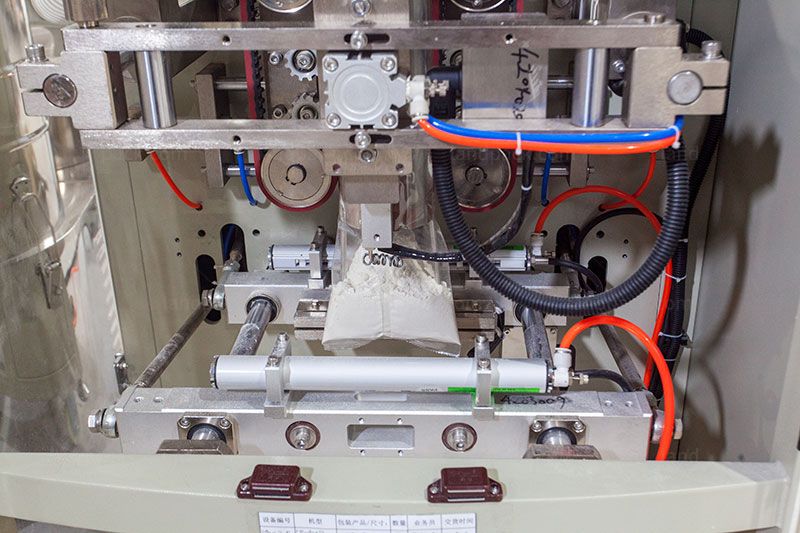

	Sealing Mechanism Equipped with durable vertical and horizontal sealing jaws to create firm, airtight seals. Ensures attractive bag appearance while preserving product quality, freshness, and powder flowability.
Anti-Static Design Minimizes static buildup that causes powder to cling to film surfaces or machine components. Helps maintain clean sealing areas and prevents bag distortion—especially important for ultra-light powders like flour.
