High Speed Granule Packing Machine Vertical Packaging Machine
Model:
High speed granule packing machine for sugar, salt, seeds, and grains. Vertical packaging machine runs up to 150 bags/min.
Application:
This machine is suitable for automatic packaging of nuts, dried fruits, puffed snacks, candies, grains and other small granular food products.
Application:
This granule packing machine packs dry granular products into bags from roll film. It works for sugar, salt, rice, seeds, beans, nuts, tea granules, desiccant, small pellets, and similar products. It runs up to 150 bags/min for daily production.
Package Type:
This machine forms bags from roll film and supports pillow bags, back seal bags, gusset bags, three-side seal bags, and small sachets. Bag size can change by film width, forming parts, and cutting length. It works with laminated films such as PET/PE, OPP/CPP, and aluminum foil film for different granule packaging needs.
Workflow:

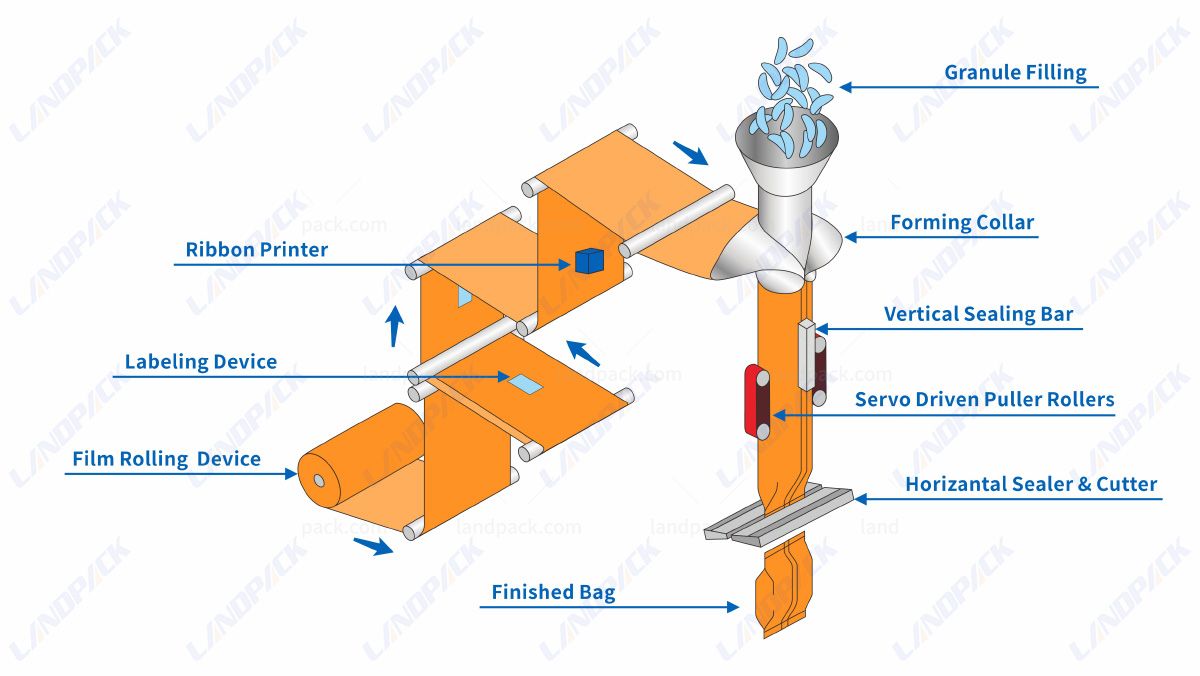

Z-Type Feeding → 24-Head Weighing → Bag Forming & Sealing → Date Printing → Horizontal & Vertical Sealing → Finished Bag Conveying → Rotary Table Collection
| Model | LDH-320 | LDH-420 | LDH-510/520 |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 60-200mm | 60-300mm | 60-400mm |
| Bag Width | 60-150mm | 65-200mm | 65-250mm |
| Film Roll Diameter | Max. 320mm | Max. 320mm | Max. 320mm |
| Pakaging Rate | 80-120 bags/min | 80-120 bags/min | 80-150 bags/min |
| Film Width | Max.320mm | Max.520mm | Max.520mm |
| Making bag volume | 5-200ml | 1000ml | 2000ml |
| Measuring range | 300ml | 1000ml | 2000ml |
| Machine weight | About 350kg | About 580kg | About 780kg |
| Power Supply | 220V, 50/60HZ, 2.5KW | 220V, 50/60HZ, 3.5KW | 220V, 50/60HZ, 7KW |
| Machine Size | 900*1050*1500 mm(L*W*H) | 1020*1260*1550 mm(L*W*H) | 1488*1080*1490 mm(L*W*H) |

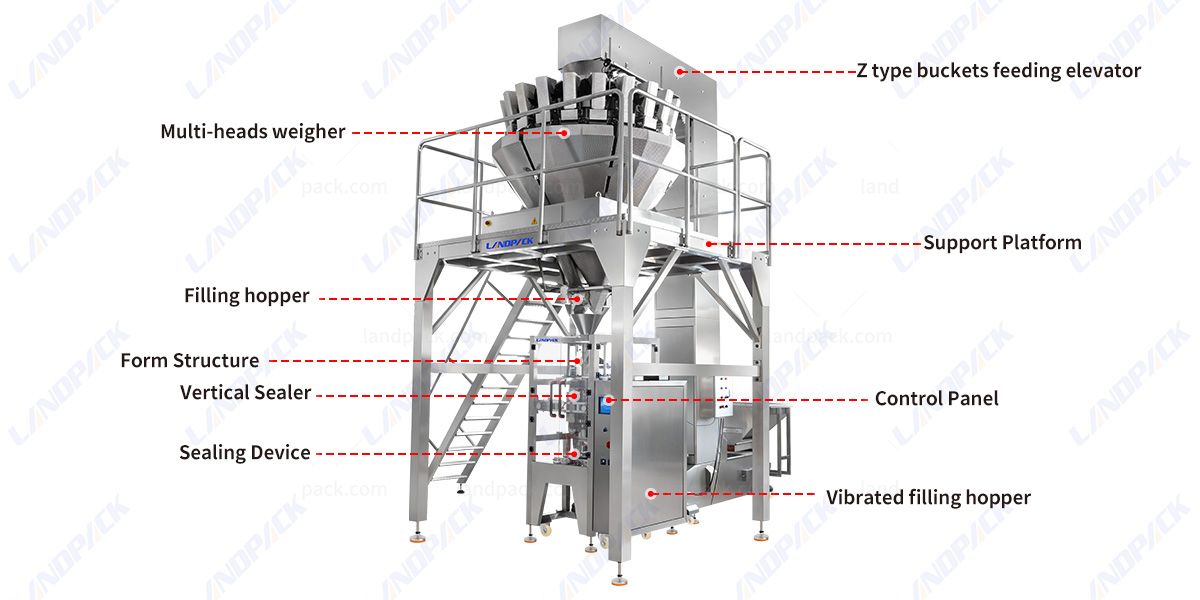

Machine Key Components:
Feature:
1. Full-automatic weigh-form-fill-seal type, efficient and simple to use.
2. Use famous brand electric and penumatic components,stable and long life circle.
3. Use superior mechanical components, reduce the wear outless.
4. Easy to install film, auto correcting the excursion of the film.
5. Apply advanced operating system ,easy to use and reprogramable.

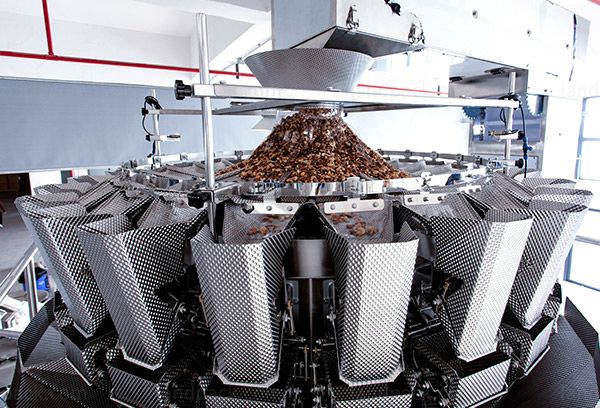

6. 24 Head 1.6Liters Scale Weigher with Vibration with Dimple Plate filling design make filling nuts raisisn easier
7. With Vibration rotary feeding for the sitcky products
8. Full Set Staineless Steel Main Frame Easy to Clean
9. With Automatic roller ink printed on the roll film suitable different label size
10. With 5 Servo Motor control make the speed and sealing more higher and presicion.
