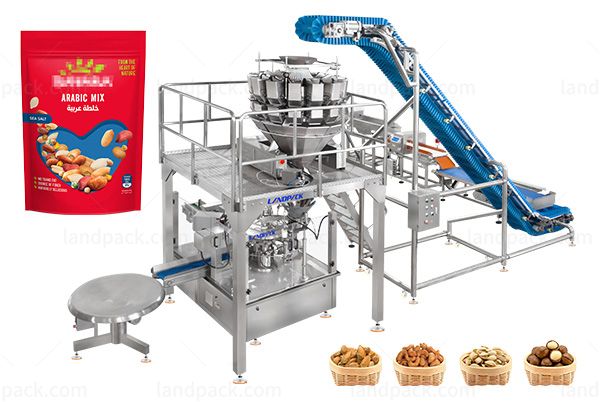

Automatic Rotary Stand Up Pouch Doypack Granule Packing Machine
Model:
The line includes a 14-head dimple combination weigher, metal detector, easy-clean belt elevator, vibrating hopper, screening system and manual inspection conveyor.
Application:
This granule packing machine is suitable for various granule products such as peanuts, almonds, pistachios, beans, seeds, dried fruits, mixed nuts, roasted snacks, coated peanuts, granola, soybeans, grains, pulses, and dry bulk products.
Application:
This granule packing machine is suitable for various granule products such as peanuts, almonds, pistachios, beans, seeds, dried fruits, mixed nuts, roasted snacks, coated peanuts, granola, soybeans, grains, pulses, and dry bulk products.
Package Type:
The granule packing machine supports stand-up pouches, zipper pouches, spout pouches, gusset bags, quad seal bags, and doypack pouches.
Workflow:

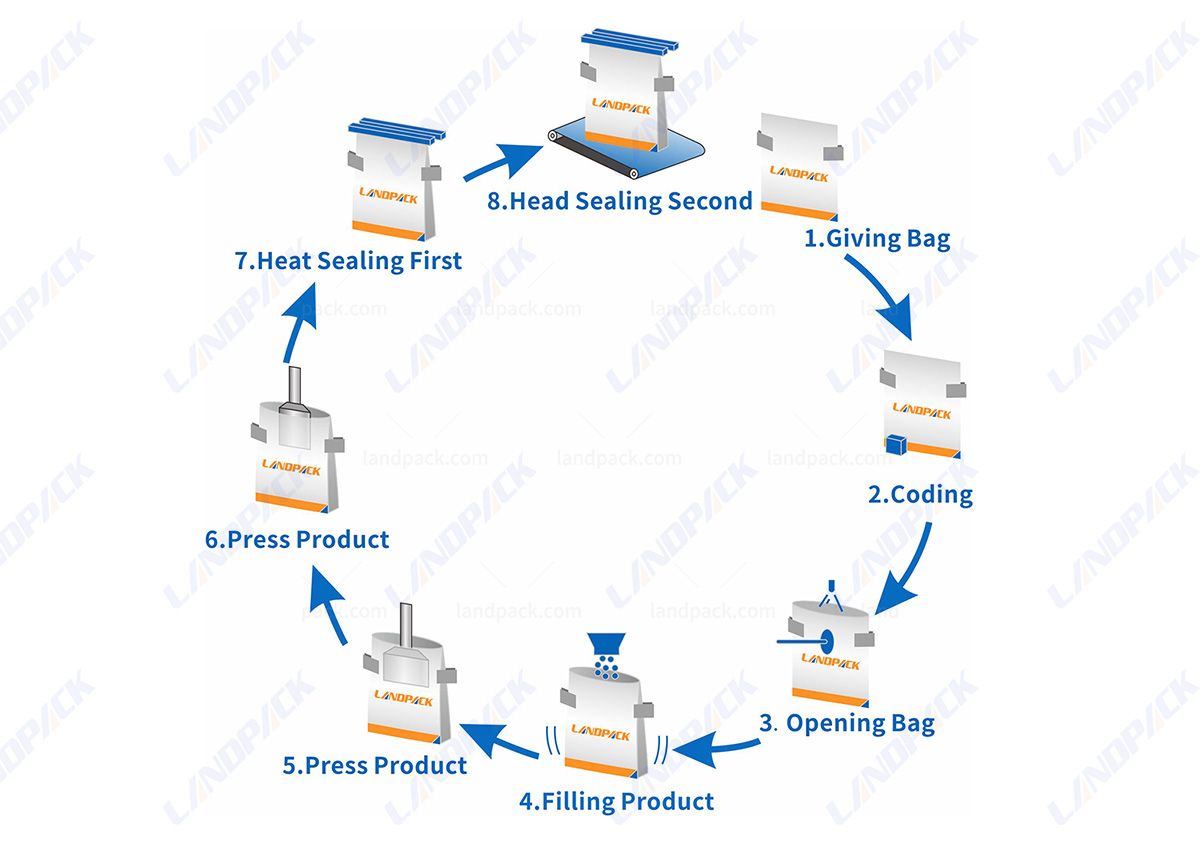

Material feeding → Vibrating screening → Manual inspection → Multihead weighing → Pouch feeding → Pouch opening → Filling → Heat sealing → Metal detection → Finished pouch output
| Type | LD-8230 | LD-8260 | LD-8300 | LD-8400 |
| Bag Type | 3-side, 4 side sealing bag, doypack, box pouch, zipper pouch, stand up pouch, side gusset bag, etc. | |||
| Bag Size | 150-380mm*80-230mm (L*W) | 150-380mm/140-260mm (L*W) | 150-430mm/180-300mm (L*W) | 200-500mm/270-400mm (L*W) |
| Filling Range | 10g-1000g | 1500g | 2000g | 3000g |
| Packing Speed | 20-60 bags/min | 20-50 bags/min | 10-40 bags/min | 10-25 bags/min |
| Voltage | Standard AC380V+10%, three-phase 50HZ; | |||
| Total Power | 3.75KW | 3.75KW | 3.85KW | 4.5KW |
| Air Consumption | 0.4m³/min | |||

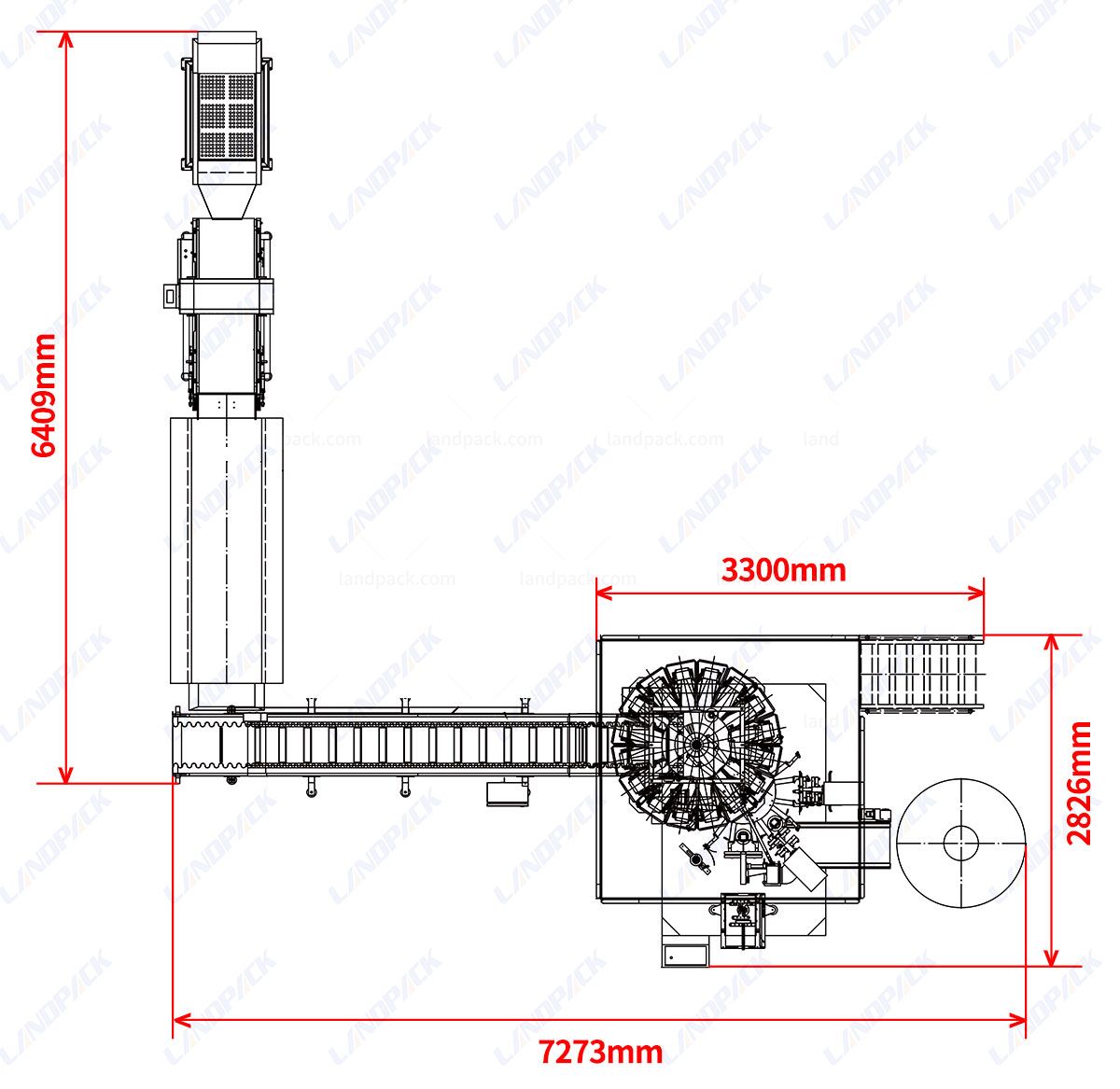

| Dimensions | 1740*1380*1450mm(L*W*H) | 2460*1830*1460mm(L*W*H) | 2260*2200*1520mm(L*W*H) | |
| Machine Weight | 1300KG | 1300KG | 1700KG | 2000KG |

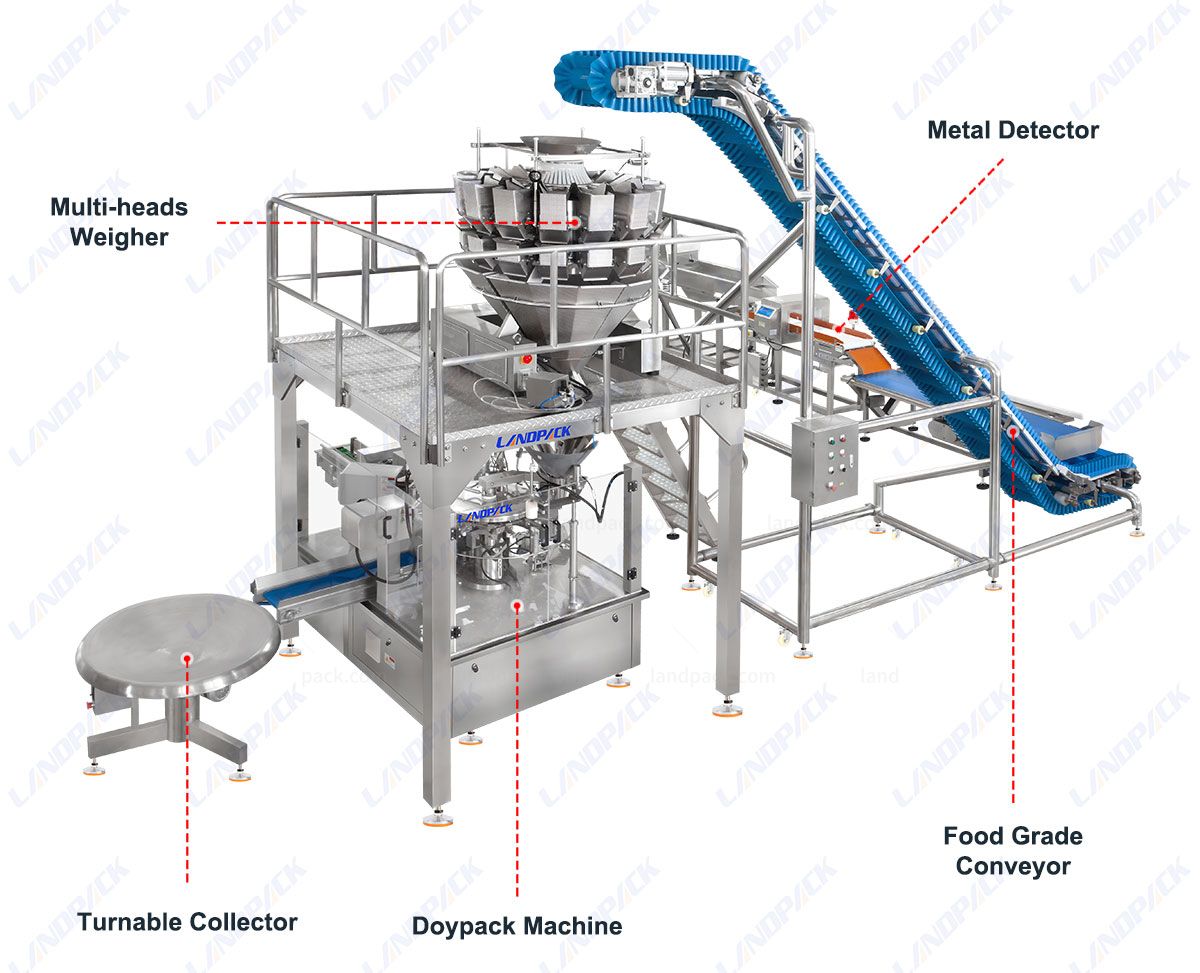

Machine Key Components:
1. Metal Detector 2. Multi-heads Weigher 3. Food Grade Conveyor 4. Turnable Collector 5. Doypack Machine
Feature:

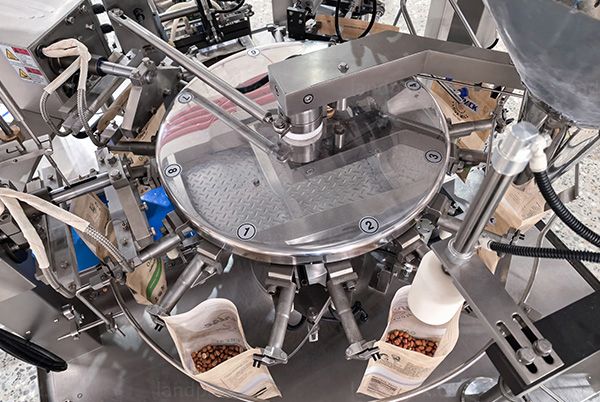

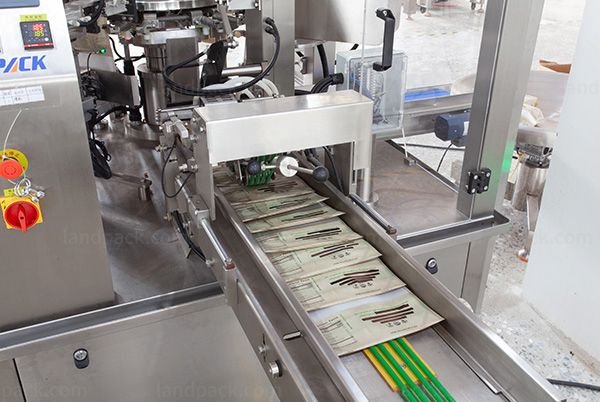

1. Custom rotary pouch design with one-button bag width adjustment for different pouch sizes.
2. SS304 brushed stainless steel frame is durable, safe and easy to clean.
3. Servo zipper opening system makes pouch opening smoother and easier to adjust.
4. Poking and bag mouth cleaning functions ensure full filling and better sealing.
5. Vibrating screen removes small impurities and separates sticky materials.
6. Manual inspection conveyor helps remove unqualified materials before packing.

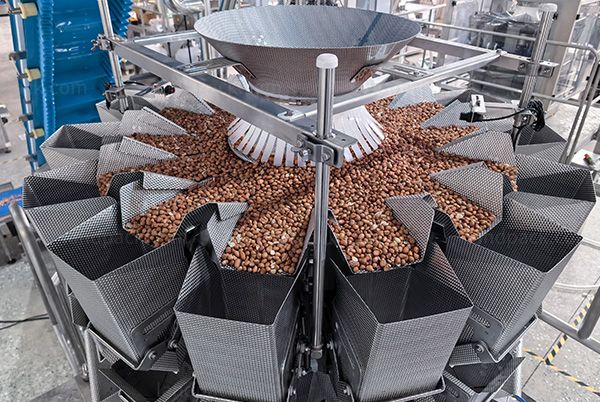

7. Dimple-pattern multihead weigher improves weighing accuracy and reduces sticking.
8. Safety door and alarm system ensure stable and safe machine operation.
