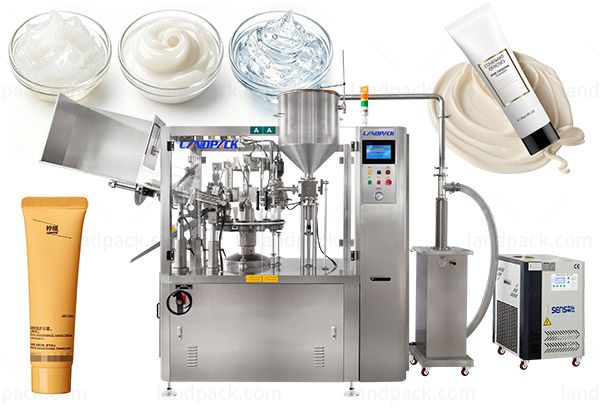

High-Speed Plastic Tube Filling and Sealing Machine with Chiller Wall Putty Paint Tube Filling Machine
Model: XL-80F(L)
Plastic tube filling and sealing machine for wall putty, paint and thick paste, with piston filling, hot-air sealing, date stamping and tail trimming, up to 80 tubes/min.
Application:
Suitable for wall repair paste, paint, cream, lotion, toothpaste, ointment, adhesive and other liquid or viscous products.
Application:
This plastic tube filling and sealing machine handles acrylic paint, grease, adhesive, wall putty, pigment paste, sealant, repair paste and other viscous products. Its piston filling system processes thick materials, while the rotary unit automatically performs tube loading, positioning, filling, sealing, coding, trimming and discharge. Depending on the tube dimensions, fill volume and product viscosity, the machine can reach speeds of up to 80 tubes per minute.
Package Type:
The machine handles plastic tubes and laminated plastic tubes in different diameters, lengths, and filling volumes. It supports printed tubes with color marks, hot-air tail sealing, embossed date codes, and trimmed straight tube ends. Matching tube holders and filling nozzles allow format changes for different tube sizes.

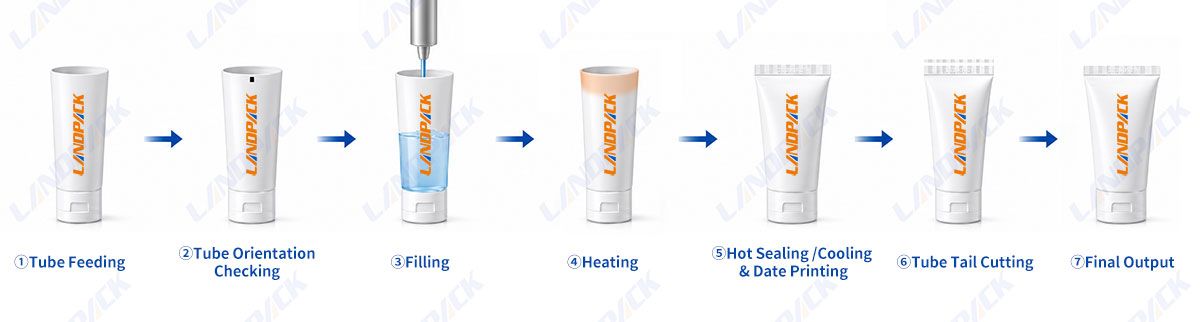

Workflow:
1. Automatic Tube Feeding, 2. Tube Fixing, 3. Color Mark Positioning, 4. Dust Removal and Inspection, 5. Piston Filling, 6. Hot-Air Heating, 7. Water Cooling, 8. Tail Sealing and Date Stamping, 9. Tail Trimming, 10. Waste Collection, 11. Tube Discharge
| Parameter / Model | XL-80L | XL-80F |
| Tube Material | Metal tube, Aluminum tube | Plastic tube, Composite tube |
| Tube Diameter | Φ10 - Φ42 mm | Φ10 - Φ60 mm |
| Tube Length | 45 - 250 mm (Customizable) | 45 - 250 mm (Customizable) |
| Filling Capacity | 5 - 500 ml/tube (Adjustable) | 5 - 500 ml/tube (Adjustable) |
| Filling Accuracy | ≤ ±0.5% | ≤ ±0.5% |
| Speed (r/min) | 3 - 10 | 2.5 - 7 |
| Production Capacity | 60 - 80 tubes/min | 60 - 80 tubes/min |
| Compressed Air | 0.55 - 0.65 MPa | 0.55 - 0.65 MPa |
| Motor Power | 2 kW (380V / 220V 50Hz) | 2 kW (380V / 220V 50Hz) |
| Heat Sealing Power | 3.3 kW | 3.3 kW |
| Overall Dimensions (mm) | 2500×1200×2400 | 2500×1200×2400 |
| Main Unit Weight | Approx. 1500 kg | Approx. 1500 kg |

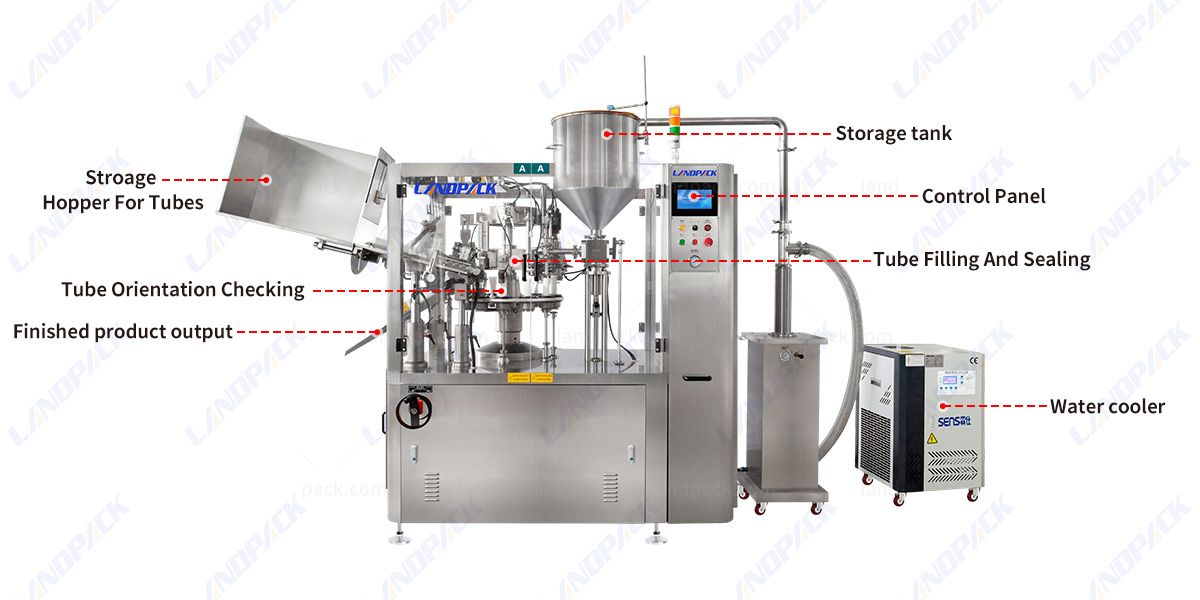

Machine Key Components:
Feature:

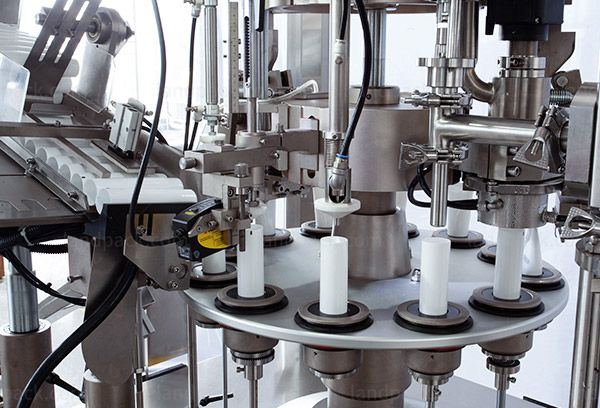

1. Automatic hopper feeds tubes into the rotary holders.
2. Tube-positioning unit aligns printed artwork through the color mark sensor.
3. Anti-reverse inspection detects incorrectly loaded tubes.
4. Dust collection removes particles before filling starts.

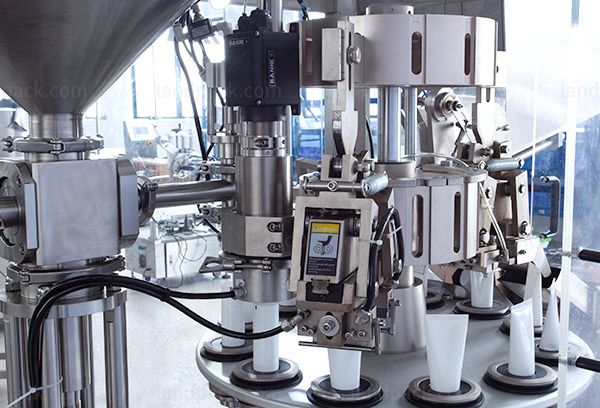

5. Piston pump handles wall putty, paint, paste, and other viscous products.
6. SS316 product-contact parts suit chemical and paste filling.
7. Hot-air unit heats the tube wall evenly before sealing.
8. Water chiller cools the sealed tail after heating.
9. Date-stamping unit adds batch or production information to the tube end.

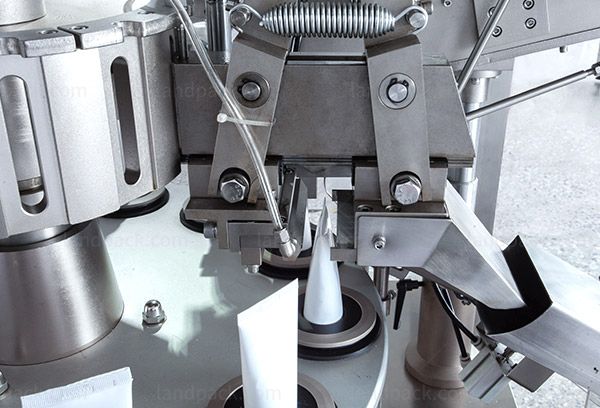

10. Tail trimmer produces a straight and even finished edge.
11. Replaceable tube holders support different tube diameters.
12. Control panel adjusts filling volume, speed, heating time, and sealing settings.
