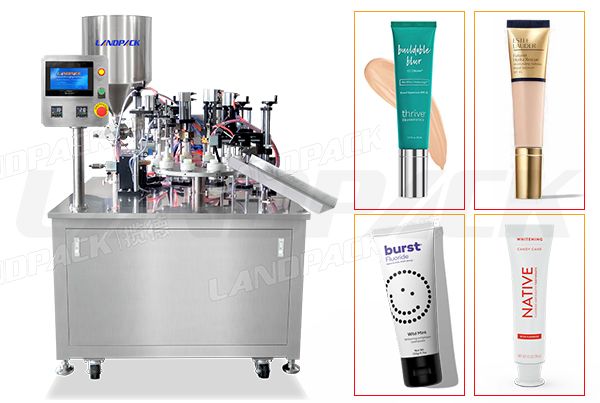

semi automatic tube filling and sealing machine with low price
Model: LFF-GFW-08
Application:
it is suitable to be for medicine cream,toothpaste,cosmetics,glue,adhesive,ketchup and art palette industry especially.
Description:
It can be automatic tube filling, sealing, cutting and print date.the unique one-headed design is easier to clean.More convenient to the size changing and more simply to control.
Application:
it is suitable to be for medicine cream,toothpaste,cosmetics,glue,adhesive,ketchup and art palette industry especially, and other liquid or paste-like materials filling And the sealing.
Filling container: Plastic tube; Composite tube
Optional Supporting Devices: three-dimensional packaging machine, cartoning machine, sealing machine, heat shrinkable machine, etc
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing samples:
| SPECIFICATIONS | |
| Tube filling volume | 20-200ML/30-250ML |
| Filling capacity | 20-40bottle per minute |
| Tube length | 40-200mm |
| Tube Diameter | 8-50mm |
| Filling Precision | 99.5% |
| Motor | 2KW |
| Hot air Gun | 3KW |
| Air work pressure | 0.5-0.6MPA |
| air compressore | 0.6m³/min |
1.Tube orientation checking
2.Tube Automatic Filling with Anti-drop
3.Tube Sealing & Code embossed
4.Tube Cutting more than million times
5.MITSUBISHI PLC & HMI CONTROL system
6.AUTOMATIC PRODUCT FEEDING SYSTEM WITH LEVEL CONTROL.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
