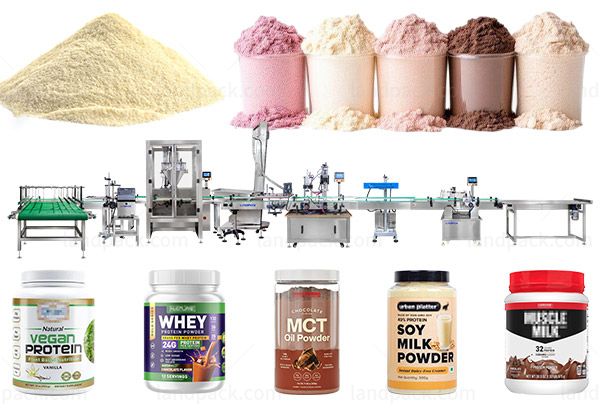

Powder Filling Machine Automatic Powder Bottle Filling Capping and Labeling Line

Application:

This machine is suitable for protein powder, milk powder, nutrition powder and other dry powder products packed in plastic bottles, jars or metal cans. Such as whey protein powder, plant-based protein powder, meal replacement powder, milk powder, soy milk powder, coconut powder, coffee powder, cocoa powder, milk tea powder, cereal powder, flour powder, baking powder, seasoning powder, spice powder, cleaning powder and cosmetic powder.

Package Type:

Suitable for round plastic bottles, wide-mouth jars and metal cans with screw caps, foil sealing liners or optional can-seaming configurations.

Workflow:

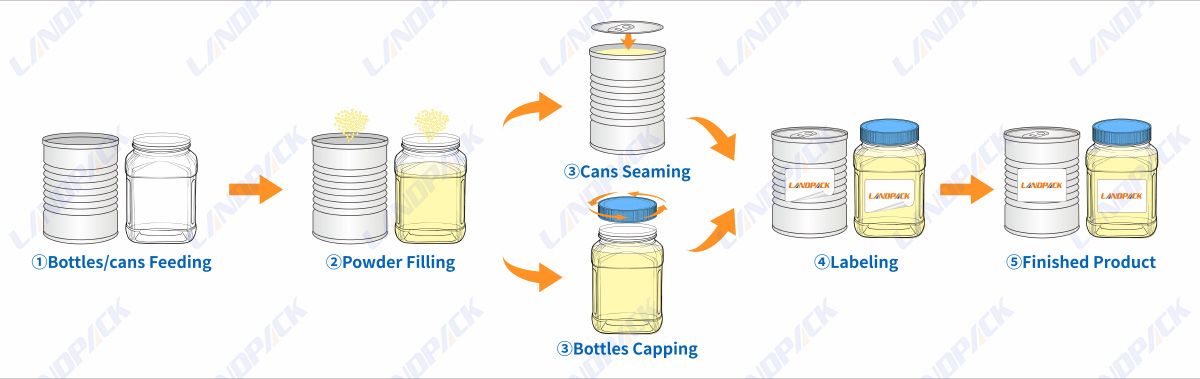

Empty Bottle Feeding → Inkjet Coding → Auger Powder Filling → Automatic Cap Feeding → Servo Capping → Aluminum Foil Sealing → Round Bottle Labeling → Finished Product Collection

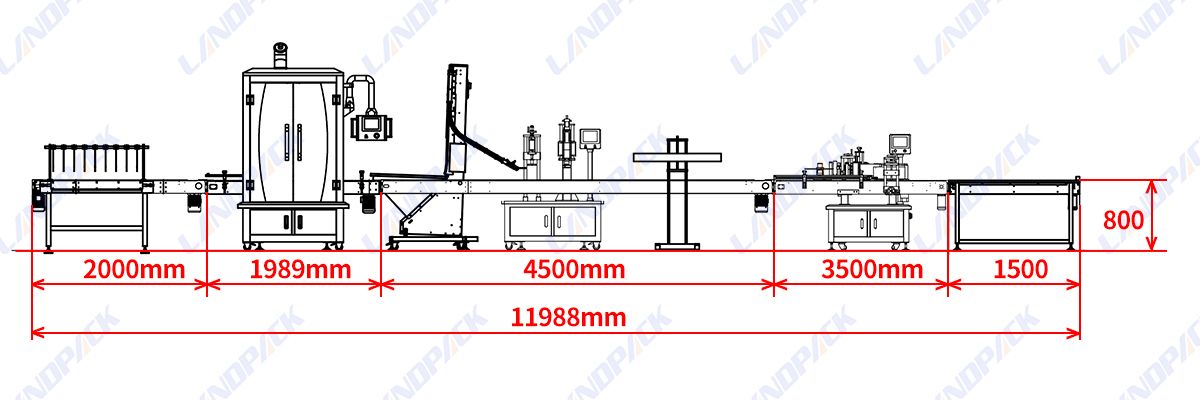

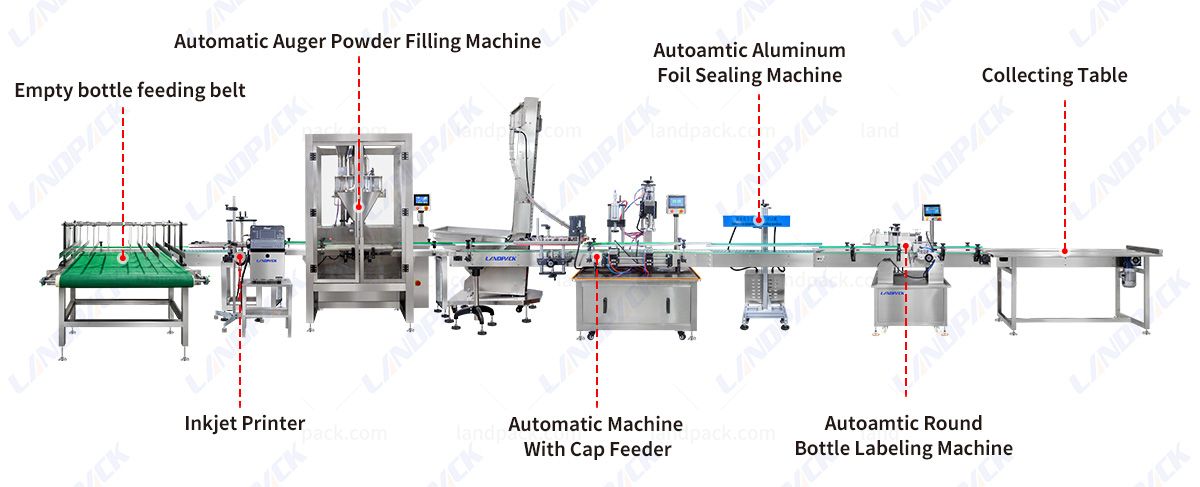

Machine Key Components:

1. Empty Bottle Feeding Belt  2. Automatic Auger Powder Filling Machine  3. Automatic Aluminum Foil Sealing Machine  4. Collecting Talbe

Feature:

1. The bottle feeding belt arranges empty containers and transfers them continuously into the filling line.

2. The inkjet printer can print production dates, batch numbers or simple coding information on the containers.

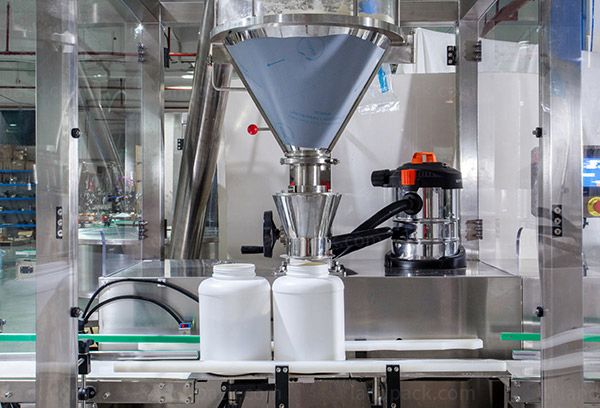

3. The single-head auger filling machine supports controlled dosing for protein powder, milk powder and other fine powder products.

4. The automatic cap feeder delivers caps to the capping station to reduce manual handling during continuous production.

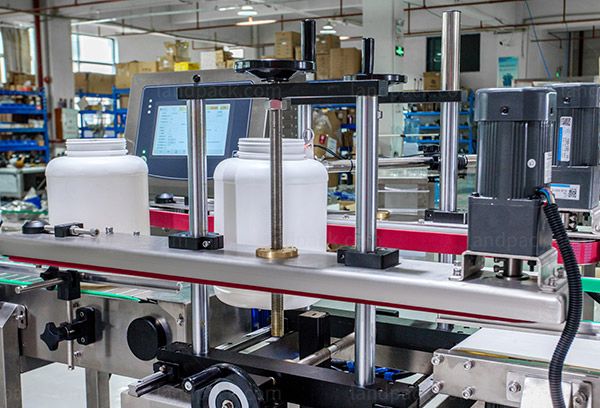

5. The servo capping machine tightens screw caps with adjustable operating parameters for different bottle specifications.

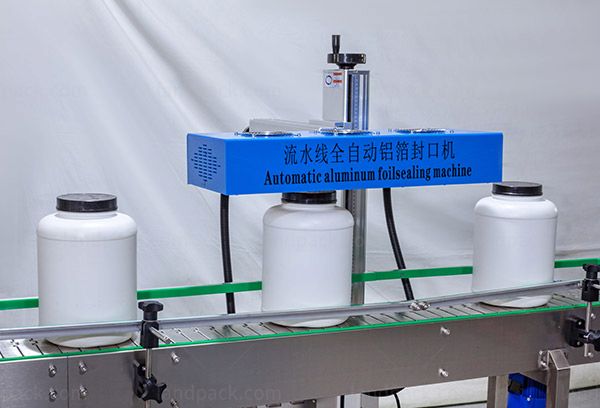

6. The aluminum foil sealing machine seals the bottle opening after capping to support retail packaging and product protection.

7. The round bottle labeling machine applies labels automatically to cylindrical bottles or jars.

8. The collecting table gathers finished containers after labeling for inspection, packing or connection with downstream equipment.

9. A can-seaming unit can be configured when the product is packed in metal cans instead of screw-cap bottles.
