Chemical Filling Machine Liquid Bottle Filling Capping Labeling Shrink Wrapping Line
Model: Liquid Bottle Filling Line
The line uses a 2000 L corrosion-resistant plastic mixing tank and a self-priming pump to prepare and transfer the product to the filling section.
Application:
This machine is suitable for disinfectant solution, medical alcohol, floor cleaner and other free-flowing or slightly viscous liquids packed in plastic bottles, jerry cans and handled containers.
Application:
It can be used in medical sanitation, household cleaning, daily chemical and automotive-care production lines where automatic liquid filling, capping, coding, labeling and shrink bundle packaging are required. Such as surface sanitizer, sterilizing liquid, liquid hand sanitizer, glass cleaner, bathroom cleaner, multipurpose cleaner, laundry detergent, fabric softener, windshield washer fluid, degreasing liquid, equipment cleaning solution and car cleaning liquid.
Package Type:
Suitable for plastic bottles, jerry cans and handled containers with screw caps, pressure-sensitive labels and grouped shrink-film packaging.
Workflow:

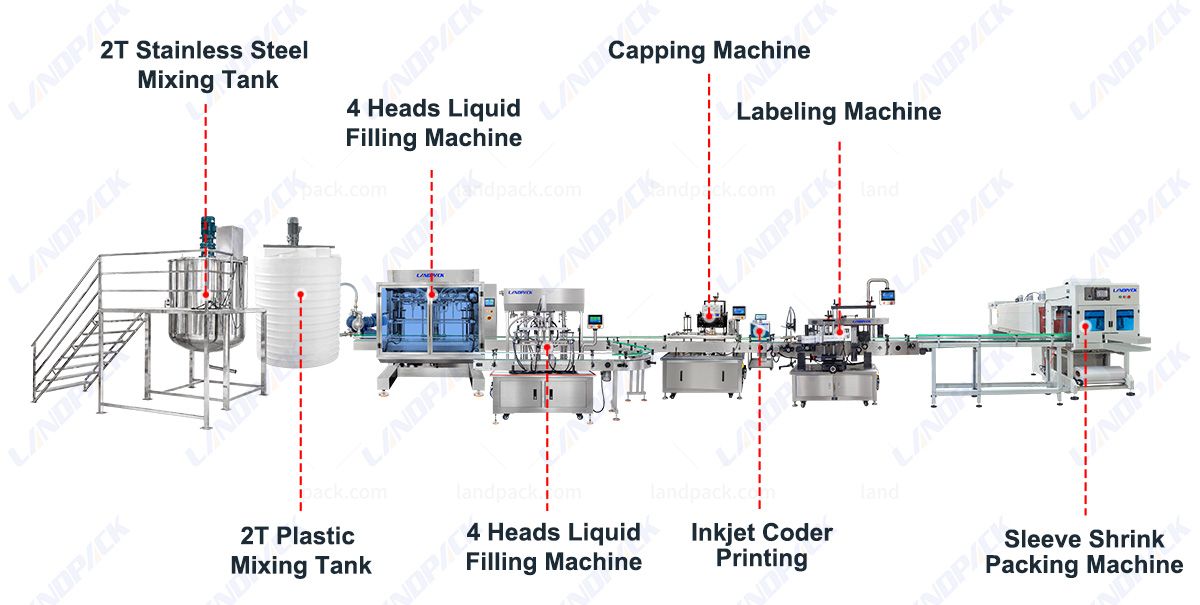

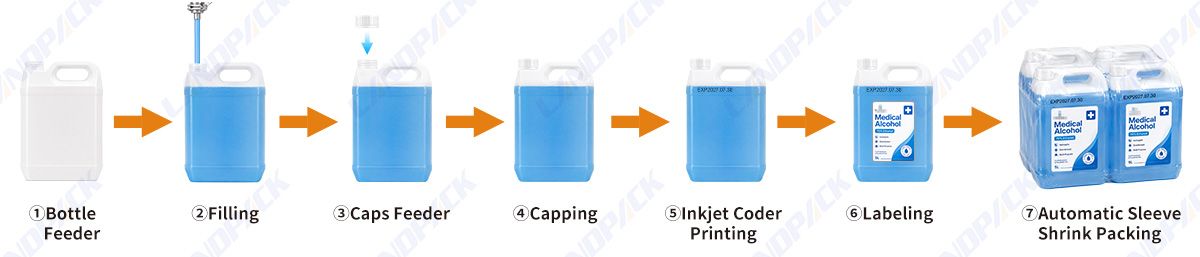

Liquid Mixing → Self-Priming Pump Feeding → Bottle Feeding → Six-Head Liquid Filling → Cap Feeding → Four-Wheel Capping → Inkjet Coding → Double-Side Labeling → Bottle Grouping → Sleeve Film Wrapping and Sealing → Heat Shrinking → Finished Pack Output
| Mixing and heating tank 2000L | ||||
| Material | SS 304 | |||
| Heating type | electric heating | |||
| Tank diameter | 1500mm | |||
| Tank capacity | 2000L | |||
| Bottle Liquid filling machine | ||||
| Model | LFZ-04 | LFZ-06 | LFZ-08 | LFZ-10 |
| Filling Range | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) |
| Production Speed | <15-25 bottles/min | <20-35 bottles/min | <30-40 bottles/min | <40-50 bottles/min |
| Measurement Accuracy | ±1% | ±1% | ±1% | ±1% |
| Power | 2KW | 2.5KW | 3.5KW | 5KW |
| Voltage | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz |
| Air consumption | 0.6-8Mpa | 0.6-8Mpa | 0.6-8Mpa | 0.6-8Mpa |
| Weight | 600kg | 650kg | 800kg | 800kg |
| Dimension | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) |
| Automatic capping machine | ||||
| Model | LFX-JX-01(Four wheel capping) | LFX-GS-150(Eight wheel capping) | LFX-GS-250(Six wheel capping) | |
| Capacity | 20-50Bottles/min | 40-100Bottles/min | 30-80Bottles/min | |
| Bottle cap diameter | Φ22mm-Φ80mm（Could be customized） | Φ18mm-Φ80mm（Could be customized） | Φ18mm-Φ80mm（Could be customized） | |
| Bottle diameter | Φ35mm-Φ140mm（Could be customized） | Φ35mm-Φ140mm（Could be customized） | Φ35mm-Φ140mm（Could be customized） | |
| Bottle sealing height | 38mm-300mm（Could be customized） | 38mm-300mm（Could be customized） | 38mm-300mm（Could be customized） | |
| Power | 1.5KW | 2KW | 1.5KW | |
| Voltage | 220V、50HZ | 220V、50HZ | 220V、50HZ | |
| Air pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.5-0.7Mpa | |
| weight | 250kg | 350kg | 300kg | |
| Dimensions | H3000*W800*L1600mm | H3120*W1544*L2122 | H3100*W1244*L2122 | |
| Automatic Labeling Machine | ||||
| Model | LFT-LG-100(Low speed labeling) | LFT-GS-100(High speed labeling) | ||
| Label length | 20mm～300mm | 20mm～300mm | ||
| Label width/height | 20mm～200mm(can be customized) | 20mm～200mm(can be customized) | ||
| Bottle width | 30-150mm(can be customized) | 30-150mm(can be customized) | ||
| Roll Label outer diameter | 300mm | 300mm | ||
| Roll Label inner diameter | 76mm | 76mm | ||
| Accuracy | ±1mm | ±1mm | ||
| Label speed | 40-100pcs/min | 60-120pcs/min | ||
| Conveyor speed | 5～25m/min | 15～20m/min | ||
| Suitable label type | Adhesive sticker label(transparent label needs customization) | Adhesive sticker label(transparent label needs customization) | ||
| Working air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | ||
| Voltage | 220V can be customized 4KW | 220V can be customized 4KW | ||
| Weight | 350KG | 450KG | ||
| Overall dimension | 3000mm×1450mm×1950mm | 3050mm×1550mm×1950mm | ||
| Shrink wrapping machine | ||||
| Voltage | Sleeve machine: 220V; can be customized; shrink machine must be 380V | |||
| Power | 1.3KW/18KW | |||
| Sleeve machine packing size | Max 420*330*330mm min 250*60*60mm | |||
| Packing speed | 0-6 pieces per minute | |||
| Tunnel size | 1500*600*400mm | |||
| Tunnel out dimension | 2500*850*1520 | |||
| Sleeve out dimension | 1500*600*402mm | |||
Machine Key Components:
Feature:
1. The 2000 L plastic mixing tank is suitable for corrosive cleaning and disinfectant liquids.
2. A self-priming pump transfers liquid from the storage tank to the filling section.
3. The no-bottle, no-fill system automatically stops filling when no container is detected.
4. The filling unit supports gravity filling or gear-pump diving filling according to the liquid properties.
5. Diving filling nozzles reduce foaming, splashing, and liquid overflow during operation.
6. Adjustable conveyor guides accommodate round, square, and irregular-shaped bottles.
7. The four-wheel capping machine presses and tightens screw caps in one process.
8. The inkjet printer marks batch numbers, production dates, and expiry information on the bottles.
9. The double-side labeling machine supports round, square, and other bottle formats.

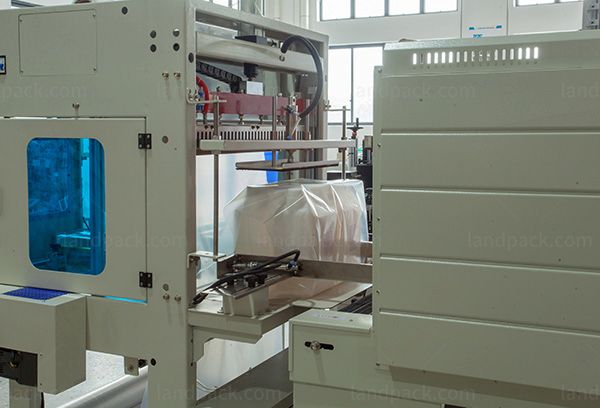

10. The side-entry sleeve wrapper groups bottles before shrink wrapping.
11. The heat shrink tunnel tightly wraps each bottle group with shrink film.
12. PLC control manages filling, conveying, capping, labeling, and shrink-wrapping settings.
13. The modular line can connect with bottle unscramblers, checkweighers, case packers, and palletizing systems.
