Automatic Chemical Filling Machine 8 Heads Liquid Filling Capping Labeling Line
Model: Liquid Filling Line

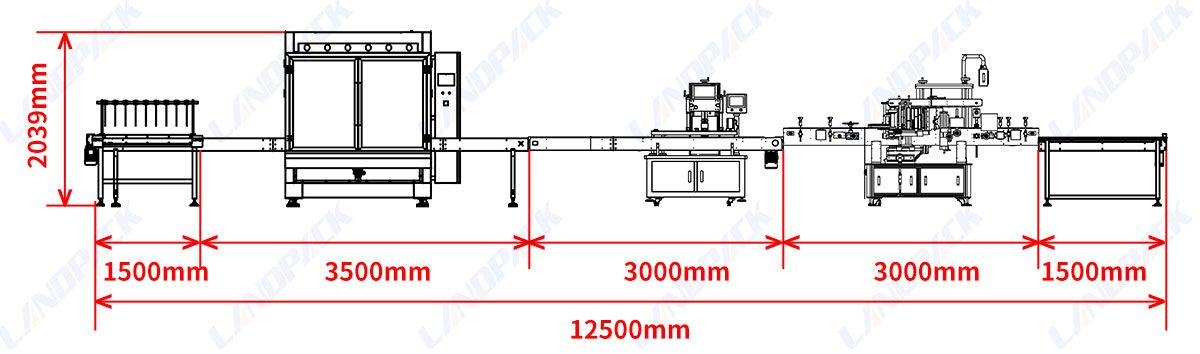

The complete line consists of a belt bottle feeding system, an 8-head gear pump filling machine, an automatic cap feeding unit, a four-wheel capping machine, a double-side labeling machine and a finished bottle collecting platform.
Application:
This automatic detergent bottle filling line is designed for laundry detergent, fabric softener, household cleaner and other low- to medium-viscosity liquid products packed in plastic bottles.
Application:
It can be used in household cleaning, laundry care, personal care, pet care and commercial chemical production lines where automatic bottle feeding, gear pump filling, cap feeding, capping and double-side labeling are required. Such as liquid laundry soap, glass cleaner, fabric softener, hand wash, kitchen degreaser, car wash shampoo, dishwashing liquid, body wash, bathroom cleaner, hair conditioner, multipurpose cleaner, laundry sanitizer, liquid soap, pet conditioner and concentrated detergent.
Package Type:

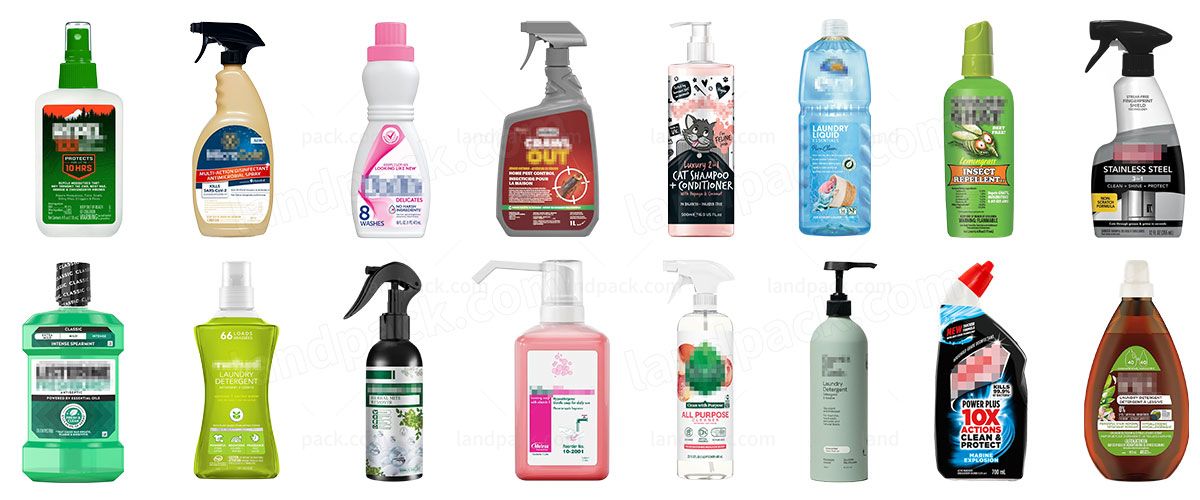

The Automatic Chemical Liquid Filling Machine is suitable for HDPE bottles, PET bottles, plastic bottles, round bottles and square bottles with screw caps and customized bottle designs.
Workflow:

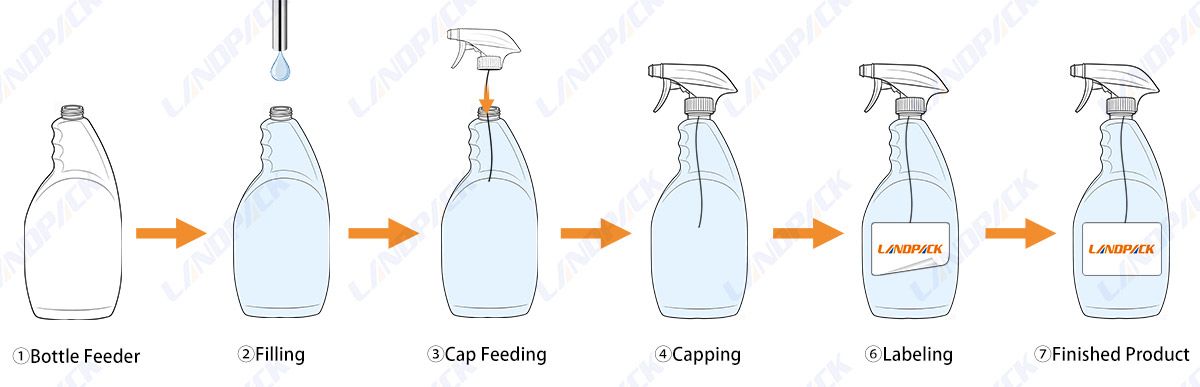

Bottle Conveying → Bottle Positioning → Liquid Filling → Screw Capping → Double-Side Labeling → Finished Product Collection
| Automatic Bottle Feeder | |||
| Machine Model | LD-LP800N | ||
| Power Supply | 220V/110V, 50-60Hz, 200W | ||
| Turntable Diameter | 800mm | ||
| Suitable Bottle Diameter | 40-130mm | ||
| Suitable Bottle Height | 30-200mm | ||
| Working Speed | 40-60 bottles/min(depending on bottle size) | ||
| Package Size | 1230*1010*1260mm | ||
| Gross Weight | 141kg | ||
| Liquid Bottle filling machine | |||
| Model | LFZ-06 | ||
| Filling Range | 50-1000mlt (customizable) | ||
| Production Speed | <15-50 bottles/min | ||
| Measurement Accuracy | ±1% | ||
| Power | 2.5KW | ||
| Voltage | 220V, 50Hz | ||
| Air consumption | 0.6-8Mpa | ||
| Weight | 650kg | ||
| Dimension | L4000*W1320*H2090(mm) | ||
| Automatic capping machine | |||
| Model | LFX-JX-01(Four wheel capping) | LFX-GS-150(Eight wheel capping) | LFX-GS-250(Six wheel capping) |
| Capacity | 20-50Bottles/min | 40-100Bottles/min | 30-80Bottles/min |
| Bottle cap diameter | Φ22mm-Φ80mm（Could be customized） | Φ18mm-Φ80mm（Could be customized） | Φ18mm-Φ80mm（Could be customized） |
| Bottle diameter | Φ35mm-Φ140mm（Could be customized） | ||
| Bottle sealing height | 38mm-300mm（Could be customized） | ||
| Power | 1.5KW | 2KW | 1.5KW |
| Voltage | 220V、50HZ | ||
| Air pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.5-0.7Mpa |
| Weight | 250kg | 350kg | 300kg |
| Dimensions | H3000*W800*L1600mm | H3120*W1544*L2122 | H3100*W1244*L2122 |
| Double-sided labeling machine | |||
| Model | LFT-SM-00 | ||
| Labeling speed | 10-40 bottles/min | ||
| Labeling Accuracy | ±1mm (Does not contain product and label errors) | ||
| Max Label width | 200mm | ||
| Applicable Product Size | H≤400mm, T≤100mm (Can be customized) | ||
| Applicable inner diameter of paper | Φ76.2 mm | ||
| Applicable outer diameter of paper | Max.Φ350mm | ||
| Air Source | 4-6KG, 30L/min | ||
| Dimension | 3050*1450*1800mm | ||
| Voltage | 220V, 50Hz, 3500W | ||
| Weight | 500KG | ||
Machine Key Components:
Feature:
1. Adjustable bottle feeder supports both round and square bottles with flexible size adjustment.

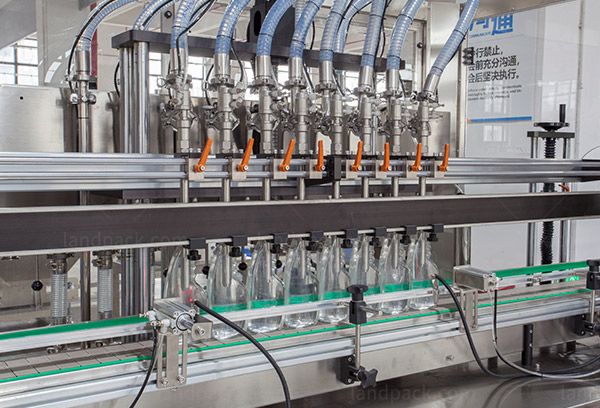

2. Servo-controlled gear pump filling system ensures high metering accuracy and stable filling performance.
3. Linear filling structure adapts to different bottle sizes without changing molds, only simple adjustments are required.

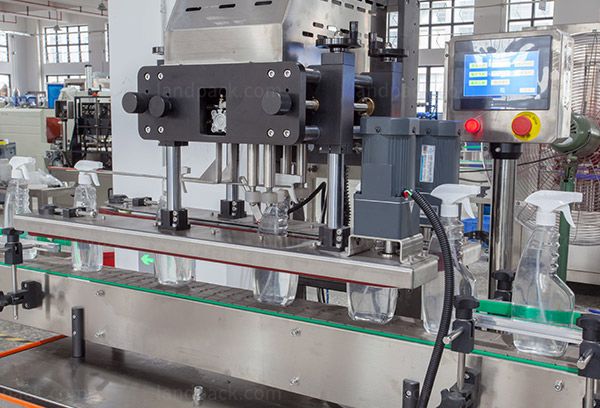

4. Four-wheel capping system supports various screw cap sizes through quick adjustment.
5. Customized U-shaped conveyor design improves bottle transfer efficiency and meets different layout requirements.

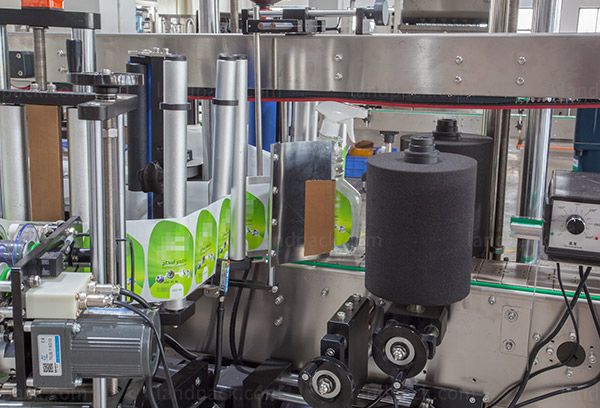

6. Double-side labeling machine supports one-side, two-side and round bottle labeling with high flexibility.
7. Bottle sensor detection enables no bottle no filling, no capping and no labeling function.
8. PLC touchscreen control provides simple operation, stable running and convenient parameter adjustment.
