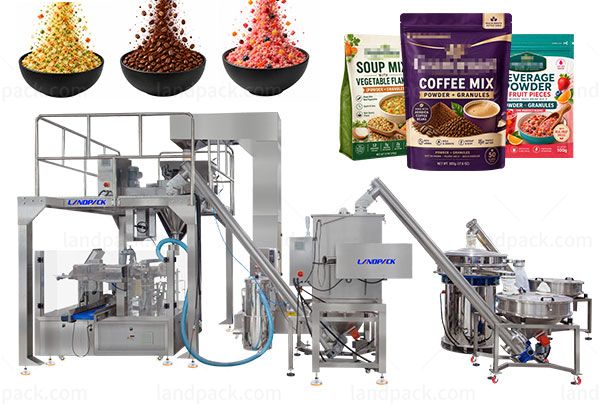

Coffee Packaging Machine Rotary Premade Pouch Packing Machine for Powder and Granule Mixing
Model: LD-8230D
Automatic powder and granule premade pouch packing machine with ribbon mixing, auger dosing and linear weighing for chocolate, baking and dry food mixes.
Application:
This machine is suitable for chocolate baking mix, baking powder blends and other powder-and-granule mixed products packed in premade pouches.
Application:
It can be used in baking food, confectionery, nutrition, beverage, seasoning and convenience food production lines where automatic mixing, powder dosing, granule weighing, pouch filling and sealing are required. Such as chocolate baking mix, brownie mix with chocolate chips, soup powder with dried vegetables, protein powder with nuts, cocoa drink powder with cereal pieces, cookie mix, seasoning powder with sesame seeds, meal replacement powder with grains, muffin mix with nuts, bread mix with seeds, milk powder with cereal crisps, instant soup mix, pancake mix with chocolate chips, spice powder with chili flakes, nutrition powder with seeds and beverage powder with dried fruit pieces.
Package Type:
Suitable for premade stand-up pouches, flat pouches and zipper pouches for powder, granule and mixed dry food products.
Workflow:

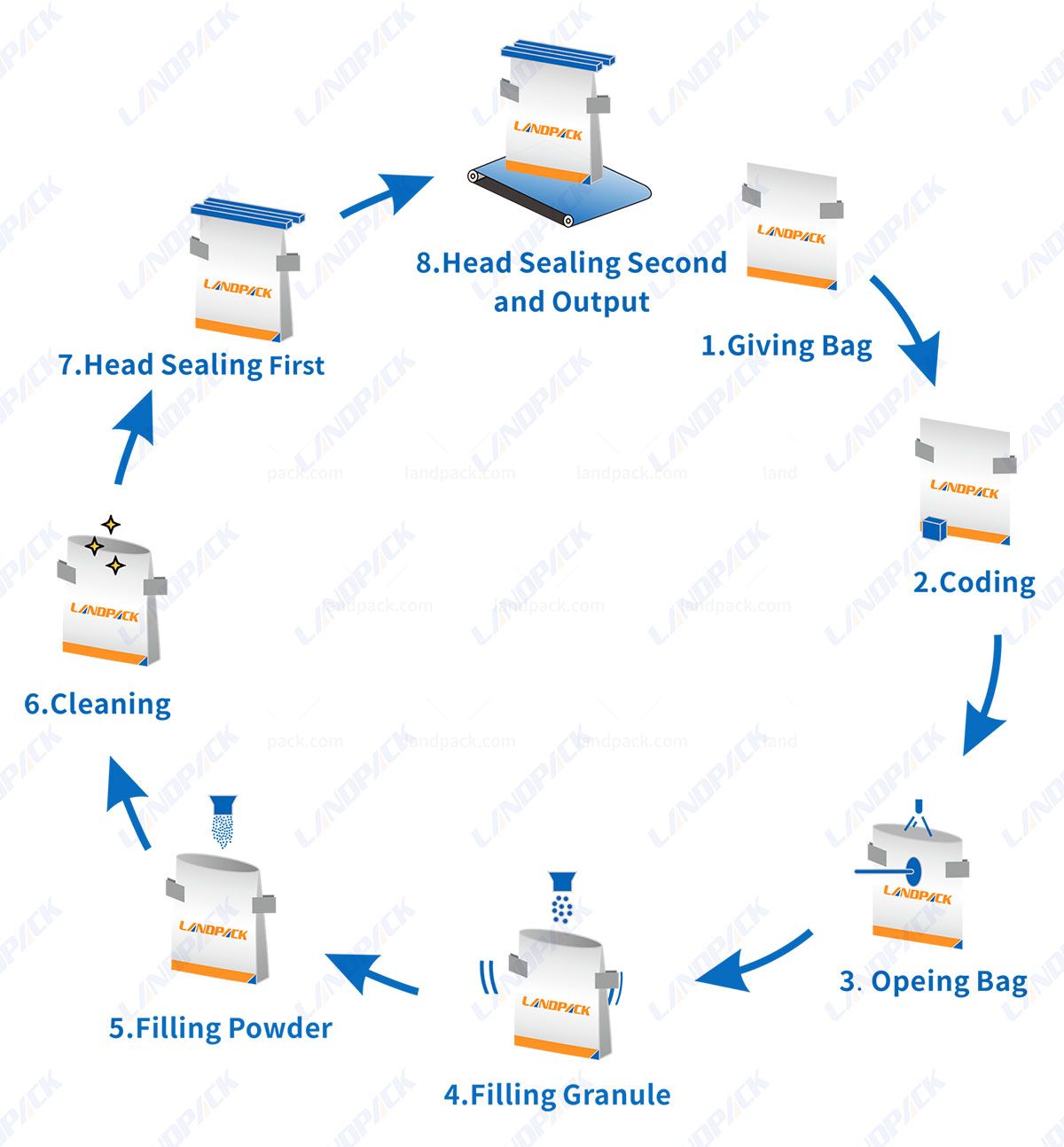

1. Formula Mixing, 2. Granule Feeding, 3. 4-Head Linear Weighing, 4. Secondary Conveying, 5. Powder Feeding, 6. Auger Measuring, 7. Pouch Feeding, 8. Laser Coding, 9. Pouch Opening, 10. Air-Blow Opening, 11. Granule Filling, 12. Powder Filling, 13. Brush Cleaning, 14. First Heat Sealing, 15. Second Heat Sealing, 16. Finished Pouch Output
| Type | LD-8230 | LD-8260 | LD-8300 | LD-8400 |
| Bag Type | 3-side, 4 side sealing bag, doypack, box pouch, zipper pouch, stand up pouch, side gusset bag, etc. | |||
| Bag Size | 150-380mm*80-230mm (L*W) | 150-380mm/140-260mm (L*W) | 150-430mm/180-300mm (L*W) | 200-500mm/270-400mm (L*W) |
| Filling Range | 10g-1000g | 1500g | 2000g | 3000g |
| Packing Speed | 20-60 bags/min | 20-50 bags/min | 10-40 bags/min | 10-25 bags/min |
| Voltage | Standard AC380V+10%, three-phase 50HZ; | |||
| Total Power | 3.75KW | 3.75KW | 3.85KW | 4.5KW |
| Air Consumption | 0.4m³/min | |||

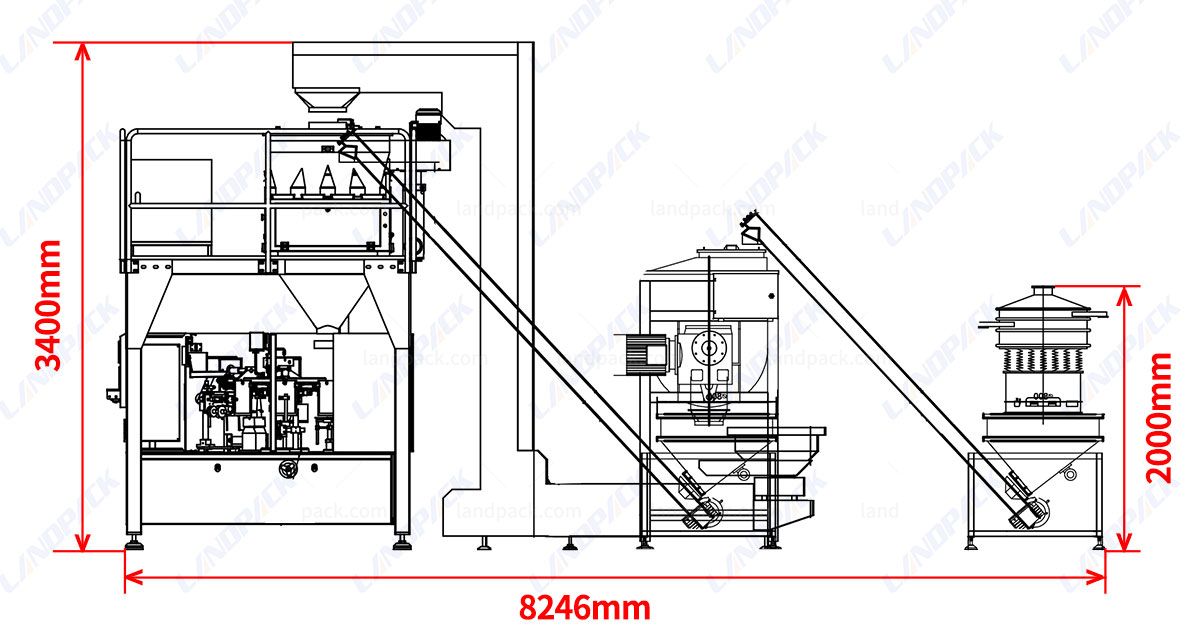

| Dimensions | 1740*1380*1450mm(L*W*H) | 2460*1830*1460mm(L*W*H) | 2260*2200*1520mm(L*W*H) | |
| Machine Weight | 1300KG | 1300KG | 1700KG | 2000KG |

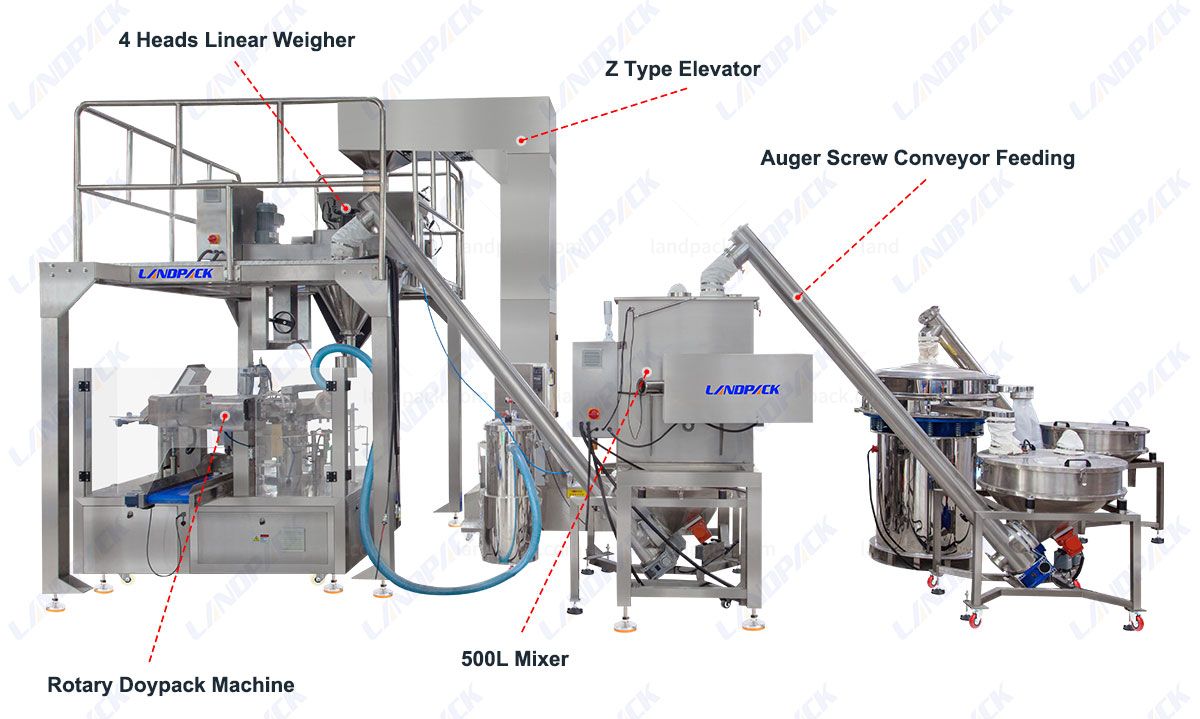

Machine Key Components:
Feature:

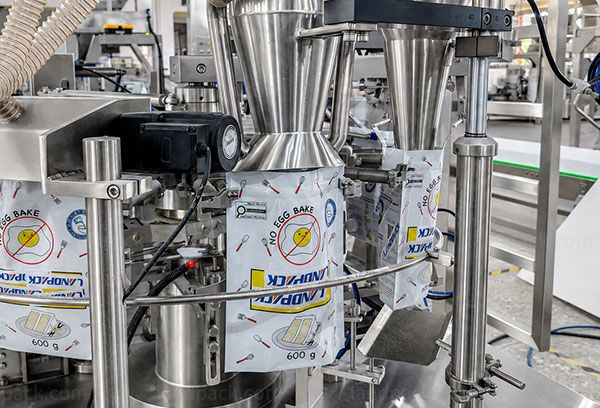

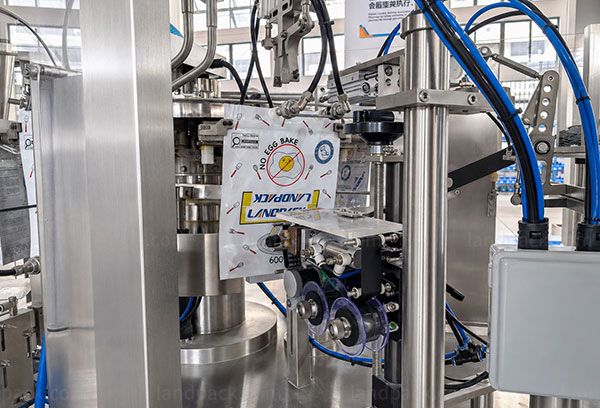

1. LD-8230D rotary premade pouch packing machine completes automatic pouch feeding, opening, filling, sealing and finished product output.
2. Horizontal ribbon mixer blends multiple powder ingredients before packaging to support consistent mixed-product production.
3. Three 120L screw feeding conveyors transfer powder between the mixing, storage and dosing sections with less manual handling.
4. 50L auger dosing system measures fine powder ingredients separately and allows the filling quantity to be adjusted according to the product.
5. Z-type elevator automatically transfers granular ingredients to the 4-head linear weigher for continuous feeding.

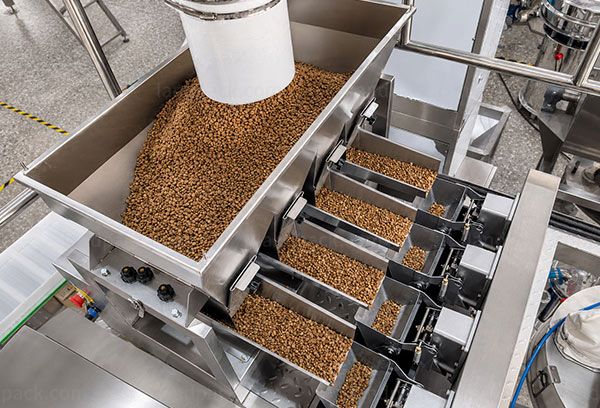

6. 4-head linear weigher provides independent weighing for chocolate chips, nuts, cereal pieces and other free-flowing granular ingredients.
7. Dual filling structure allows powder and granular ingredients to be filled separately into the same premade pouch.
8. Bag-mouth cleaning station helps remove residual powder from the sealing area before heat sealing.
9. Double sealing stations improve the sealing appearance and help maintain reliable pouch closure during continuous production.
