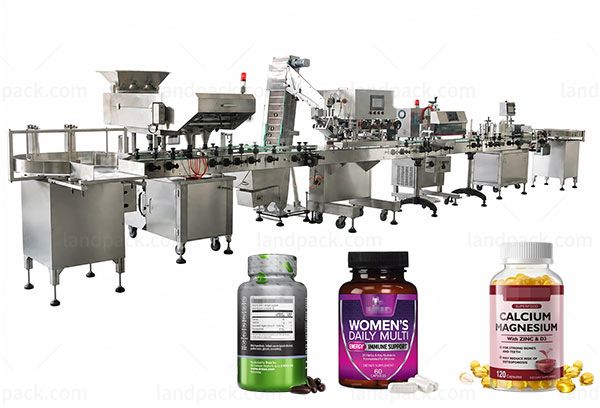

Pharmaceutical Bottle Packaging Line Tablet Medicine Counting Filling Sealing & Labeling Machine

Application:

This machine is suitable for hard capsules, softgel capsules, tablets, pills and other dry solid products packed in plastic bottles. Such as hard gelatin capsules, HPMC capsules, softgel capsules, vitamin capsules, herbal capsules, probiotic capsules, medicine tablets, vitamin tablets, calcium tablets, chewable tablets, supplement tablets and pharmaceutical pills.

Package Type:

Suitable for round plastic bottles with screw caps, induction aluminum foil liners and self-adhesive labels.

Workflow:

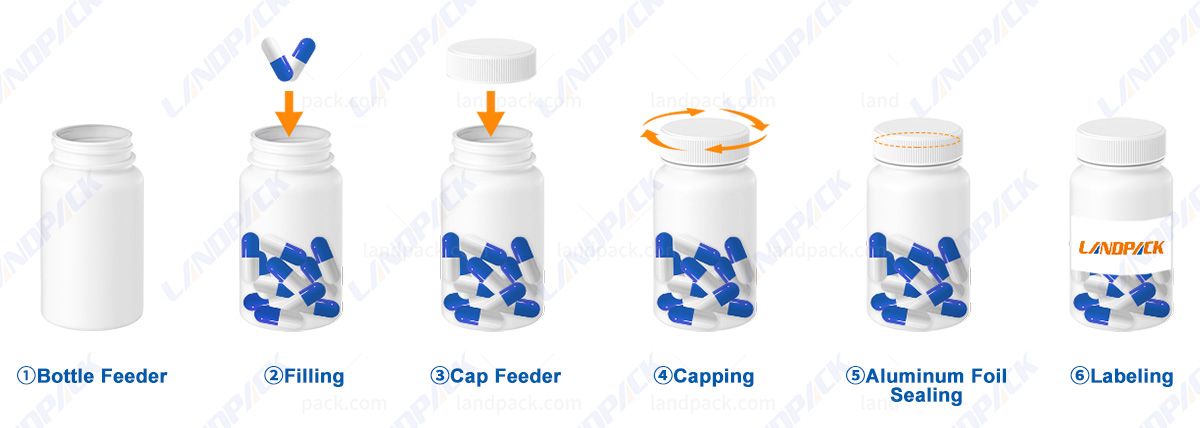

Bottle Feeding → Capsule Counting and Filling → Cap Feeding → Capping → Aluminum Foil Sealing → Labeling → Finished Bottle Output

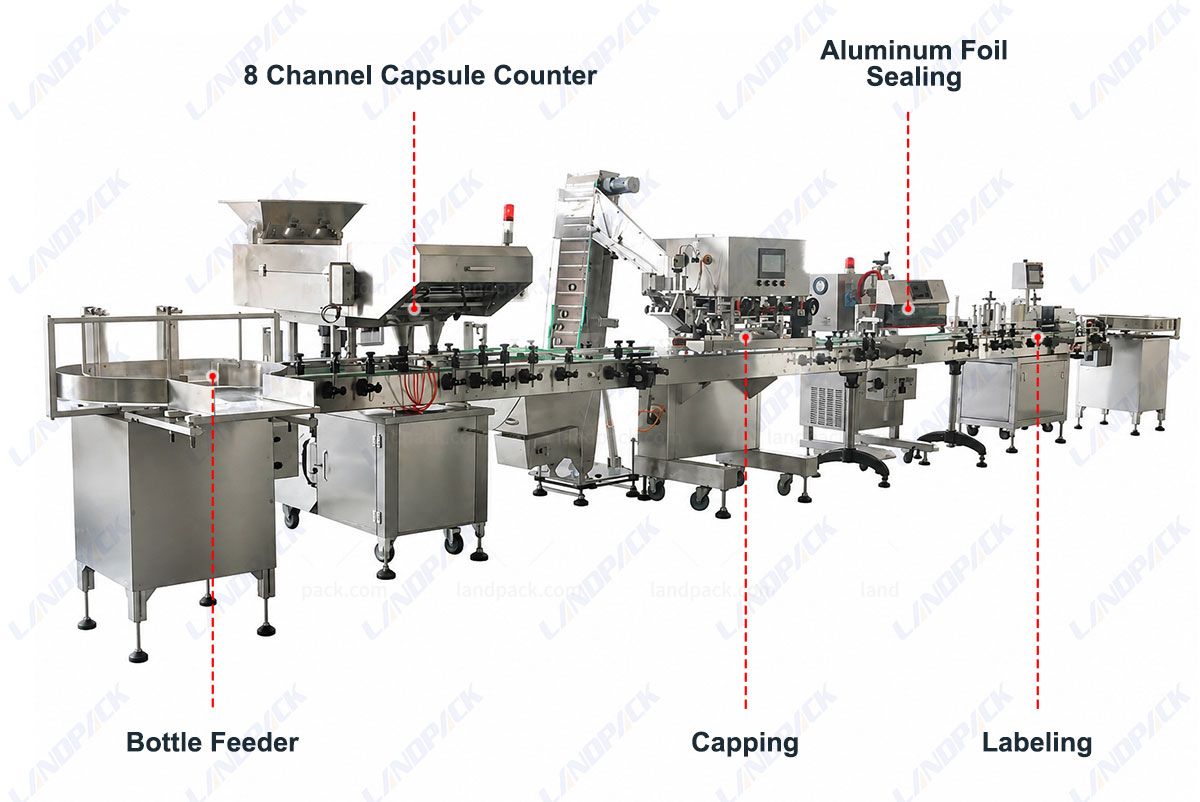

Machine Key Components:

Feature:

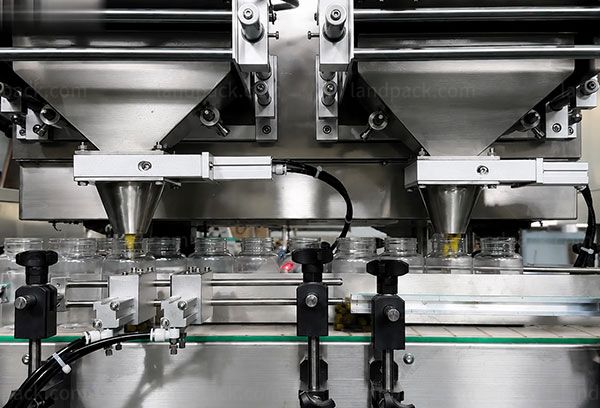

1. The 8-channel counting unit separates and counts capsules or tablets before dispensing the preset quantity into each bottle.

2. The automatic bottle feeder arranges empty bottles and transfers them continuously to the counting and filling station.

3. The cap feeding system automatically sorts and supplies screw caps to the capping station.

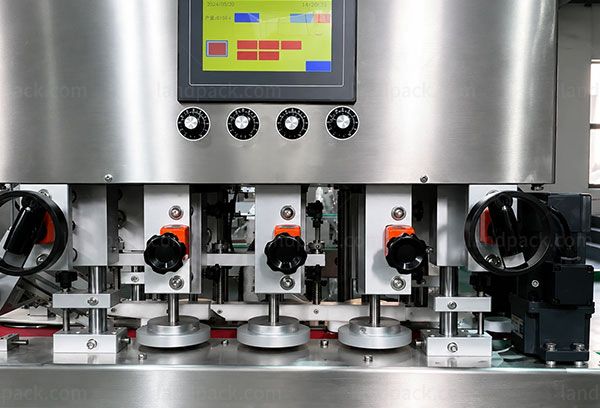

4. The capping unit places and tightens caps after filling to complete automatic bottle closing.

5. The induction aluminum foil sealing machine seals the foil liner inside the bottle cap without direct contact.

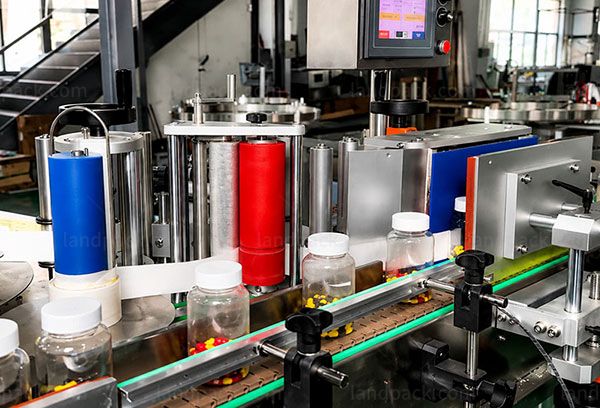

6. The automatic labeling machine applies self-adhesive labels to finished bottles.

7. The integrated conveyor connects each packaging process for continuous bottle transfer and production.

8. PLC and touchscreen control allow operators to adjust counting quantity, conveyor speed and operating parameters.
