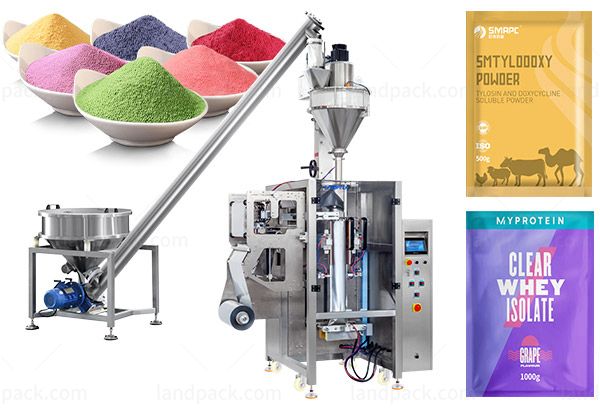

Automatic 4-Side Sealing Bag Powder Vertical Packing Machine
Model: LD-420D
Application:
The LD-420D four-side sealing vertical packaging machine delivers precision and efficiency for industries requiring secure, airtight packaging. Ideal for food, medical, and cosmetic industries, its compact design maximizes workspace efficiency while ensuring durability and low maintenance.
Application:
This automatic powder vertical packing machine is suitable for 4-sided sealing packing for powder materials such as whey protein powder, camel powder, milk powder, protein powder, tea powder, medical powder, chemical powder, flour, and coffee powder.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples:
| Model | LD-420A | LD-520A | LD-620A | LD-720A |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 60-400mm | 60-450mm | 60-500mm |
| Bag Width | 60-200mm | 100-250mm | 65-300mm | 65-350mm |
| Film Roll Diameter | Max.600mm | Max.600mm | Max.600mm | Max.600mm |
| Packaging Rate | 5-60 bags/min | 5-40 bags/min | 5-35 bags/min | 5-30bag/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.620mm | 150-Max.720mm |
| Making bag volume | 1000ml | 2000ml | 3000ml | 5000ml |
| Power Supply | 220V, 50/60HZ, 3KW | 220V, 50/60HZ, 3KW | 220V, 50/60HZ, 3.2KW | 220V, 50/60HZ, 3.5KW |
| Machine Size | 1217*1015*1343 mm(L*W*H) | 1488*1080*1490 mm(L*W*H) | 1488*1180*1550 mm(L*W*H) | 1780*1350*2050 mm(L*W*H) |
1. Food-grade SS304 stainless steel construction ensures safety.
2. Simple operation with Panasonic PLC and touchscreen control.
3. Quick film roll changes thanks to air shaft design.
4. Handles film rolls up to 420mm (max bag width 210mm).

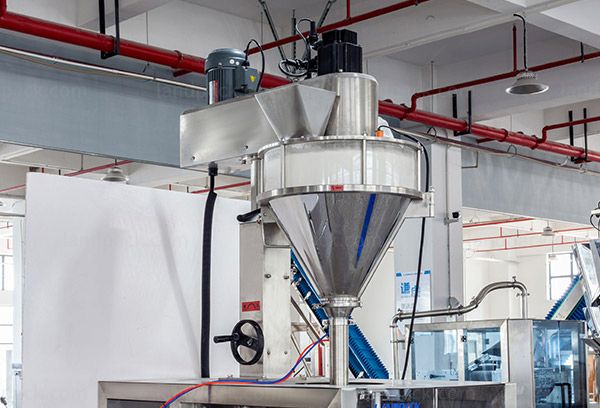

5. 50L servo auger with stirring for precise powder measurement.

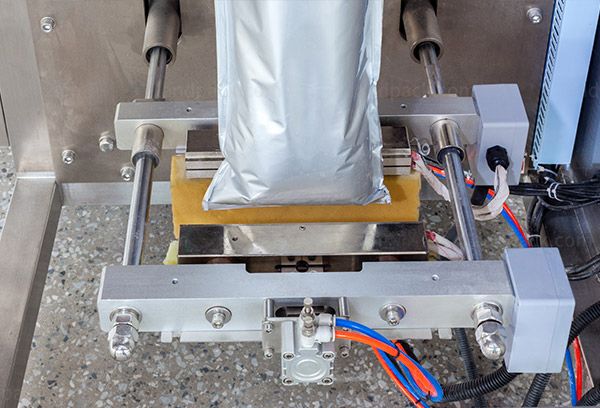

6. Air exhaust system creates neat, flat packaged bags.

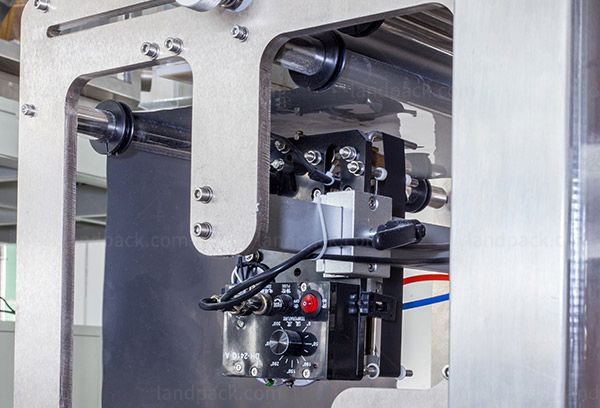

7. Integrated date coder prints automatically on every bag.
8. Space-saving design with easy maintenance access.
We have many customer packaging case videos, please feel free to contact us to obtain your product packaging case videos.
