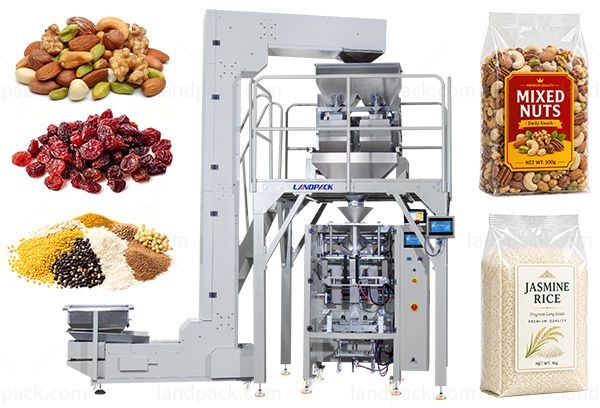

Automatic Nut Packaging Machine Vertical VFFS Block Bottom Bag
Model: LD-620AS
Equipped with a Z-type elevator and weighing system, it automatically completes material feeding, weighing, bag forming, filling, sealing, cutting and finished bag output.
Application:
This Vffs vertical packaging machine is specially designed for granular products packing in a block bottom bag such as peanuts, almonds, cashews, pistachios, walnuts, mixed nuts, roasted peanuts, coated nuts, puffed snacks, crackers, beans, seeds, grains and dried food products.
Application:
This VFFS vertical packaging machine is designed for packing mixed nuts, beans, roasted peanuts, almonds, puffed snacks, pistachios, crackers, cashews, coffee beans, seeds, walnuts, dried fruits, chickpeas, coated nuts, grains and other granular food products into block-bottom bags.
Package Type:
This Vffs vertical packaging machine is specially suitable for block bottom bags, quad seal bags, brick bags, gusset bags and pillow pouches.

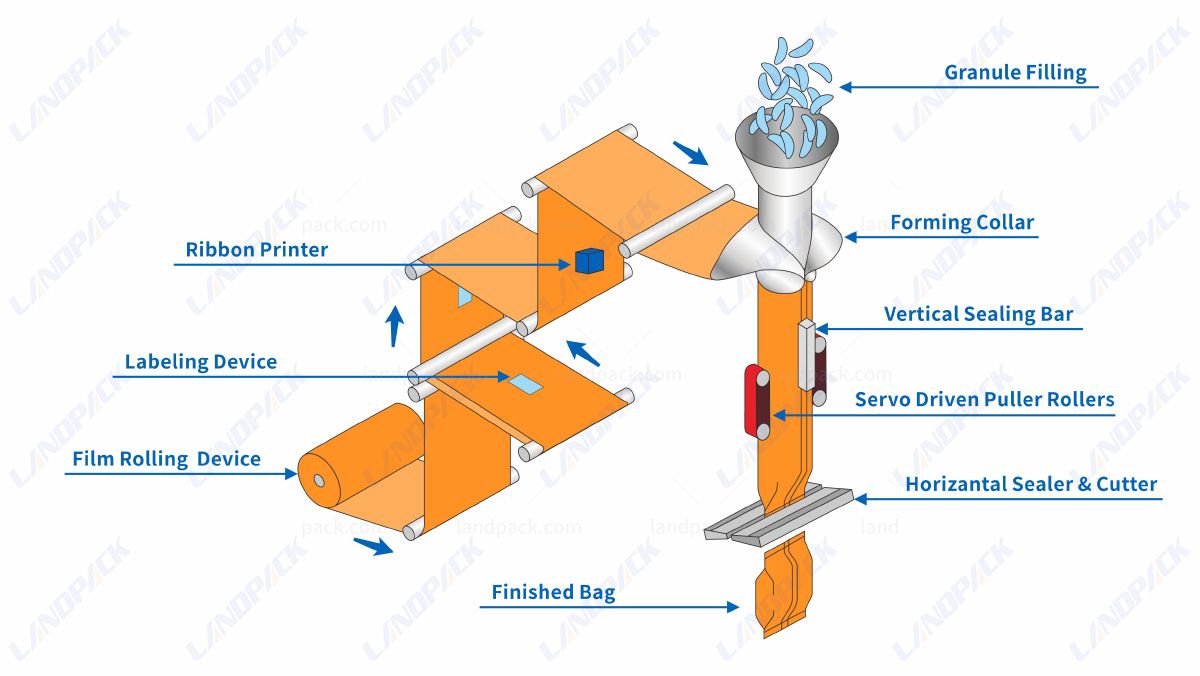

Workflow:
1. Product feeding → 2. linear weigher weighing → 3. Bag forming → 4. Bag filling → 5. Bag sealing → 7. Product output
| Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |

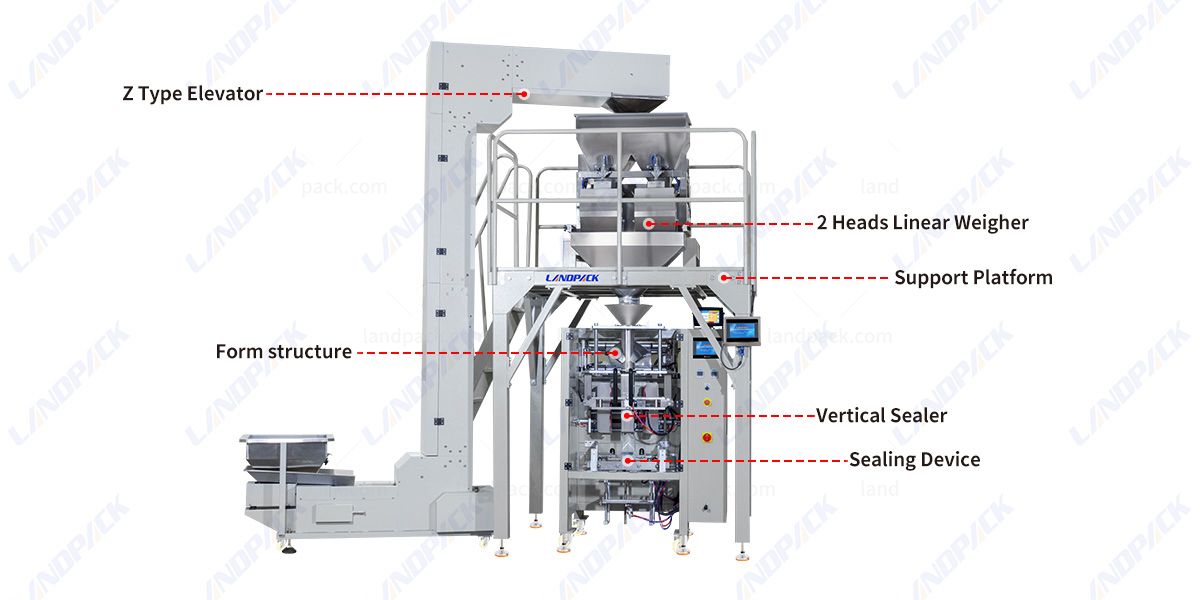

Machine Key Components:
Feature:
1. The Z-type bucket elevator automatically feeds nuts and snacks, reducing manual handling during production.
2. The linear weigher provides fast and accurate weighing for different products and filling weights.

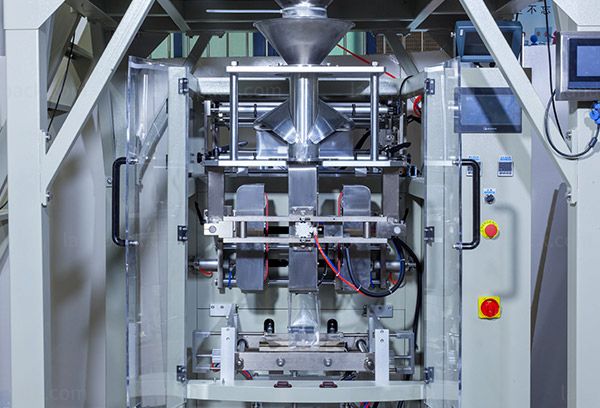

3. The servo-driven film pulling system ensures stable bag forming and consistent packaging results.
4. The block-bottom bag format creates shelf-ready packages with a neat and stable appearance.
5. The quick-release bag former supports convenient cleaning and faster bag-size changeover.

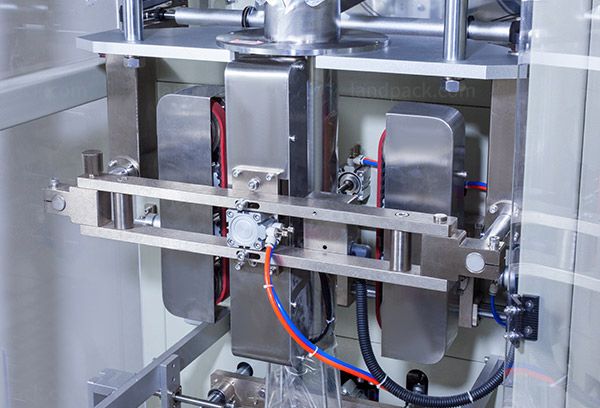

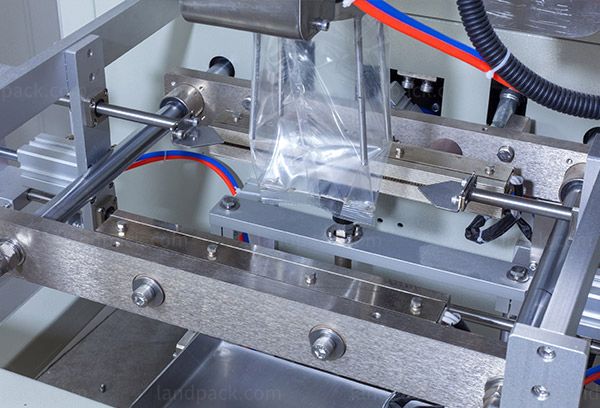

6. The independent temperature control system produces strong and consistent seals for various laminated films.
7. The integrated ribbon printer adds batch numbers, production dates, and expiry dates to each package.
8. Photoelectric film tracking and film-end detection provide accurate positioning, automatic alarms, and reliable operation.
