Automatic Nut Packing Machine Rotary Doypack Filling and Sealing Machine
Model: LD-8230A
Application:
This 8-station pre-made pouch packing machine is designed for flexible packaging of nuts, seeds, granules, dried fruits, pet food, jerky, pickles, snacks, biscuits, chocolate, candies, and other solid or semi-free-flowing products.
Application:
This rotary packing machine is designed for flexible packaging of nuts, seeds, granules, dried fruit, pet food, jerky, pickles, snacks, biscuits, chocolate, coffee, confectionery, and other solid or semi-fluid products.
Package Type:
The rotary pouch packing machine is designed for premade pouch and doypack packaging, including stand-up pouches, zipper pouches, spout pouches, m shape pouches, and other customized pouches.

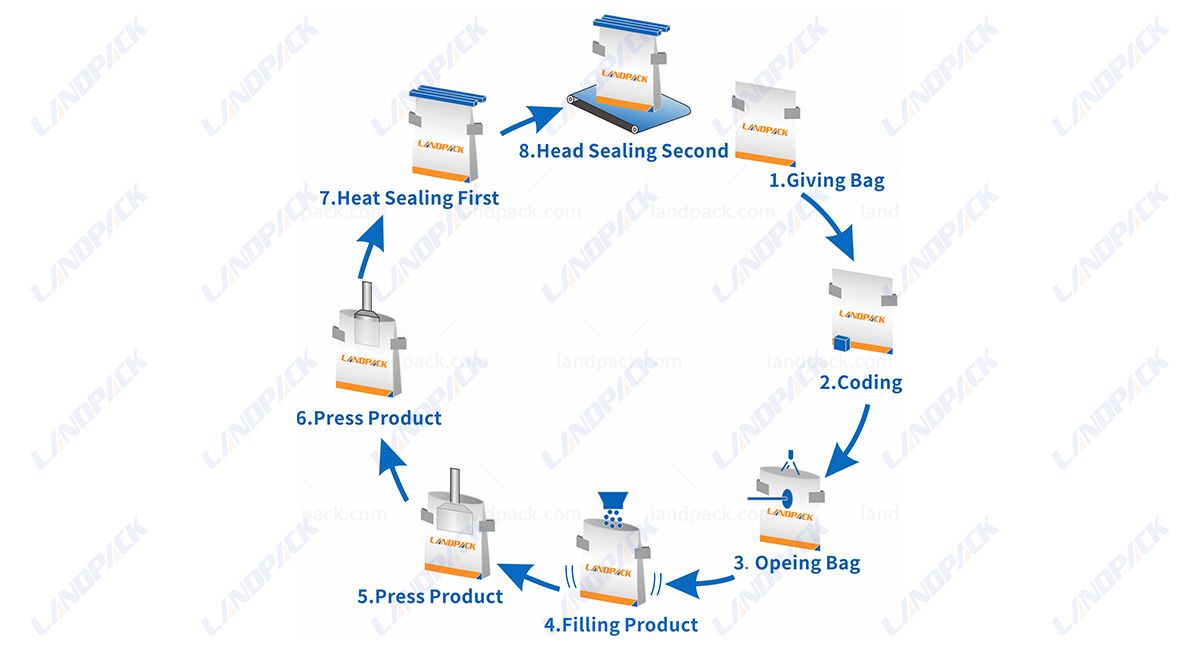

Process Workflow:
1. Giving Bag → 2. Coding → 3. Opeing Bag → 4. Filling Product → 5. Press Product → 6. Press Product → 7. Heat Sealing First → 8. Head Sealing Second
ITEM | LD-8200 | LD-8250 | LD-8300 |
BAG SPEED | max 60 bags/min (Depanding on the quality of the packing film,packaging materials,packaging weight ect.) | ||
BAG SIZE | L100-300mm W70-200mm | L100-350mm W130-250mm | L150-450mm W200-300mm |
BAG TYPE | Pre-made bags,Stand-up bag,Four-side bas,Three-side bag,Special-shaped bag | ||
WEIGHING RANGE | 10G-1KG | 10G-2KG | 10G-3KG |
MEASUREMENT ACCURACY | ≤±0.5~1%， （Depanding on the measurement equipment and materials） | ||
MAXIMUM BAG WIDTH | 200mm | 250mm | 300mm |
GAS CONSUMPTION | 0.8pa 0.3m³/min | ||
TOTAL POWDER/VOLTAGE | 1.5KW 380V 50/60HZ | 1.8KW 380V 50/60HZ | 2KW 380V 50/60HZ |
AIR COMPRESS | Not less than 1 CBM | ||
DIMENSION | L1900*W1400*H1450 | L2000*W1500*H1550 | |
MACHINE WEIGHT | 1300KG | 1500KG | |

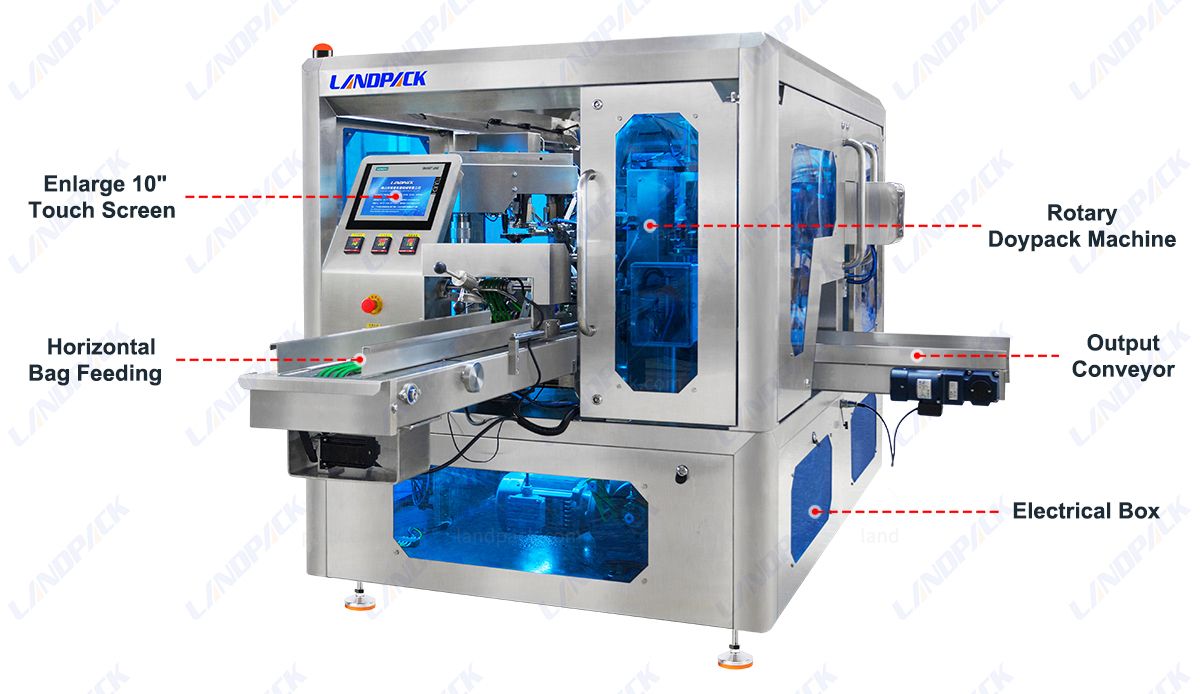

Machine Key Components:
Feature:
1. Utilizes a custom-designed, patent-pending rotary packaging machine.
2. The entire machine frame is constructed of stainless steel with a chamfered, brushed, and polished surface.
3. Eight-station design; bag width can be adjusted via a single button, supporting various bag sizes.
4. Servo-controlled zipper opening allows for easy adjustment of the bag opening angle.
5. Bag punching and rinsing functions ensure neat and aesthetically pleasing sealing.
6. Equipped with a Siemens PLC, 10-inch touchscreen, safety door, alarm system, and independent electrical design.
