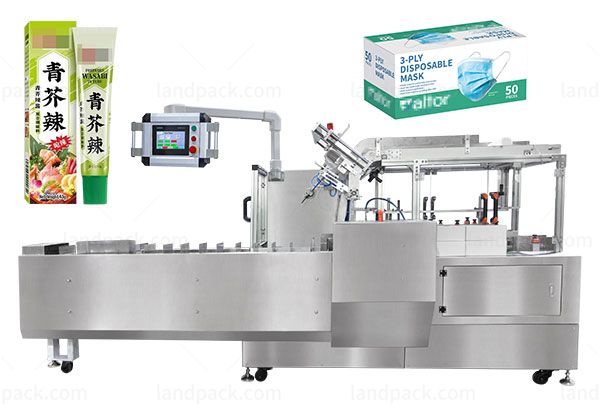

Landpack Cartoning Machine Horizontal Cartoner Packaging Machine
Model: Landpack Cartoning Machine
The Horizontal Cartoning Machine is a fully automatic end load cartoner that integrates carton erecting, product insertion, leaflet feeding (optional), and carton sealing into one continuous process, offering reliable performance, precise control, and fast changeover for multi-product packaging systems.
Application:
This horizontal cartoner is ideal for standardized cartoning packaging across multiple industries. Typical applications include biscuits, chocolate bars, wafer sticks, snack packs, and energy bars; toothpaste tubes, facial cleansers, wet wipes, soap bars, and cosmetic bottles.
Application:
This horizontal cartoner is ideal for standardized cartoning packaging across multiple industries. Typical applications include biscuits, chocolate bars, wafer sticks, snack packs, and energy bars; toothpaste tubes, facial cleansers, wet wipes, soap bars, and cosmetic bottles.
Package Type:
Designed for carton / case / box packaging, including straight tuck-end cartons, reverse tuck cartons, and glued cartons. The machine supports various box sizes with fast mechanical adjustment,
Suitable Products:
A versatile cartoning machine for products requiring horizontal end load cartoning with consistent orientation and protection.:
Food Industry: chocolate bars, cookies, crackers, wafer rolls, granola bars, instant food sachets
Daily Chemical Industry: toothpaste tubes, hand cream, shampoo bottles, soap bars, cosmetic jars
Pharmaceutical & Healthcare: ointment tubes, blister cards, medicine bottles, medical consumables, supplement packs
Workflow:
1. Carton Feeding – Flat cartons are automatically picked and erected into open boxes.

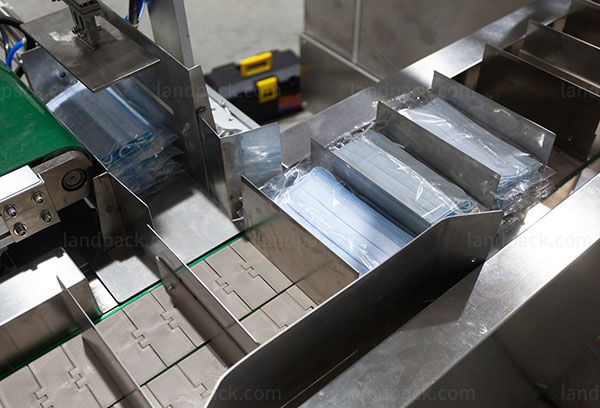

2. Product Infeed – Products are conveyed and synchronized into the loading position.

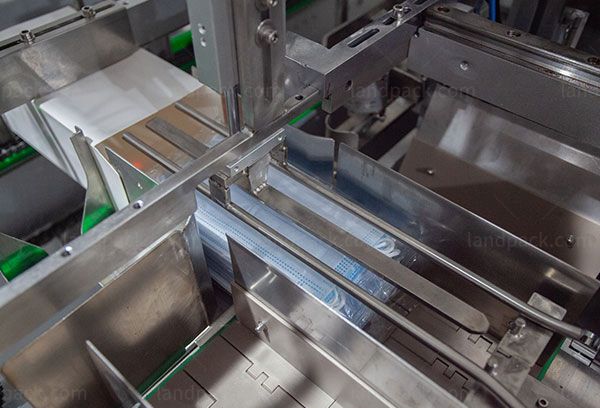

3. Product Insertion – Products are pushed horizontally into the opened cartons.
4. Carton Closing – Carton flaps are folded and sealed by glue sealing.
5. Finished Output – Completed cartons are discharged smoothly for downstream packing
| Model | LD-80A | LD-80L | |
| Cartoning speed | 30-70 Cartons/min | 20-60 Cartons/min | |
| Carton | Quality requirement | 250-450g/m2(According to box dimensions) | |
| Dimension range (LxWxH) | L:90-250mm W:50-200mm H:20-80mm | L:120-360mm W:50-260mm H:20-90mm | |
| Compressed air | Working pressure | ≥0.6Mpa | |
| Air consumption | 20m' | ||
| Power supply | 220V/50HZ | ||
| Motor Power | 8kw | ||
| Machine dimension(Lx Wx H) | 5970mm x 1610mm x 2262mm | 6236mm x 1867mm x 2262mm | |
| Machine weight | 1800kg | 2000kg | |
Machine Key Components:
1. Manual Folding
2. Control Panel
3. Gift Box Pick up
4. Clamp Belt
5. Conveyor
6. Full Servo Drive Case Packer
Feature:
Advanced PLC Control System
Utilizes world-renowned PLC along with electrical elements that have speed control for frequency conversion
Intuitive HMI Interface
Touch-screen control using menu-based operations along with parameter memory and recipe management allows quick set-up and swift changeover of the product.
High-Speed & Stable Operation
The servo-driven mechanism ensures precise placement, smooth operation, and dependable performance in continuous high-speed production.
Automatic Detection & Rejection
The system detects empty cartons and products that are missing and then rejects the defective products
Comprehensive Safety Protection
It comes with overload protection and fault alarms, a live status updates as well as automatic shutdown for security and efficiency.
Flexible Application Capability
Easy to modify to different dimensions and shapes of cartons Ideal for pharmaceutical, food, and everyday-use industries.
