Horizontal Cartoner Automatic End Load Cartoning Machine

Application:

This cartoning machine is widely used for snack bars, chocolate bars, biscuits, soap bars, medical devices, cosmetic tubes, toothpaste, wet wipes, blister packs, sachets, and daily consumer goods that require orderly arrangement and stable carton sealing.

Package Type:

Designed for cartoning applications, this machine is suitable for packing products into pre-folded paper cartons via end or side insertion. It supports straight tuck-end cartons, reverse tuck cartons, and glue-sealed cartons. Compatible with cartons in various sizes and paperboard thicknesses.

Suitable Products:

The horizontal cartoner is designed for stable, high-speed cartoning of regular-shaped products:

Food Industry: chocolate bars, biscuit packs, wafer sticks, candy boxes, cereal bars, snack cakes, flow-wrapped bakery products

Pharmaceutical Industry: blister packs, sachet bundles, strip packs, medicine bottles, ointment tubes, medical test kits.

Daily Chemical & Personal Care: toothpaste tubes, cosmetic tubes, facial cleanser bottles, soap boxes, wet wipes packs, household care products.

Workflow:

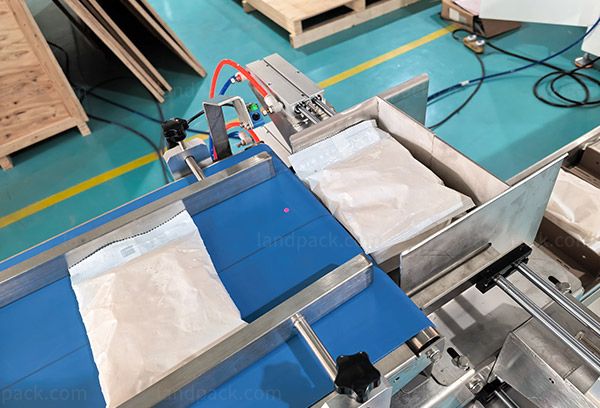

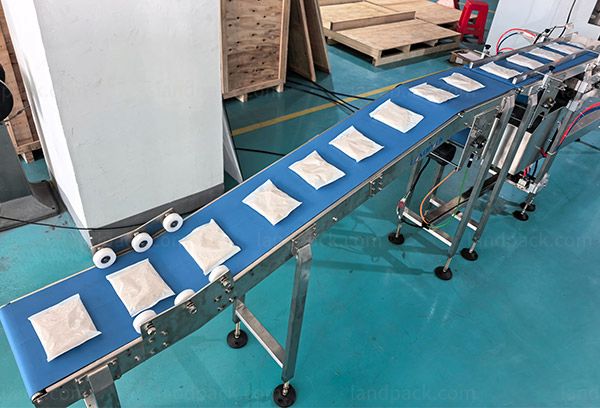

1. Product Feeding – Products are conveyed and aligned into the loading position.

2. Product Grouping – Items are counted and arranged according to carton requirements.

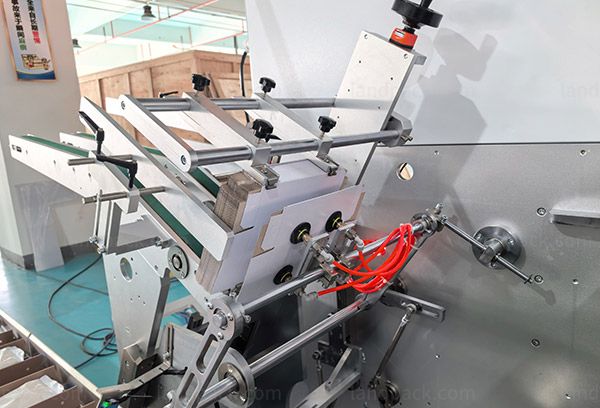

3. Carton Erecting – Flat cartons are picked up and opened automatically.

4. End Loading – Grouped products are pushed into cartons from the end side.

5. Carton Closing – Carton flaps are folded and sealed securely.

6. Finished Output  – Completed cartons are discharged for downstream processing.

Machine Key Components:

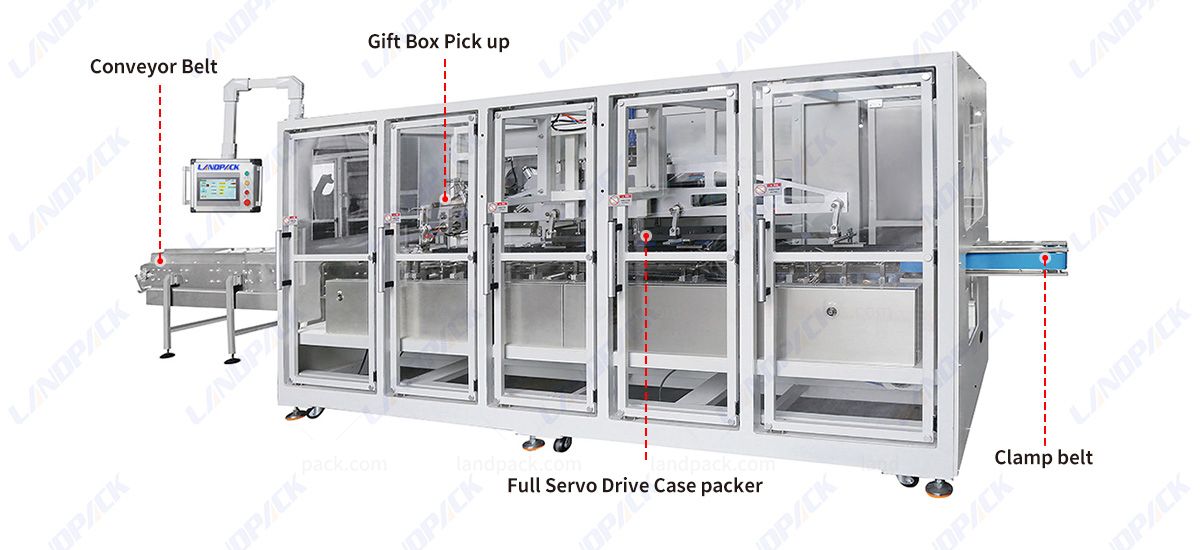

1. Conveyor Belt

2. Gift Box Pick up

3. Full Servo Drive Case packer

4. Clamp belt

Feature:

Reliable Control System

It is equipped with PLC control as well as frequency conversion speed regulation and electrical components from globally renowned brands, which ensures reliable operation and reliability over the long run.

User-Friendly HMI Operation

Human-machine interface, with clear menu navigation and parameter memory and recipe management. This makes setting up adjustments, changeovers, and setup quick and easy.

Automatic Empty-Pack Detection

The built-in detection system detects empty or missing items inside cartons, and then automatically removes them.

Comprehensive Safety & Monitoring

It comes with mechanical overload protection, automated shutdown, real-time display of faults alarm functions, and count-off of the finished product to ensure safety and efficient production.

Stable Performance & Easy Maintenance

Created for continuous, smooth operation, the system has a simple design and logical operation, which reduces the time spent training operators and the everyday maintenance efforts
