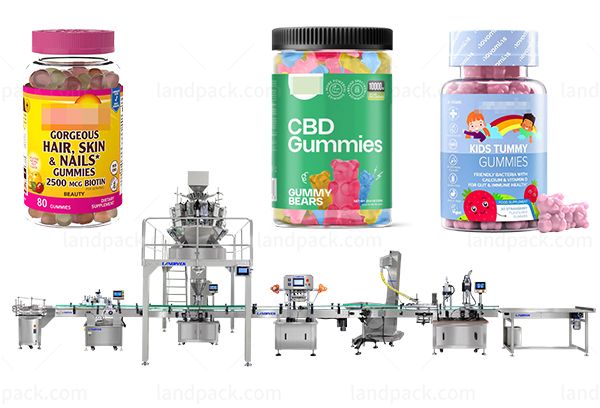

Automatic Gummy Bottle Filling Machine with Aluminum Foil Sealing Labeling Machine
Model: Automatic Granule Filling Line
This versatile line is engineered for a wide spectrum of granular and free-flowing products.
Application:
It expertly handles food items like snacks, chips, nuts, candy, rice, pasta, beans, sugar, coffee, and tea, seeds. It is also perfectly suited for non-food applications, including pet food, small hardware, plastic pellets, and chemical granules.
Application:
It expertly handles food items like snacks, chips, nuts, candy, rice, pasta, beans, sugar, coffee, and tea, seeds. It is also perfectly suited for non-food applications, including pet food, small hardware, plastic pellets, and chemical granules.
Package Type:
This line is highly adaptable, designed to fill a wide variety of rigid containers. It proficiently handles plastic bottles, glass jars, and composite cans in various shapes, from round to square.
Suitable Products:
It is suitable for:
-Snack & Confectionery Products: gummies, popcorn, chips, candy, chocolate, biscuits, banana chips.
-Nuts, Seeds & Dried Fruits: almonds, cashews, peanuts, vegetable seeds, sunflower seeds, dried apricots.
-Grains, Cereals & Frozen Foods: rice, coffee beans, peas, oats, pasta, frozen snacks.
-Non-Food & Industrial Products: pet food, fish feed, hardware, rubber parts, detergent powders.

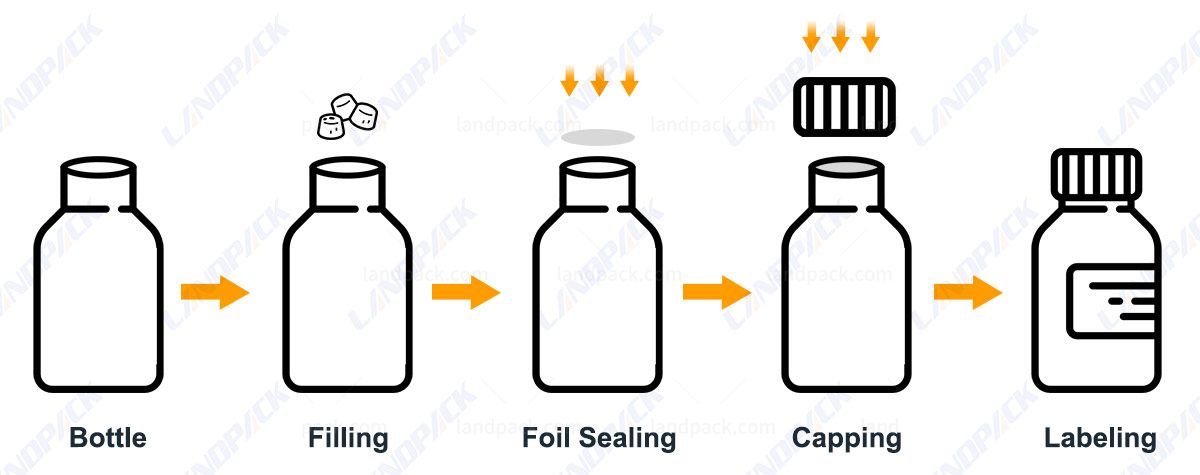

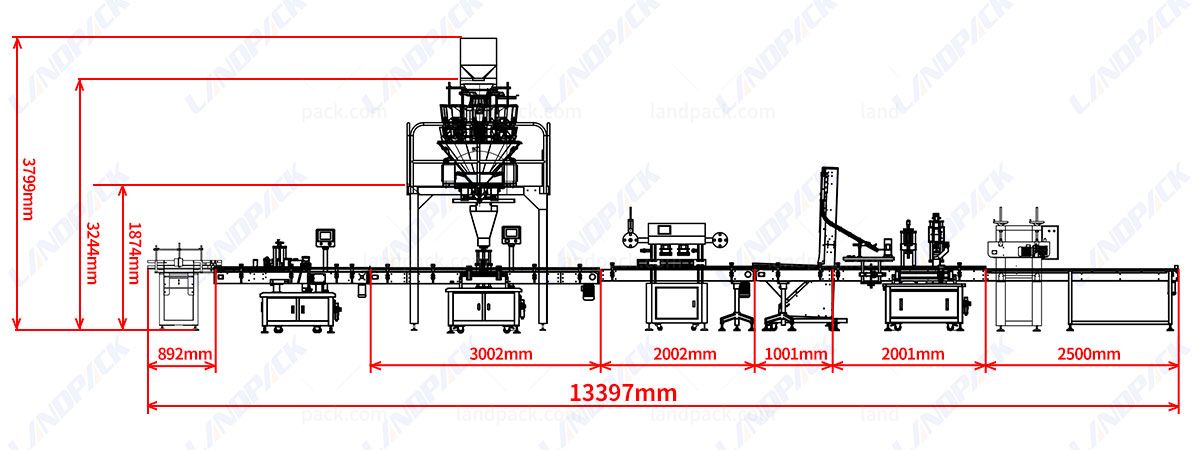

Workflow:
Z-type elevator
Bottle Arranging machine for auto-feeding bottles
Round Bottle Labeling machine auto labeling
Multi-head weigher for accurate weighing and filling;
Double Heads Aluminum Foil Sealing Machine for heat sealing foil on top of the bottle
Sevro capping machine for screw type small bottles
Cap pressing machine for capping big bottles
Collection table
| Round Bottle Labeling machine auto labeling | ||
| Model | LFT-LG-100(Low speed labeling) | LFT-GS-00(High speed labeling) |
| Labeling speed | Max 120bottle/min | Max 140bottle/min |
| Labeling accuracy | ±1mm | ±1mm |
| Label maximum width | 100mm（Could be customized） | 100mm（Could be customized） |
| Size of the object being attached | Φ30mm-Φ100mm（Could be customized） | Φ30mm-Φ80mm（Could be customized） |
| Label ID | Φ76mm | Φ76mm |
| Label OD | MaxΦ330mm | MaxΦ380mm |
| Voltage | 220V、50HZ | 220V、50HZ |
| Power | 1.5KW | 1KW |
| Weight | 250kg | 300kg |
| Multi-heads weigher | |||||
| Model | LD-14 | LD-16 | LD-12 | LD-10 | LD-8 |
| Number of weighing heads | 14 | 16 | 12 | 10 | 8 |
| Per weighing range | 10-2000g | 10-1000G | |||
| Weighing Accuracy | ±0.3-1.5g | ±0.3-1.5g | ±0.3-1.5g | ±0.3-1.5g | ±0.3-1.5g |
| Weighing Speed | 120bag/min | 180bag/min | 100bag/min | 70bag/min | 60bag/min |
| Hopper capacity | 1300ml | 1300ml | 1700ml | 1300ml | 1300ml |
| Hopper type | Double row unrecorded bucket | Double row unrecorded bucket | single row bucket | Double row unrecorded bucket | Double row unrecorded bucket |
| Product default mode | 99 modes | ||||
| Control element | 10.4-inch LCD aiming screen | ||||
| Accuracy weighing and filling | |
| Model | LF-ZP-008 |
| Output | 20-30 bottles/min |
| Bottle diameter | Φ30mm-Φ135mm (customizable) |
| Bottle height | 40mm-200mm (customizable) |
| Power | 750W,220V,50Hz |
| Weight | 200kg |
| Double Heads Aluminum Foil Sealing Machine | ||
| Model | LD-ZS(Double Heads Aluminum Foil Sealing) | LF-LB-2000(Single Heads Aluminum Foil Sealing) |
| Applicable bottle diameter | Φ10-200mm（Could be customized） | Φ10-200mm（Could be customized） |
| Applicable bottle height | H:40-300mm（Could be customized） | H:40-300mm（Could be customized） |
| Speed | 0-30bottle/min | 0-10bottle/min |
| Bottle material | Glass, ceramics, plastics, metals | Glass, ceramics, plastics, metals |
| Voltage | 220V,50HZ | 220V,50HZ |
| Power | 1500W | 1200W |
| Dimension | 1500*800*1750mm | 1200*600*1550mm |
| Autoamtic servo capping machine | |||
| Model | LDBZ-2C(Double heads servo capping) | LDBZ-C(Single head servo capping) | LDBZ-3C(Three heads servo capping) |
| Capacity | 40 Bottles/min | 30Bottles/min | 50Bottles/min |
| Bottle diameter | Φ25mm-Φ100mm（Could be customized） | Φ25mm-Φ100mm（Could be customized） | Φ25mm-Φ100mm（Could be customized） |
| Bottle sealing height | 40mm-200mm（Could be customized） | 40mm-200mm（Could be customized） | 40mm-200mm（Could be customized） |
| Power | 2.5KW | 2KW | 3KW |
| Voltage | 220V、50HZ | 220V、50HZ | 220V、50HZ |
| Air pressure | 0.5-0.7Mpa | 0.4-0.6Mpa | 0.7-0.9Mpa |
| weight | 350kg | 300kg | 400kg |

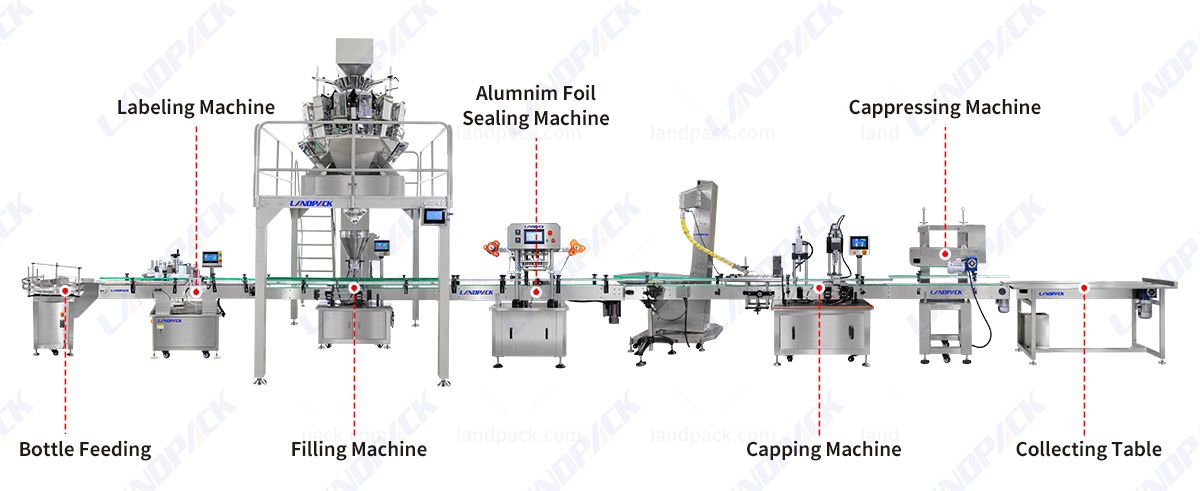

Machine Key Components:
1. Bottle Feeding
2. Labeling Machine

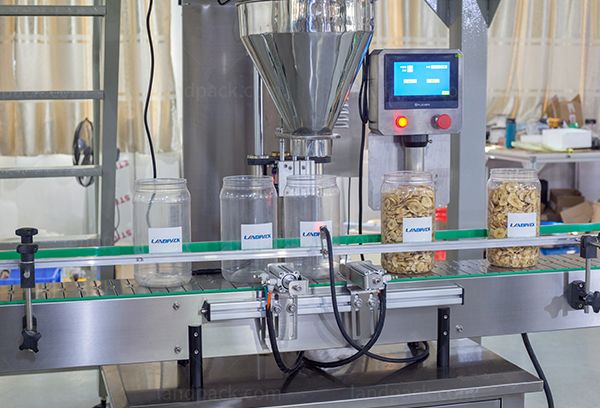

3. Filling Machine
4. Alumnim Foil Sealing Machine
5. Capping Machine
6. Cappressing Machine
7. Collecting Table
Feature:

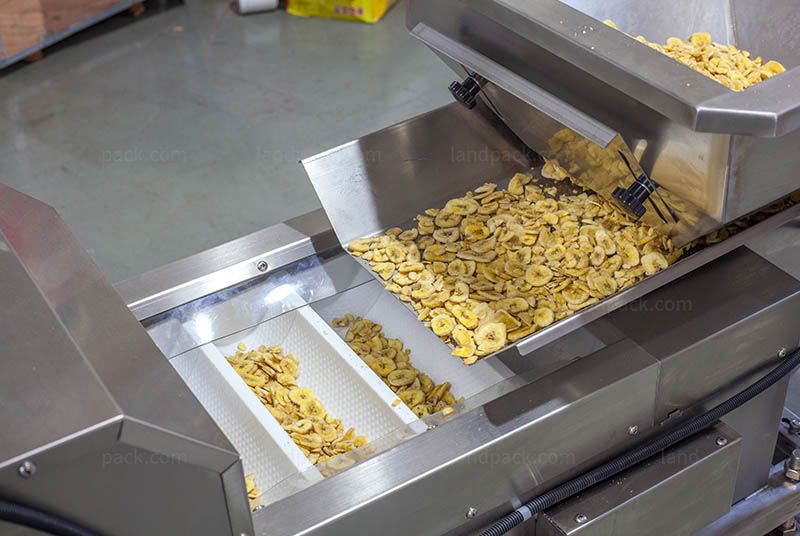

Z Type Material Conveyor Lifts gummy bears smoothly from the feeding station to the weighing hopper without causing damage or sticking. The Z-type design saves floor space and ensures a continuous, efficient material supply. |  |

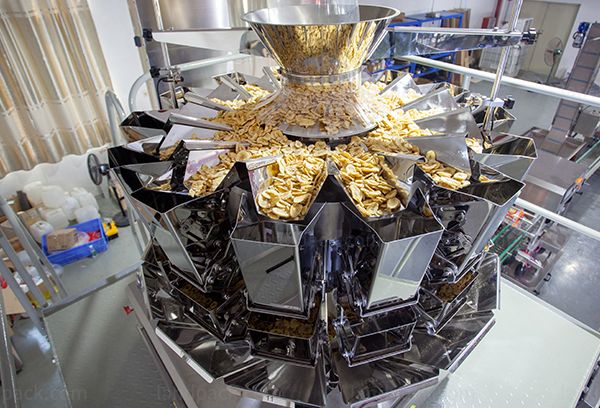

 | Multi-head Weigher Experience exceptional precision and speed. Our multi-head weighers ensure high-accuracy portioning for granular and irregular products, minimizing waste and maximizing your production efficiency. |

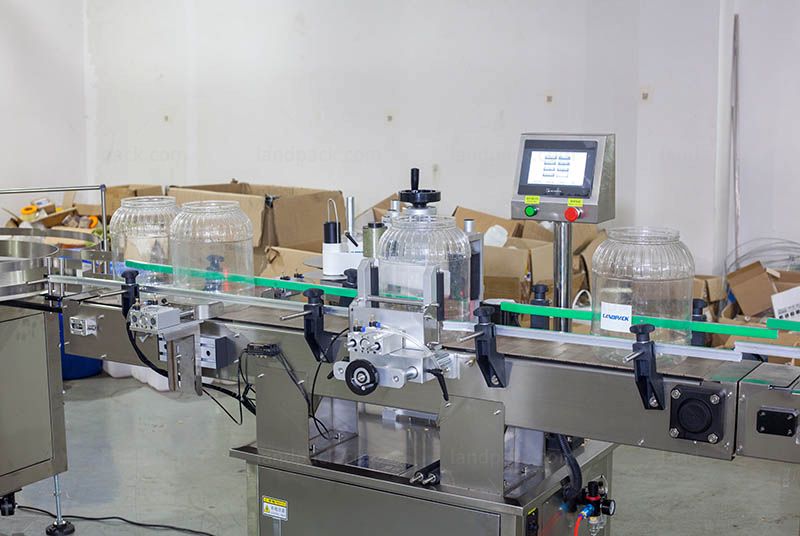

Labeling Machine Achieve flawless presentation every time. Our advanced labeling systems offer high-speed, precise application for various container types and sizes, ensuring your product stands out with a professional finish. |  |

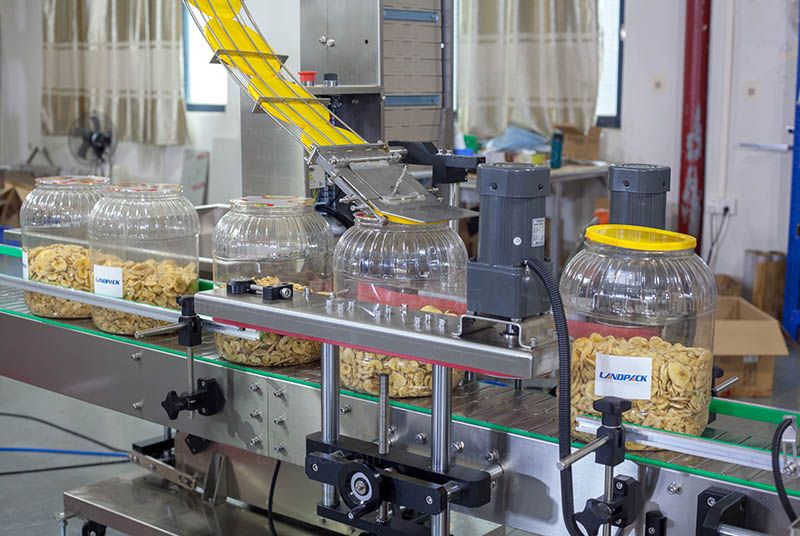

 | Capping Machine Secure a perfect, reliable seal. This machine automatically applies and tightens caps with consistent torque, protecting your product integrity and ensuring a leak-proof finish for bottles and jars. |
Control Panel Smart touch-screen interface allowing easy parameter setting, production monitoring, and real-time adjustment. User-friendly design reduces operator training time. |  |

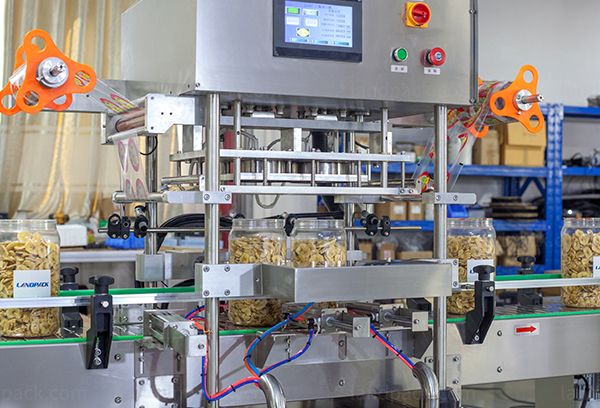

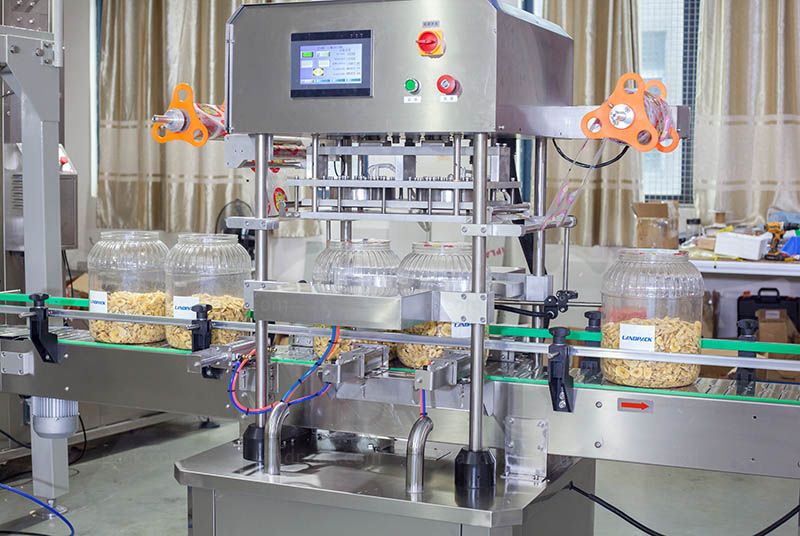

 | Aluminium Foil Sealing Machine Lock in freshness and ensure tamper-evidence. This machine uses induction heat to create a hermetic, leak-proof seal with foil liners, protecting your product's integrity and extending its shelf life. |
