Automatic Robot Case Packing Machine With Palletizing System
Model: Robot Case Packing Machine
The Robot Case Packer With Palletizing System is designed for high-speed, precise carton packing and palletizing.
Application:
It is ideal for industries requiring automatic case packing boxed products, including food, beverages, daily chemicals, pharmaceuticals, and household products that are packed in boxes. This integrated system improves efficiency, reduces labor, and ensures safe, stable handling for large-scale production.
Application:
It is ideal for industries requiring automatic case packing boxed products, including food, beverages, daily chemicals, pharmaceuticals, and household products that are packed in boxes. This integrated system improves efficiency, reduces labor, and ensures safe, stable handling for large-scale production.
Package Type:
Engineered for maximum versatility, our system seamlessly handles a wide array of flexible packaging, including stand-up pouches (Doypack), flat bags, gusseted bags, and pillow pouches. Whether containing liquids, powders, or granules, the system ensures precise orientation and damage-free handling for all pre-made bag types.
Suitable Products:
This Robot Case Packer With Palletizing System is extensively used in the food, daily products that are already packed in boxes.
Food: cakes, milk, snacks, chocolate, tea bags, coffee, etc.
Daily Products: tissue, facial mask, toothpaste, crayons, etc.
Medical Supplies: mask, syrup, medicine, condoms, adhesive bandage, etc

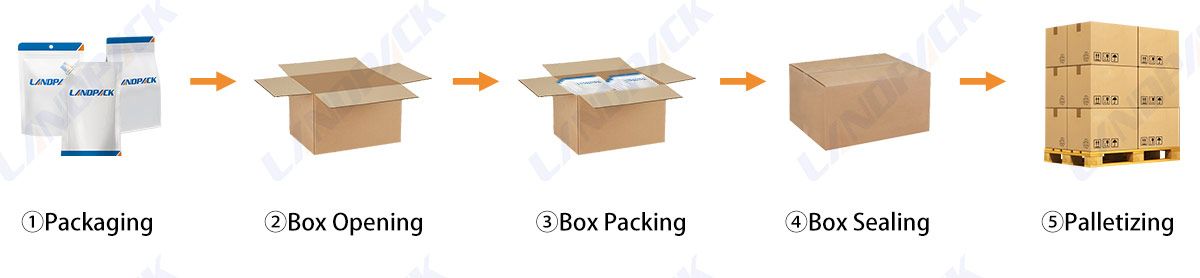

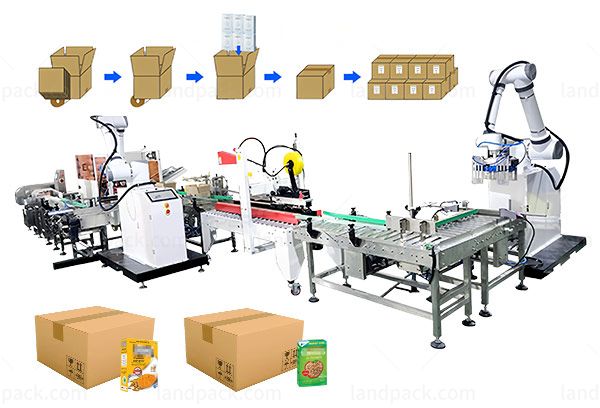

Workflow:
1. Put in boxed products
2. Transport Materials
3. Accumulated Materials
4. Folding Cardboard Box
5. Tray Suction
6. Put in the cartons
7. Sealing the cartons
8. Tray Suction (Carton Handling)
9. Pallet Stacking
| Carton erecting machine | |||||
Carton opening speed | 10-12 cartons/min | ||||
Carton size range | L: 270-450*W: 150-400*H: 100-400mm (Min and max cannot exist at the same time) | ||||
Power supply | 220V, 50/60Hz, 1 Phase | ||||
Power | 2400W | ||||
Adhesive tape width | 48/60/75mm | ||||
Carton storage quantity | 80-100pcs(800-1000mm) | ||||
Air consumption | 450NL/min | ||||
Air compressing | 6kg/cm³ | ||||
Discharge table height | 600+30 mm | ||||
Machine size | L2100*W2100*H1450mm | ||||
Machine weight | 450Kg | ||||
| Automatic Carton Packing Machine | |||||
Model | LD-B8 | LD-B18 | LD-B30 | LD-B42 | LD-B48 |
Capacity | 480case/h | 1100case/h | 1800case/h | 2500case/h | 2800case/h |
Air consumption | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ |
Power | 3.7KW | 3.7KW | 4.5KW | 4.5KW | 5.2KW |
Suitable products | Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized) | ||||
Packing way | Paper carton packer, plastic boxes(customized) | ||||
Packing method | Side push, drop, servo, sprocket, robot, spider hand(customized) | ||||
| Carton Box Case Sealer | |||||
Voltage | 220V, 60HZ | ||||
Table height | 620-900mm | ||||
Tape | W: 48-79mm | ||||
Carton size | L: 200-600*W: 150-500*H: 150-500mm | ||||
Machine weight | 165KG | ||||
Machine Key Components:
1. Feed Port
2. Case Erecting Machine
3. Folding and Sealing Machine
4. Low Temperature Heating Plate
5. Suction Cup Bracket
6. Robot Palletizer
Feature:

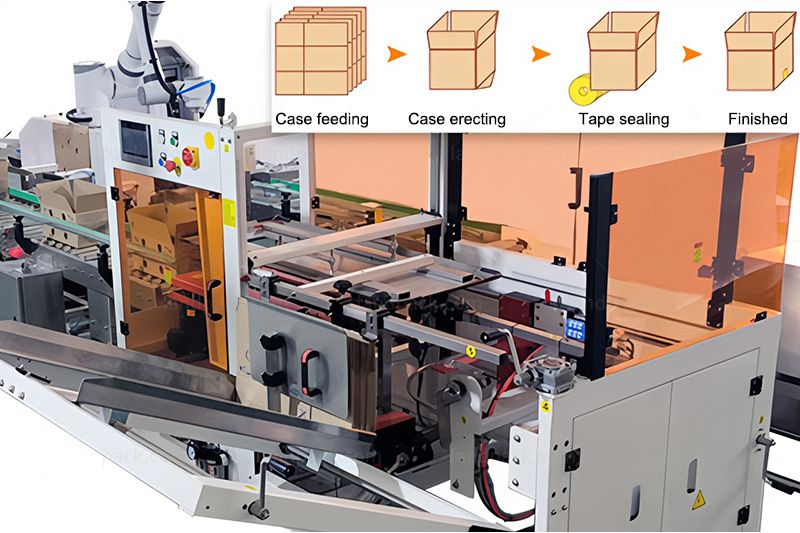

Carton Erector It can be opened independently to save manpower, or combined with other equipment for assembly line operations. |  |

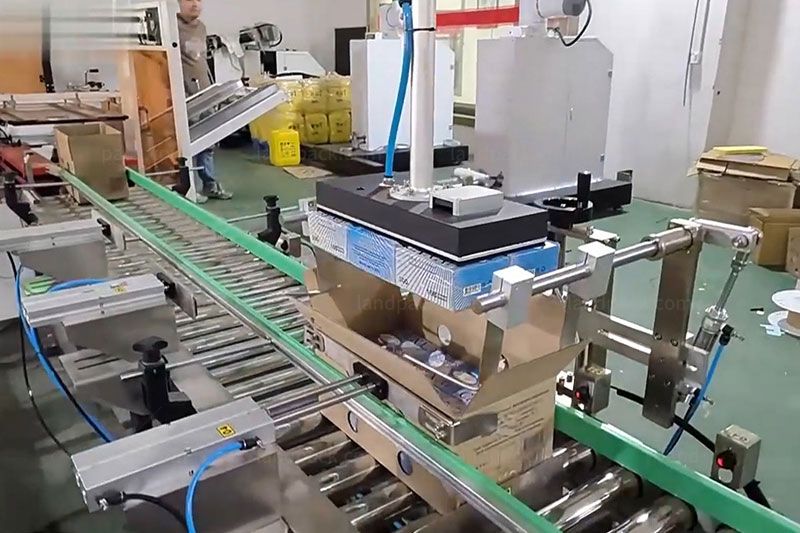

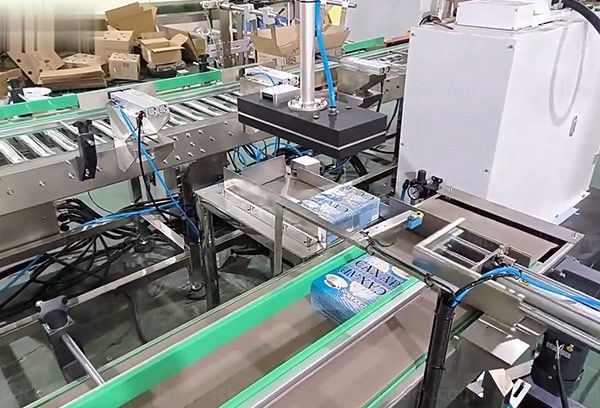

 | Case Packing Robot Smart robotic arm grabs finished boxed products and places them neatly into cartons, fast and accurately. |

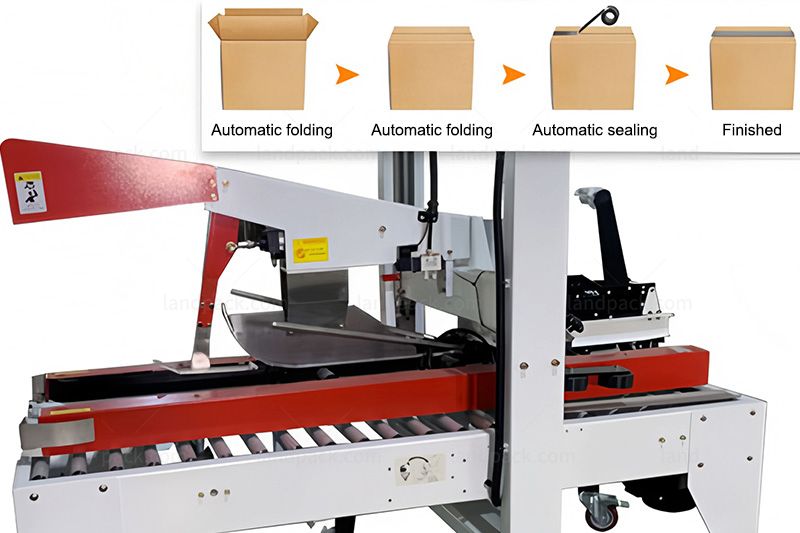

Case Sealer The folding system switch is sensitive, and the guide rod can adjust its position according to the size of the cardboard box |  |

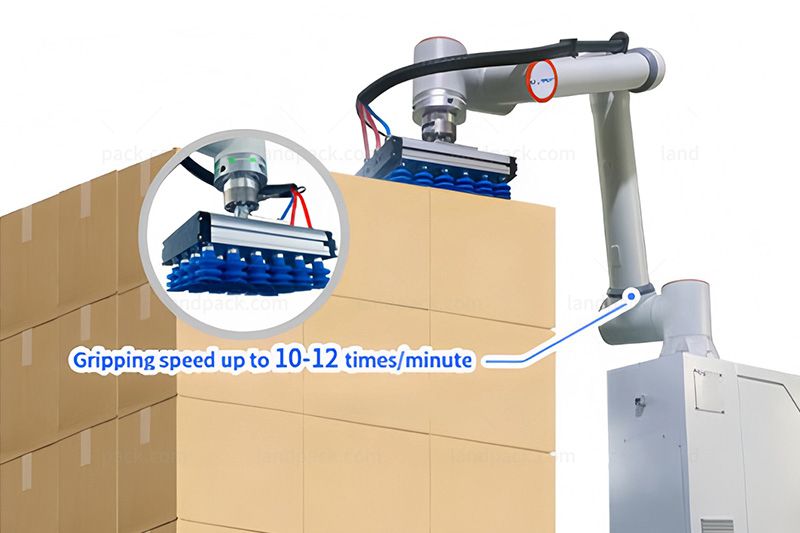

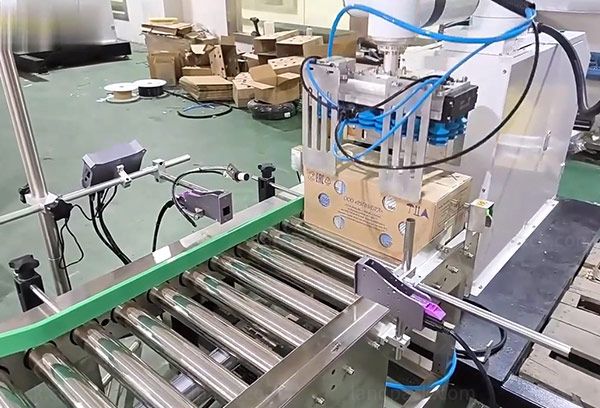

 | Robotic Palletizer * Articulated arm robots have a high degree of freedom and are suitable for almost any trajectory or angle * Suction cups can be switched according to the shape and size of the product shape and size. |
